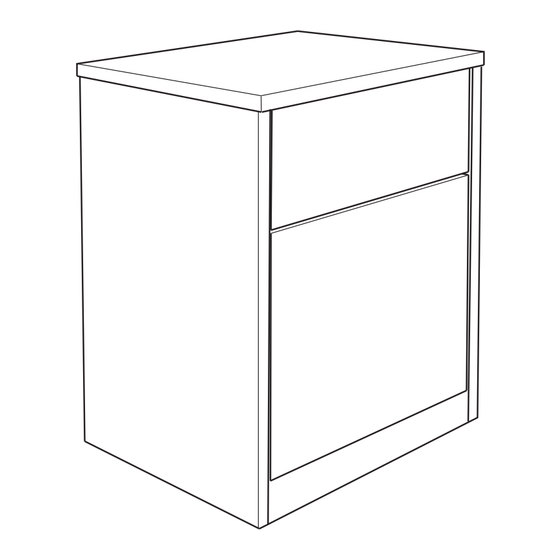

Bedside Table
Bedrooms
Un-Clad Option

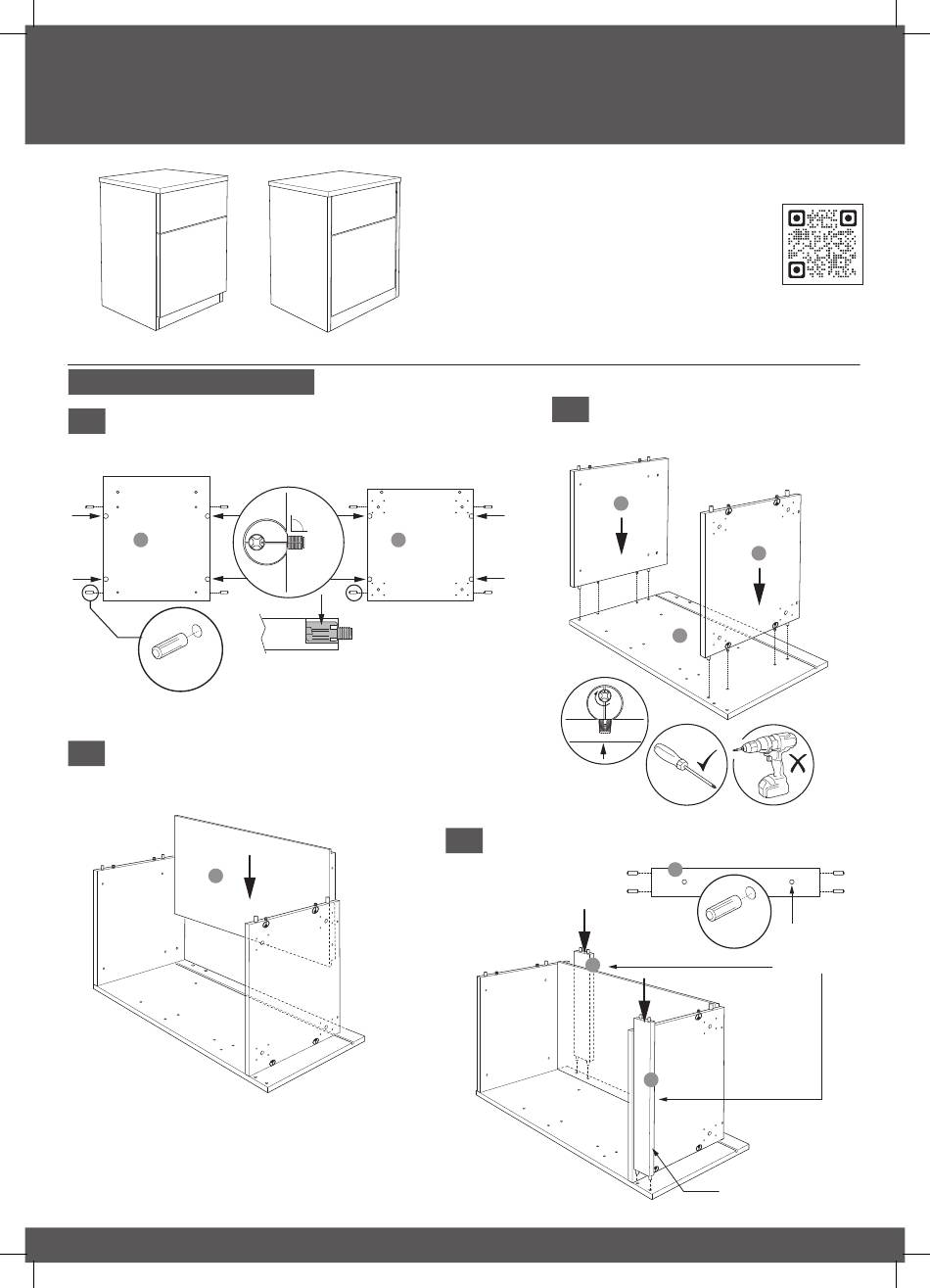

Assembly
1
Fit cams and dowels to the top and base panels (A&B).
A
Top x1
Dowel
x8
Note: Make sure back panel (D) locates into the groove
3
in the side panel.
D
HD427013
Clad Option
90°
B
Base x1
Cam
x8
Note: Make sure cams are
fully located into the panel.
Ensure packaging is disposed of in a safe environmentally friendly way
Follow the Bedroom Installation Manual for
all aspects of cabinet installation. A copy of
this is available from your local Howdens
depot or by scanning the QR code.
Assemble top/base panel to side panel (C).
2
Turn cams to lock panels together.
Note: Cams should be facing outwards.
A
x4
4
Fit back rail and plinth (E).
E
LEAFBST
Important Notes:
B
C
Plinth/Back Rail x2
E
Dowel
x8
Note: Holes are
on the back face
of the rails
E
Finished edge facing
towards the bottom
