Howdens HYH1335 Quick Manual

300, 400 & 500mm Pull Out Larder
1 8 kg
1 8 kg
1 8 kg
1 8 kg
1 8 kg

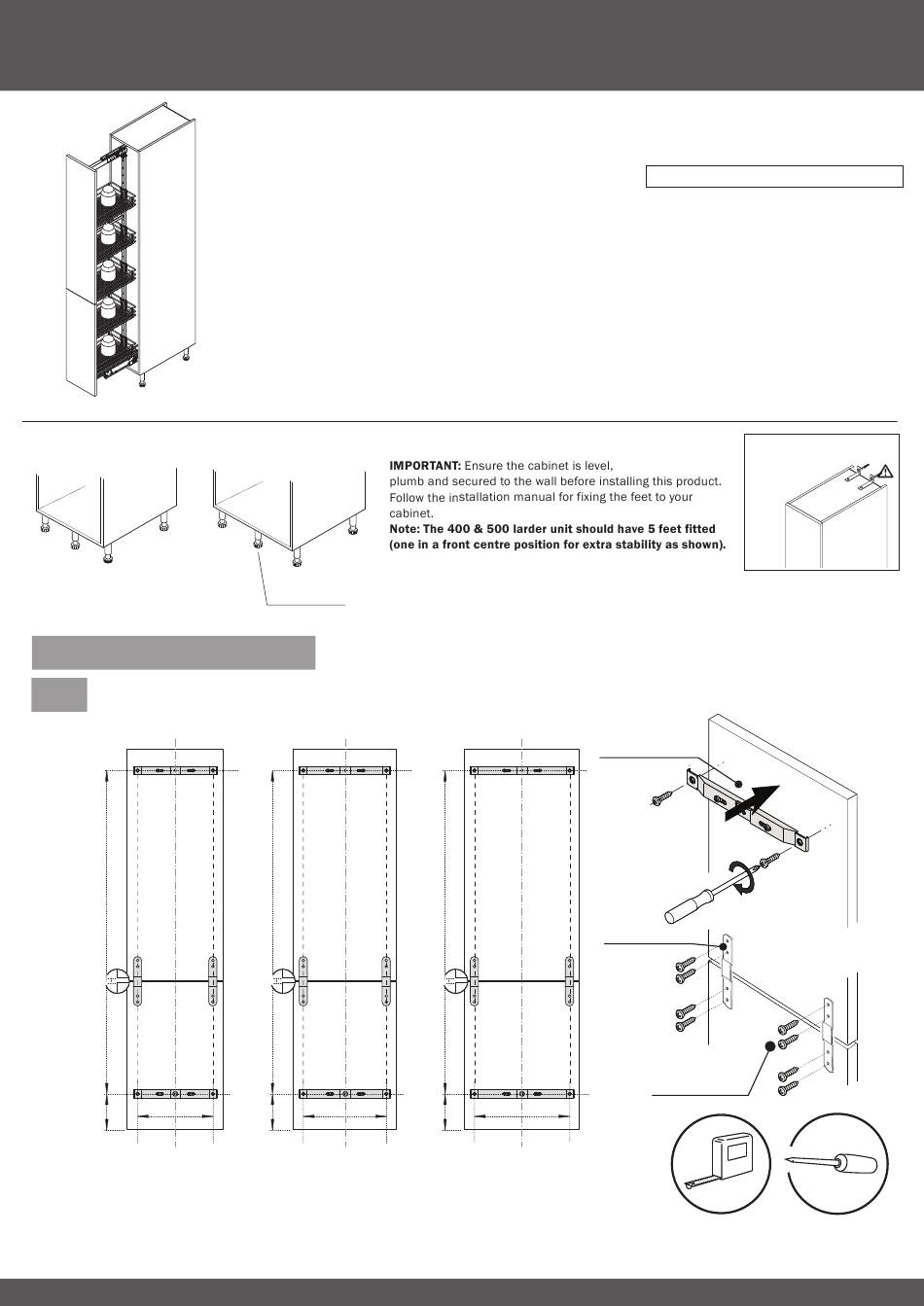

Assembly

1
300 Door
1536mm
2mm
166mm (Standard)
188mm (Framed)
232mm
HD516020
For five piece door constructions , care should be taken when fixing screws through into the back of the door
The Pull-Out runners will require adjusting once baskets are loaded, as weight distribution will affect the closing action
400 & 500 larder
additional foot
400 Door
1536mm
2mm
164mm/
188mm
325mm
Ensure packaging is disposed of in a safe environmentally friendly way
We recommend the larder door handle is fitted horizontally
MAKE SURE UNIT IS SECURED TO THE WALL BEFORE USING THE PULLOUT LARDER
500 Door
1536mm
2mm
164mm/
188mm
425mm
44010850
HYH1335/1336
Do not use a power driver for this product installation
18kg maximum load per basket
Secure the unit to the wall using suitable
wall fixing screws through the bracket
supplied
Note: Be aware of handle screw positions when
fixing the door straps. For integrated handle
ranges the door straps will need to be placed
off centre.
Door Bracket x2
Door
Strap x2
Screw x12
(4.5x16mm)

Important Notes:

Spike using a
bradawl
HYH1335/HYH1336
