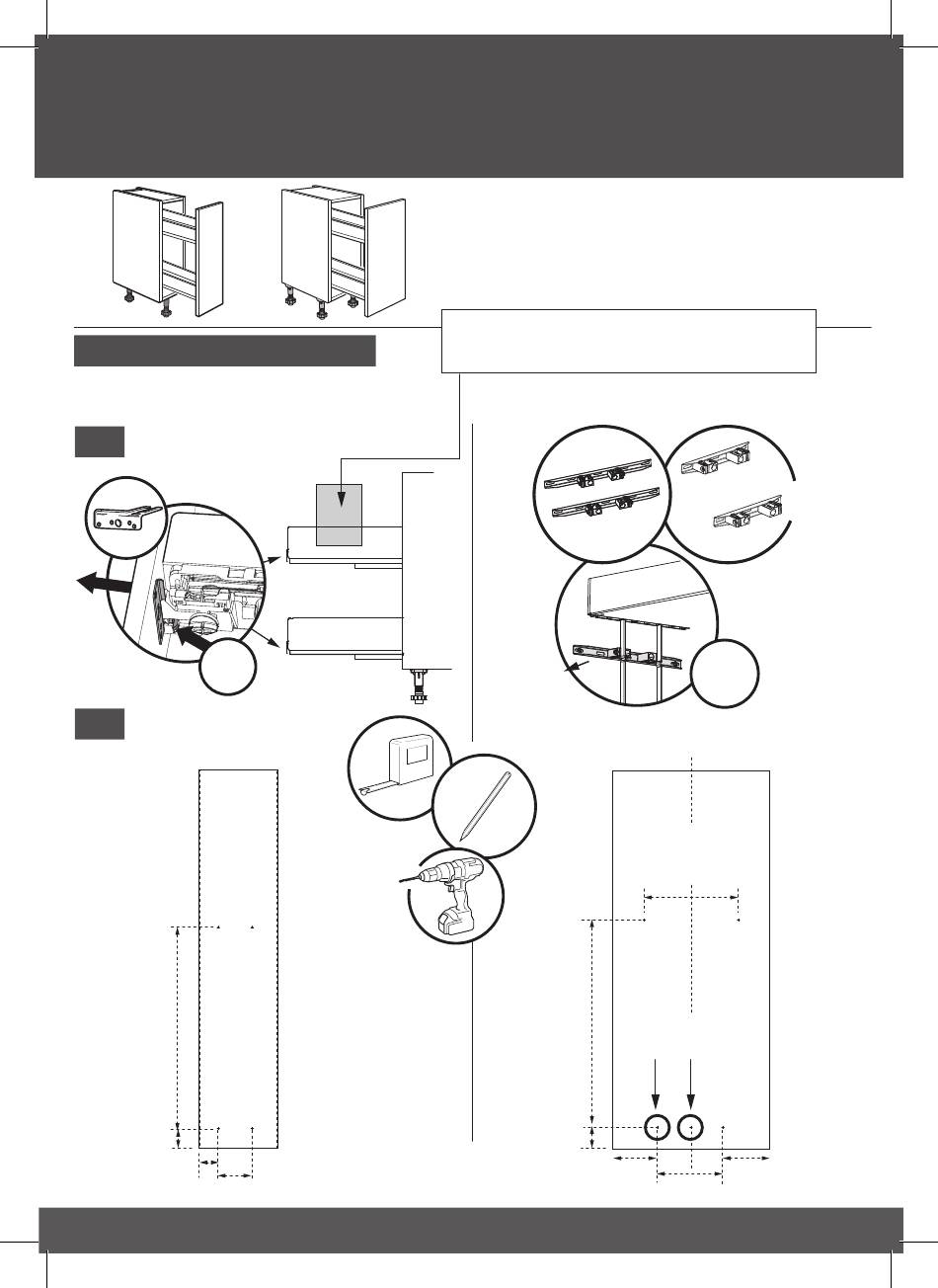

150, 200 & 300 Base Pull-Out
Frontal Fixing & Adjustment

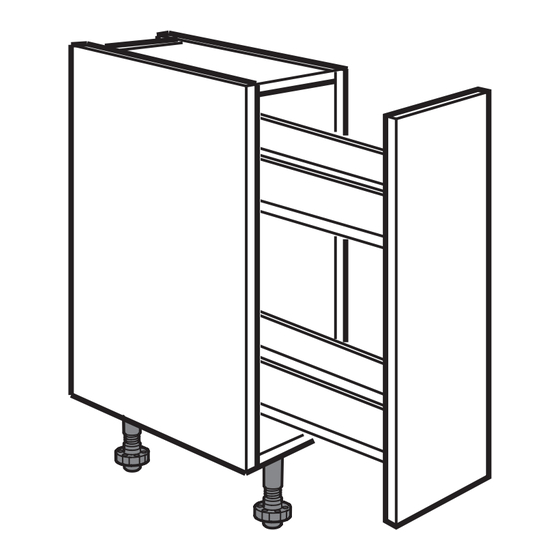

150 & 200 Unit
Assembly
150mm Pull-Out
Remove the brackets from the front
1
of the pull-out
Push
clip to
release
Measure and mark bracket
2
fixing positions
384mm
35mm
32.5mm 64mm
HD424061
300 Unit
2mm
NOTE: Ensure packaging is disposed of in a safe
IMPORTANT:
150 transit packaging to be left in position until unit is
fixed to the wall.
200/300mm Pull-Out
300mm
x4
352mm
41mm
LEAFPOBK
environmentally friendly way
Maximum load per basket:
150mm - 6kgs
200/300mm - 12kgs
Top bracket
(2 locking screws)
Bottom bracket
(1 locking screw)
200mm
Unclip
brackets
from frame
x2
C/L
Top fixing holes
124mm (200 Door)
224mm (300 Door)
=
=
300
200
unit
unit
only
only
62mm 62mm
=
=
124mm
Advertisement
Related Manuals for Howdens RKC8621
Summary of Contents for Howdens RKC8621
- Page 1 LEAFPOBK 150, 200 & 300 Base Pull-Out Frontal Fixing & Adjustment NOTE: Ensure packaging is disposed of in a safe environmentally friendly way Maximum load per basket: 150mm - 6kgs 200/300mm - 12kgs 150 & 200 Unit 300 Unit IMPORTANT: 150 transit packaging to be left in position until unit is Assembly fixed to the wall.
- Page 2 150mm Pull-Out 200/300mm Pull-Out 300mm door Fit the brackets to the back of the door Top Bracket fixing Bottom Bracket fixing 200mm door Top Bracket fixing 4 x 13mm Bottom Bracket fixing Note: Bottom bracket 4 x 13mm on 200 unit will only have one locking screw.
