Corner Larder Unit

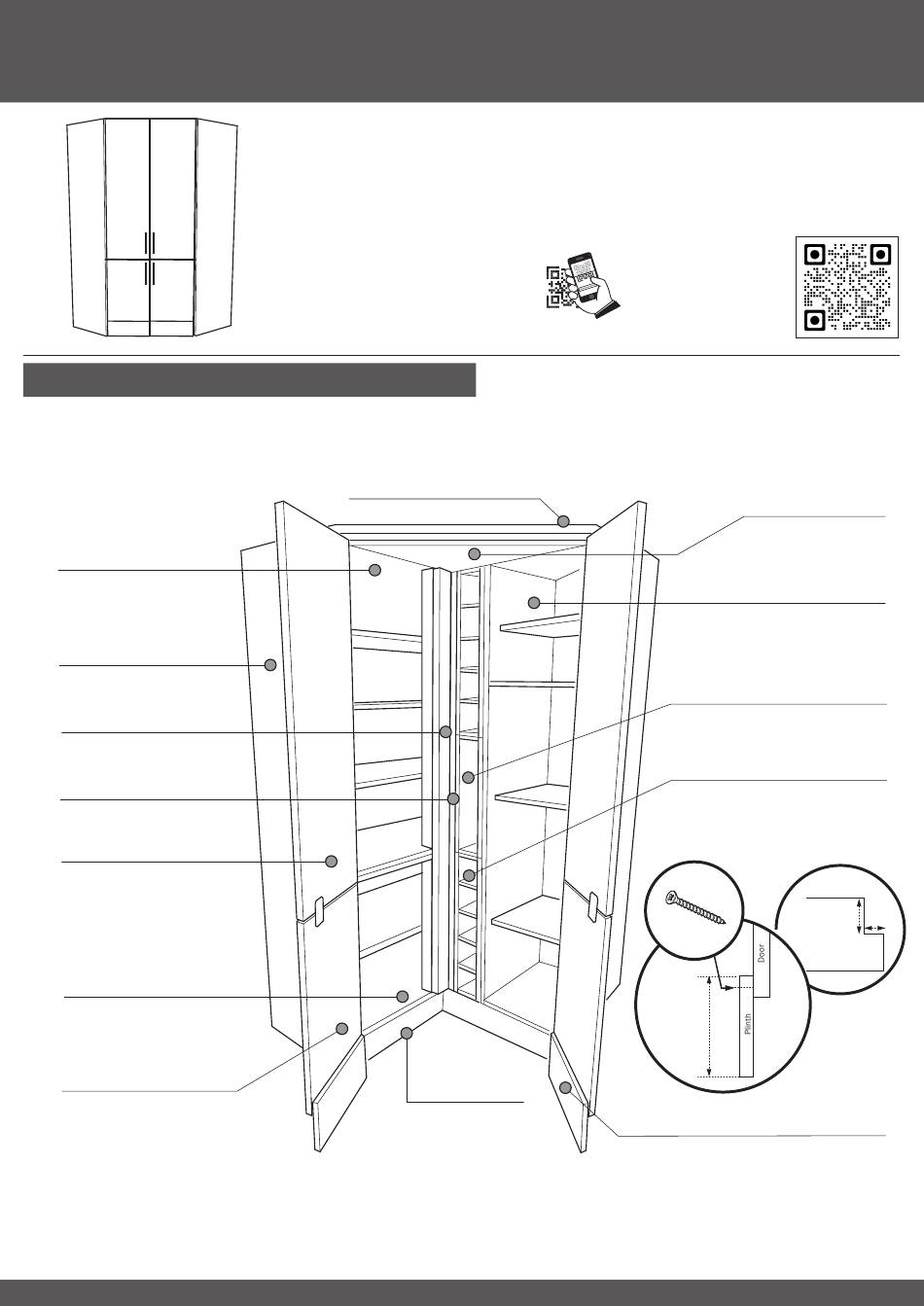

Assembly Overview
Sales code suffix (****59F)
1000mm Larder Top Unit x1
Range Specific
Tower Decor End x2
Cabinet Corner fillet
(1926mm x 104mm)
Tall Tower Decor End
Long Infill
(1942mm x 36mm)
Tall Tower Decor End
Range Specific
400mm Larder Door x2
1000mm Base Cabinet x1
Range Specific
400 FH Door x2
Blanking panels are also
required x2 for this assembly
(see step by step guide)
RKC0601
HD122190v6
The kitchen installation manual should be used for information relating to cabinet
Cornice
x1 Length
Inner Plinth
x1 Length
CLARDEROP2
Ensure packaging is disposed of in a safe environmentally friendly way
installation, hinge and door fitting/adjustment
Scan the QR code with your
smart device to access a
digital copy of the
kitchen installation manual
Top/Bottom Panel: 114mm x 490mm
30mm
x3
210mm
Plinth Sections x1/2 Requires 'notching'
Plinth section can also be 'stepped back'
from the door to align with adjoining units
Important Notes:
Top Panel x1
(565mm x 565mm)
decor end
400 Larder Unit x1
Storage Tray Space
(Side Panel: 502mm x 575mm
Back Panel: 114 x 502mm)
x2 base decor end
150mm Wine Rack x2
Note: Ensure panel sizes are
checked before cutting
Plinth 'notch' at
the back
55mm
32mm
Length 417mm
Wall Decor end
as required.
CLARDEROP2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Howdens CLARDEROP2
Summary of Contents for Howdens CLARDEROP2
- Page 1 Corner Larder Unit CLARDEROP2 Important Notes: Ensure packaging is disposed of in a safe environmentally friendly way The kitchen installation manual should be used for information relating to cabinet installation, hinge and door fitting/adjustment Scan the QR code with your...
- Page 2 14. Cut the wall decor end to make two plinth sections 210mm in height. Secure these to the bottom of each door using screws to secure (see assembly overview). Note: Plinth sections will require ‘notching’ at the back. Fit cornice and inner plinth sections as required. CLARDEROP2...
- Page 3 Tall Corner Larder Unit TCLARDEROP2 Important Notes: Ensure packaging is disposed of in a safe environmentally friendly way The kitchen installation manual should be used for information relating to cabinet installation, hinge and door fitting/adjustment Scan the QR code with your smart device to access a digital copy of the kitchen installation manual...
- Page 4 Planning Considerations Fig. B Tray space box (using base decor ends) Fig. A 1161mm 161mm 1000mm 30mm 1000mm Base 1000mm Larder Top 500 Larder Top Box Wine Racks Tray Unit Fig. C 400 Larder Corner fillet/infill 400 Larder Top Box Decor End 565mm KD Blocks x5...
