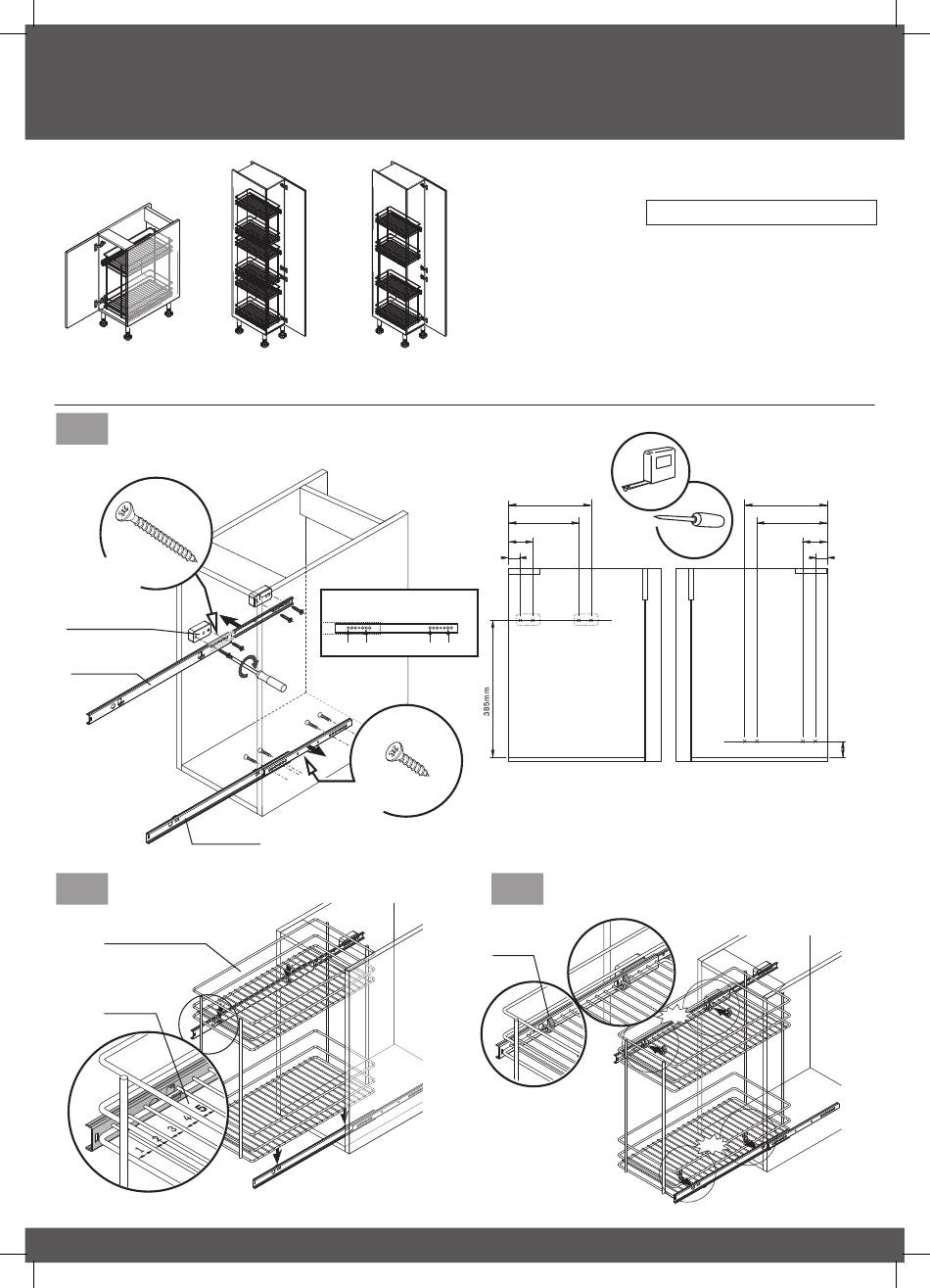

Howdens HYH1334 Quick Start Manual

300 & 400 Base/Larder
Pull-Out (LH&RH)
LH or RH Assembly LH or RH Assembly

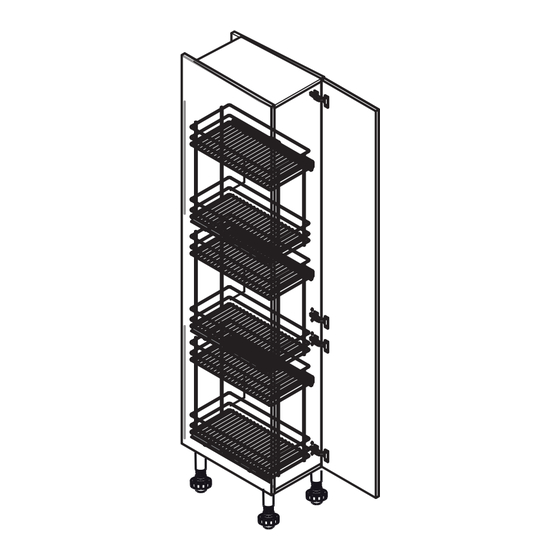

Base Cabinet (1 pull-out) Larder Cabinet (3 pull-outs)
Using the dimensions shown spike runner fixing positions.
1
Note: Installation below shows a LH door hung assembly where spacer blocks
are required on the LH side.
Screw x4
(4x30mm csk)
Spacer Blocks x2
LH Runner x1
RH Runner x1
2
Fit the basket frame onto the runers.
Basket Frame x1
5th Gap from
the front
HD424062
Follow the larder side panel fixing locations on the reverse of this sheet.
Pull-outs can be connected using HYH1301 - See reverse sheet for details
LH or RH Assembly
Larder Cabinet (2 pull-outs)
LH Side Base Panel
30mm
Runner fixing holes
Back
Edge
Screw x4
IMPORTANT: Spacer blocks must be fitted on the same side panel
(4x16mm csk)
as the hinge plates. This is so the runner does not clash with the hinges
Basket
Clips x4
44012599_01
Do not use a power driver for this product installation
6kg maximum load per basket
Ensure packaging is disposed of in a safe environmentally friendly way
Spacer blocks are only required on the side the door is hung
The pull-out can be used in a 300 & 400 base and larder application
(This is for a 2 basket application only)
263mm
222mm
71mm
Spike using a
bradawl
3
Secure the basket frame in place using the clips,
clicking them into position.
click
HYH1334
HYH1342
Important Notes:
RH Side Base Panel
263mm
222mm
71mm
30mm
25mm
click
HYH1334 & HYH1342 v5
