98-TD7
TOWER UNIT
SHELVES ONLY
(450 & 600MM WIDE)

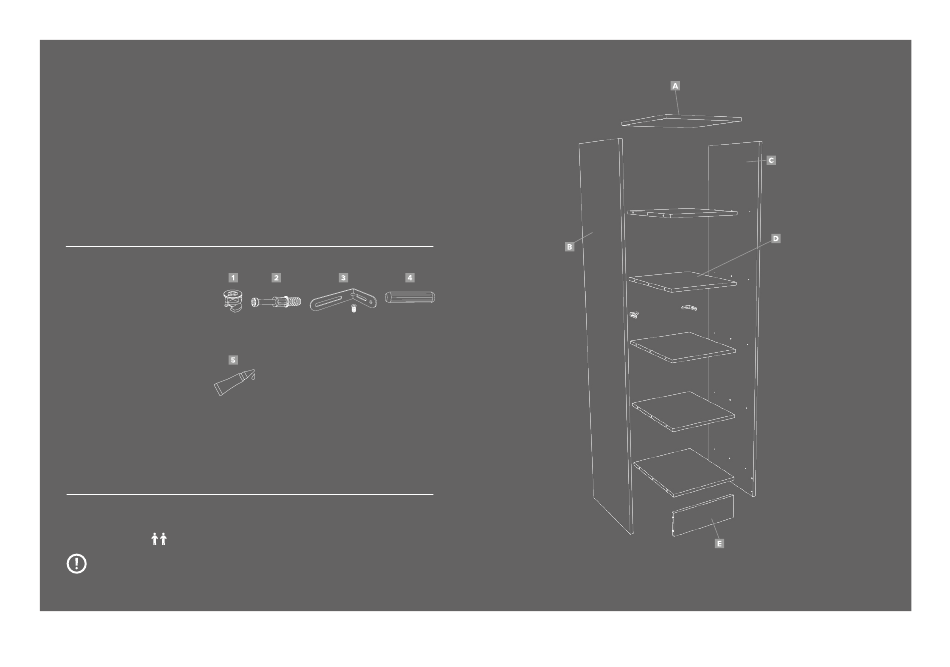

CONTENTS:
1x Top panel
1x Side panel (left)
1x Side panel (right)
5x Shelves
1x Plinth panel
RECOMMENDED:
• Tools:
Pozidrive screwdriver
• Two person build
We recommend you use the Wall Mounting
Brackets provided to fix the Tower Unit to a wall
(where possible). This will prevent the unit being
pulled over. Use suitable wall fixings.
Page 1 of 4
TOWER FIXINGS
22x
20x
2x
20x
Cams
Dowels
Wall
Wooden
mounting
dowels
brackets
2x
Glue*
*A drop of glue needs to be added into all holes the
wooden dowels are placed into (item 4).
V1
UNB_SHELVES_INSTR_01.19
Advertisement
Table of Contents
Related Manuals for Howdens 98-TD7
Summary of Contents for Howdens 98-TD7
- Page 1 98-TD7 TOWER UNIT SHELVES ONLY (450 & 600MM WIDE) Assembly Instructions CONTENTS: TOWER FIXINGS 1x Top panel 1x Side panel (left) 1x Side panel (right) 5x Shelves Cams Dowels Wall Wooden mounting dowels 1x Plinth panel brackets Glue* *A drop of glue needs to be added into all holes the wooden dowels are placed into (item 4).
- Page 2 Note: B panel shown Lay panels (B&C) on a flat surface. Fit cams & dowels to both panels. Apply to all shelves. Page 2 of 4 UNB_SHELVES_INSTR_01.19...
- Page 3 Attached shelves (D) onto side panel (C). Ensure cams are facing inwards. Insert a drop of glue into all x6 holes in item A. Page 3 of 4 UNB_SHELVES_INSTR_01.19...
- Page 4 Use suitable wall fixings WALL MOUNTING BRACKETS We recommend you use the Wall Mounting Brackets provided to fix the Tower Unit to a wall (where possible). This will prevent the unit being pulled over. Use suitable fixings. Fix the wall mounting bracket to both sides of the Tower Unit. 10 9 Use two people to stand up straight.
- Page 5 HOW TO FIT TOWER UNIT Assembly Instructions Assembly Instructions TOOLS REQUIRED: TOOLS REQUIRED: Assembly Instructions TOOLS REQUIRED: Place your tower unit into position (This can be left, centre Cutting around skirting boards (optional). Mark using a or right aligned). compass then cut using a coping saw. Ii'\ Ii'\ Please check your opening for any...
- Page 6 225mm :---------- Mark the position of the hanger bar. By measuring in 225mm to Fix first bracket through both holes. (We recommend the centre of the tower unit. 16mm screws). 225mm Back wall Fitting the second hanger bar. 1- Place hanger bar into first bracket and level up. 2- Make sure to mark position on the side wall 225mm from the back wall.
- Page 7 A GUIDE TO FIXINGS GE: EIN LEITFADEN FÜR DIE BEFESTIGUNG / FR: GUIDE DES FIXATIONS / RO: UN GHID PRIVIND ELEMENTELE DE FIXARE / IT: GUIDA AI DISPOSITIVI DI FISSAGGIO EN: Wall & Ceiling Fixings: You must first identify the type of wall or ceiling you intend to fix product onto and then contact your local hardware store if the fixings supplied are not suited to your wall or ceiling type. Care and Maintenance: Safety: Always check the fitting and location to ensure your safety in and around the home.
- Page 8 Types of structures of brick, breeze block, concrete, stone or wood. You can use one of the following types of wall plug if your walls are made of brick, breeze block, concrete, stone or wood. Types of structures Types of structures You can use one of the following types of wall plug if your walls are made You can use one of the following types of wall plug if your walls are made No.1 “General Purpose / Concrete or Block...
