PCIII harness
Ground wire from PCIII
PCIII harness
Unplug this connector

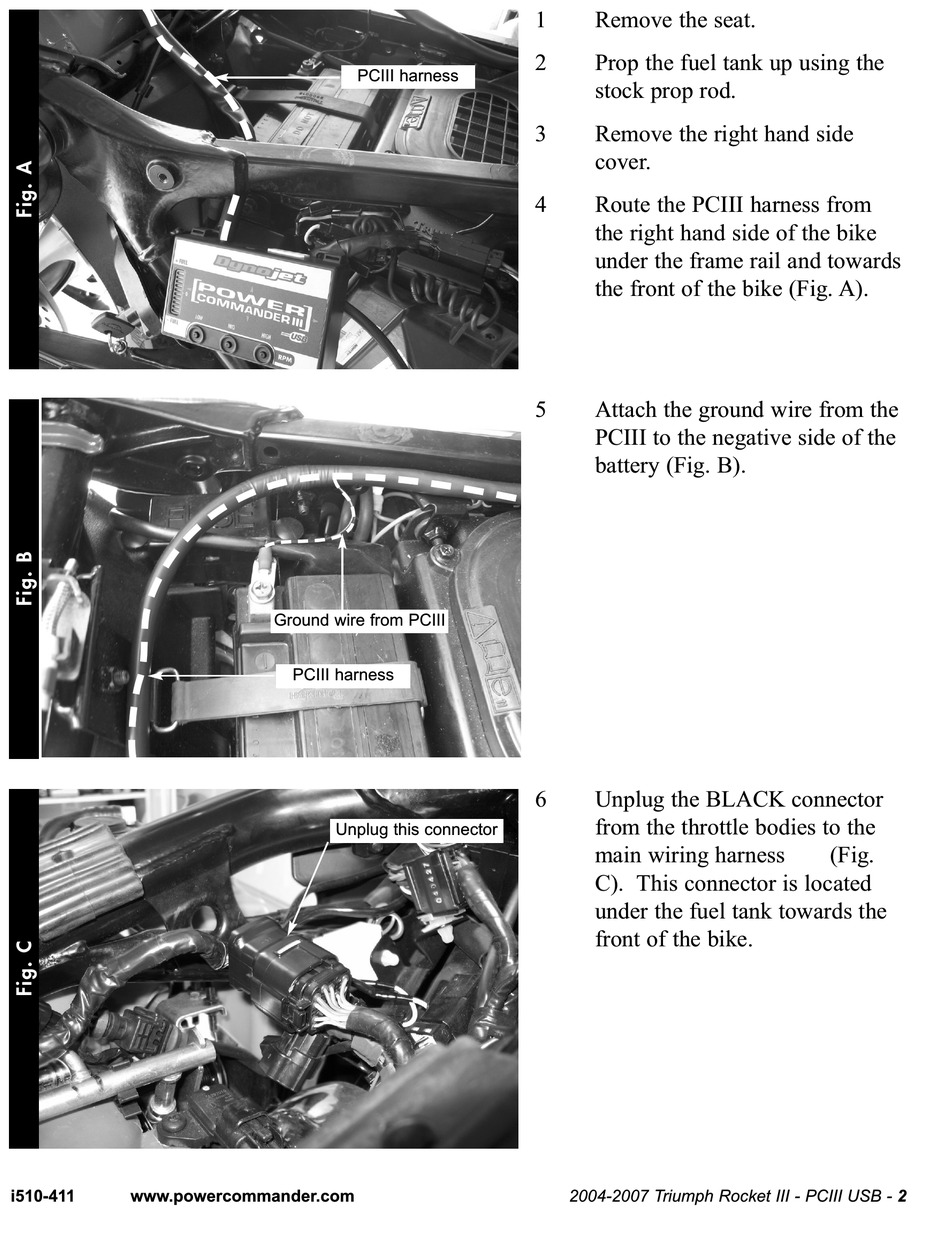

1
Remove the seat.
2
Prop the fuel tank up using the
stock prop rod.
3
Remove the right hand side
cover.
4
Route the PCIII harness from
the right hand side of the bike
under the frame rail and towards
the front of the bike (Fig. A).
5
Attach the ground wire from the
PCIII to the negative side of the
battery (Fig. B).
6
Unplug the BLACK connector
from the throttle bodies to the
main wiring harness
C).
This connector is located
under the fuel tank towards the
front of the bike.
2004-2007 Triumph Rocket III - PCIII USB - 2
(Fig.
