Mounting and Installation

■Installation

○Mounting
When the product is to be mounted in a place where water and dust splashes occur, insert a tube (O.D 4
mm, I.D 2.5 mm) into the atmospheric vent port of the product.
(Refer to "Tube attachment" on page 19.)

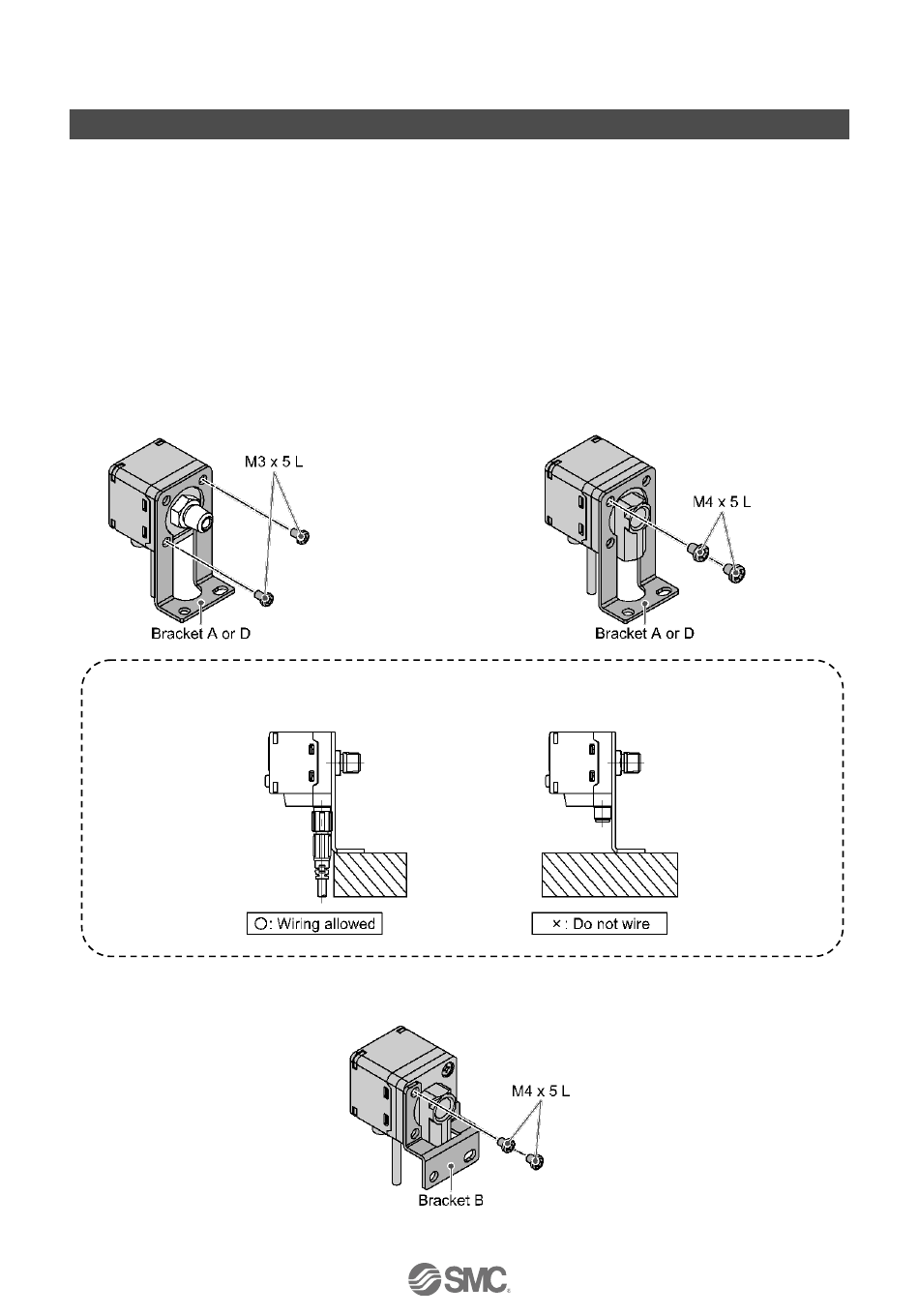

○Mounting with bracket
Fix the bracket to the product with the set screws M3 x 5 L (2 pcs.) or M4 x 5 L (2 pcs.) supplied.
The required tightening torque is 0.5 to 0.7 Nm for the M3 set screws and 1.4 to 1.6 Nm for the M4 set
screws.
Bracket A or D (Model: ZS-24-A/ZS-24-D)
[01/N01 type]
Note
For products with M8 (3 pin) connector, reserve a space for the lead wire and connector.
Bracket B (Model: ZS-24-B)
[W1/WF1 type]
