SMC Networks ZSE40A Operation Manual page 22

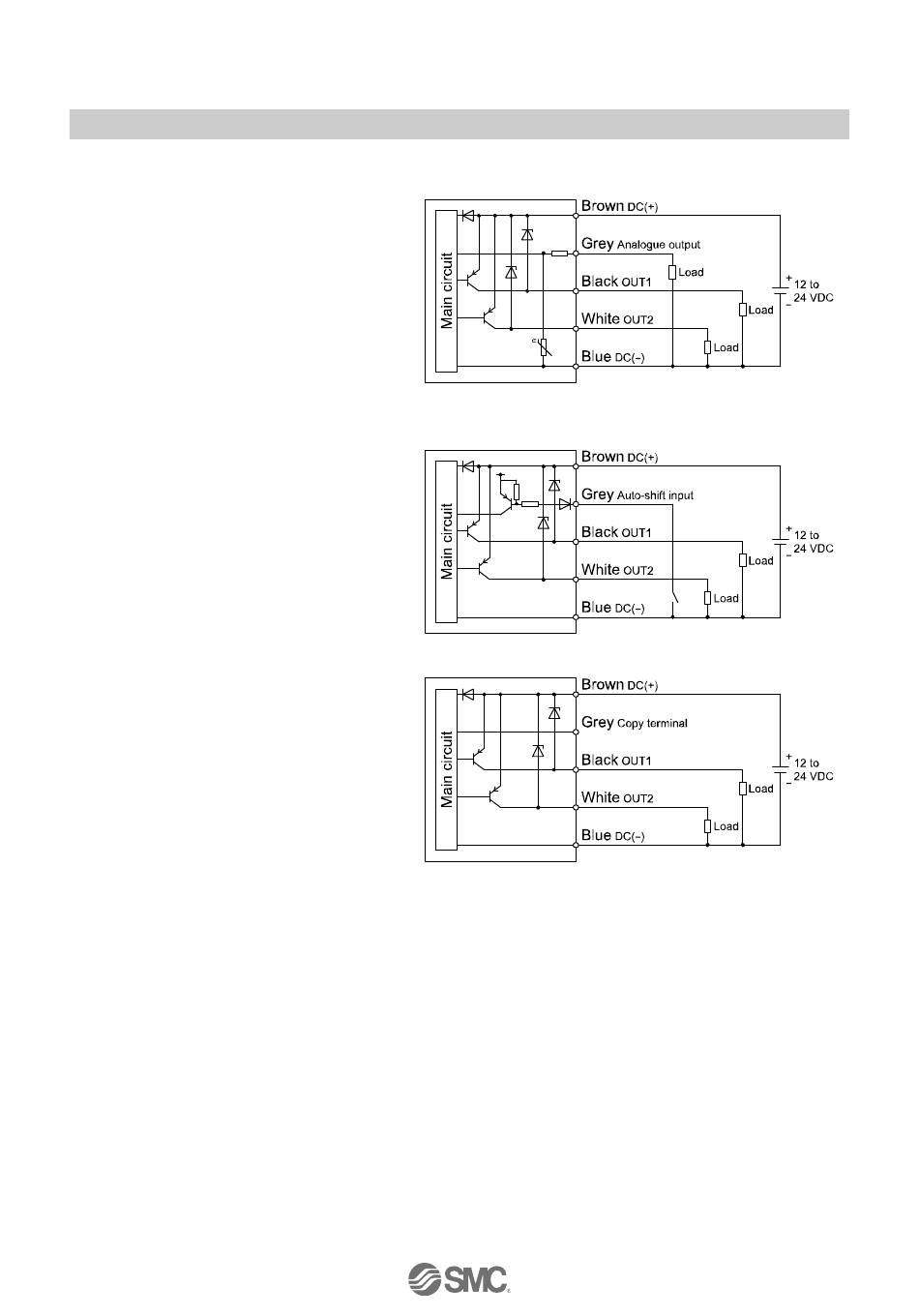

-V/-T
(Analogue output mode)
Switch output
PNP open collector output type-2 output
Max. 80 mA
Residual voltage 1 V or less
T: Analogue output 1 to 5 V
Output impedance 1 kΩ
V: Analogue output 4 to 20 mA
Max. load impedance
Power supply voltage 12 V: 300 
Power supply voltage 24 V: 600 
Min. load impedance 50 
-V/-T
(Auto-shift input mode)
With auto-shift switch output
PNP open collector output type-2 output
Max. 80 mA
Residual voltage 1 V or less
-Y
(Copy function switch output)
PNP open collector output type-2 output
Max. 28 V, 80 mA
Residual voltage 1 V or less
-21-
No.PS※※-OMM0007-H
