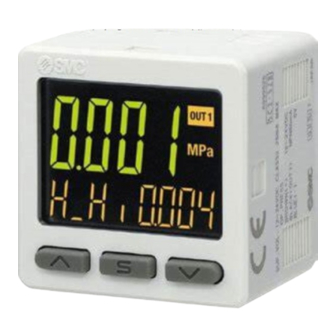

- Page 1 No.PS※※-OMS0007-D PRODUCT NAME Digital Pressure Switch MODEL / Series / Product Number ZSE20(F) ISE20...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions Model Indication and How to Order Summary of Product parts Definition and terminology Mounting and Installation Installation Piping Wiring Outline of Settings [Measurement mode] Pressure Setting 3 Step Setting Mode Simple Setting Mode Function Selection Mode Function selection mode Default setting F 0 Units selection function... -
Page 3: Safety Instructions
Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of "Caution", "Warning" or "Danger". They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Safety Instructions Caution 1.The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary. If anything is unclear, contact your nearest sales branch.
- Page 5 Operator This operation manual is intended for those who have knowledge of machinery using pneumatic equipment, and have sufficient knowledge of assembly, operation and maintenance of such equipment. Only those persons are allowed to perform assembly, operation and maintenance. Read and understand this operation manual carefully before assembling, operating or providing maintenance to the product.
- Page 6 Caution ■Do not touch the terminals and connectors while the power is on. Otherwise electric shock, malfunction or damage to the product can result. ■After maintenance is complete, perform appropriate functional inspections and leak tests. Stop operation if the equipment does not function properly or there is a leakage of fluid. When leakage occurs from parts other than the piping, the product might be faulty.
- Page 7 ●Product handling Installation Tighten to the specified tightening torque. If the tightening torque is exceeded the mounting screws and brackets may be broken. If the tightening torque is insufficient, the product can be displaced and loosen the mounting screws. Do not apply excessive stress to the product when it is mounted with a panel mount. Otherwise damage to the product and disconnection from the panel mount can result.
- Page 8 Do not use in a place where the product could be splashed by oil or chemicals. If the product is to be used in an environment containing oils or chemicals such as coolant or cleaning solvent, even for a short time, it may be adversely affected (damage, malfunction, or hardening of the lead wires). Do not use in an area where surges are generated.
-
Page 9: Model Indication And How To Order
Model Indication and How to Order No.PS※※-OMS0007-D... - Page 10 ○Accessories/Part numbers If an option is required independently, order with the following part numbers. Items Part No. Remarks Bracket A ZS-46-A1 Self tapping screws: Nominal size 3 x 8L (2 pcs) Bracket B ZS-46-A2 Self tapping screws: Nominal size 3 x 8L (2 pcs) Panel mount adapter ZS-46-B Panel mount adapter + Front protective...
-
Page 11: Summary Of Product Parts
Summary of Product parts ○Names of individual parts Operation light: Displays the switch operating condition. LCD display: Displays the current status of pressure, setting mode, selected display units and error code. 4 types of display can be selected for the main display: Single colour of constant red or green;... -
Page 12: Definition And Terminology
■Definition and terminology Term Definition Performs pressure setting automatically by detecting the increase and decrease in pressure. For example, if this function is used for a suction test, Auto-preset the pressure setting will be completed by performing suction and release of the workpiece. - Page 13 Term Definition Abbreviation of full span and full scale; difference between the minimum and maximum rated pressure values. means the maximum fluctuation range of F.S. the pressure switch rated value. (full span/full scale) For example, when the rated pressure range is -0.100 to 1.000 [MPa]: F.S.
- Page 14 Term Definition Shows the maximum pressure from when the power was supplied to the Peak value display (mode) current time. The diameter of the connecting part of the switch for connecting with the Port size object to be measured. Operating mode in which the digital display turns off and power consumption Power saving mode is reduced.
-
Page 15: Mounting And Installation
Mounting and Installation ■Installation ○Mounting with bracket ●Mount the bracket to the body with mounting screws (Self tapping screws: Nominal size 3 x 8L (2 pcs)), then set the body to the specified position. : Tighten the bracket mounting screws to a torque of 0.5±0.05 Nm. Self tapping screws are used, and should not be re-used several times. - Page 16 ○Mounting with panel mount adapter ●Mount part (a) to the front of the body and fix it. Then insert the body with (a) into the panel until (a) comes into contact with the panel front surface. Next, mount part (b) to the body from the rear and insert it until (b) comes into contact with the panel for fixing.
-
Page 17: Piping
■Piping ○Tightening the connection thread ●For connecting to the body (piping specification: -M5) After hand tightening, apply a spanner of the correct size to the spanner flats of the piping body, and tighten with a 1/6 to 1/4 rotation. As a reference, the tightening torque is 1 to 1.5 Nm. (When replacing the piping adapter ZS-46-N, tighten it using the same method.) ●Piping specification: -01, -N01 After hand tightening, hold the hexagonal spanner flats of the pressure port with a spanner, and tighten... -
Page 18: Wiring
■Wiring ○Wiring connections ●Connections should be made with the power supply turned off. ●Use a separate route for the product wiring and any power or high voltage wiring. Otherwise, malfunction may result due to noise. ●If a commercially available switching power supply is used, be sure to ground the frame ground (FG) terminal. - Page 19 ○Internal circuit and wiring examples Z/ISE20(F)-□-□-□-□□□ Output specification NPN open collector 1 output Max. 28 V, 80 mA Residual voltage: 1 V or less PNP open collector 1 output Max. 80 mA Residual voltage: 1 V or less -18- No.PS※※-OMS0007-D...
-
Page 20: Outline Of Settings [Measurement Mode]
Outline of Settings [Measurement mode] Power is supplied. The product code is displayed for approximately 3 sec. after supplying power. : Within approximately 0.2 second after power-on, the switch starts. [Measurement mode] Detects the pressure after power is supplied, and indicates the display and switch operating status. -
Page 21: Pressure Setting
Pressure Setting Default settings When the pressure exceeds the set value, the switch will be turned on. When the pressure falls below the set value by the amount of hysteresis or more, the switch will be turned off. The default setting is to turn on the pressure switch when the pressure reaches the centre of the atmospheric pressure and upper limit of the rated pressure range. -
Page 22: Step Setting Mode
3 Step Setting Mode 3 step setting mode In this mode, the set values can be input in just 3 steps. Use this mode if the product is to be used straight away, after changing only the set values. (The current pressure value is displayed on the main display.) <Operation>... - Page 23 The Pressure switch turns on within a set pressure range (from P1L to P1H) during window comparator mode. Set P1L, the lower limit of the switch operation, and P1H, the upper limit of the switch operation and WH1 (hysteresis) following the instructions given on page 21. (When reversed output is selected, the sub display (left) shows [n1L] and [n1H].) Please refer to the "List of output modes"...
-
Page 24: Simple Setting Mode
Simple Setting Mode <Operation> [Simple setting mode (hysteresis mode) In the simple setting mode, the set value, hysteresis and delay time can be changed while checking the current pressure value (main display). (1) Press and hold the button between 1 and 3 seconds in measurement mode. [SEt] is displayed on the main display. - Page 25 In the window comparator mode, set P1L, the lower limit of the switch operation, and P1H, the upper limit of the switch operation, WH1 (hysteresis) and dt1 (delay time) following the instructions given on page 23. (When reversed output is selected, the sub display (left) shows [n1L] and [n1H].) Please refer to the "List of output modes"...
-
Page 26: Function Selection Mode
Function Selection Mode ■Function selection mode In measurement mode, press the button between 3 and 5 seconds, to display [F 0]. Select to display the function to be changed [F□□]. Press and hold the button for 2 seconds or longer in function selection mode to return to measurement mode. - Page 27 ●Other parameter settings Item Page Default setting [F 2] No configurable items [F 3] Digital filter setting Page 0 ms [F 4] Auto-preset function Page Not used [F 5] No configurable items [F 6] Fine adjustment of display value Page [F10] Sub display setting Page std (Standard)
-
Page 28: F 0 Units Selection Function
■[F 0] Units selection function This setting is only available for models with the units selection function. The unit that can be displayed is different depending on the pressure range. (kPa/MPa can still be selected if the product does not have the units selection function.) <Operation>... -
Page 29: F 1 Setting Of Out1
■[F 1] Setting of OUT1 Set the output mode of OUT1. Output turns on when the pressure is greater than the set value. The default setting is to turn on the pressure switch when the pressure reaches the centre of the atmospheric pressure and upper limit of the rated pressure range. - Page 30 Hysteresis setting Set the pressure referring to the setting method on page 21. Hysteresis mode: [H_1] Window comparator mode: [WH1] The snap shot function can be used. (Refer to page 49.) Press the button to set. Move on to delay time setting. Delay time setting Set the delay time referring to the setting method on page 23.
- Page 31 ●List of output modes : Applicable errors are Er6, 8, and 9. If the point at which the switch output changes is outside of the set pressure range due to the selection of normal or reversed output, the hysteresis value is automatically adjusted. -30- No.PS※※-OMS0007-D...
-
Page 32: F 3 Digital Filter Setting
■[F 3] Digital filter setting The Digital filter can be selected to filter the pressure measurement. Output chattering or flicker in the measurement mode display can be reduced by setting the digital filter. <Operation> Press the button in function selection mode to display [F 3]. Press the button. -
Page 33: F 4 Auto-Preset Function
■[F 4] Auto-preset function This function will automatically calculate and set the optimum pressure based on the actual operating condition, when hysteresis mode has been selected. <Operation> Press the button in function selection mode to display [F 4]. Press the button. - Page 34 ●Auto-preset When auto-preset is selected in function selection mode, the set value can be calculated and memorized from the measured pressure. Repeating the suction and release of the workpiece to be set for several times will automatically optimize the set value. (1) Selection of auto-preset OUT1 mode Press the button in measurement mode to display [AP1 REdY].
-
Page 35: F 6 Fine Adjustment Of Display Value
■[F 6] Fine adjustment of display value This function is to manually perform a fine adjustment of the displayed pressure value. Pressure can be adjusted in the following range of 5%R.D. <Operation> Press the button in function selection mode to display [F 6]. Press the button. -
Page 36: F10 Sub Display Setting
■[F10] Sub display setting Change the display style of the sub display. <Operation> Press the button in function selection mode to display [F10]. Press the button. Move on to sub display setting. Sub display setting Press the button to select the display style for the sub display. - Page 37 <Sub display> •Standard The Standard display function displays the items and values on the sub display. The displayed item varies depending on the setting of the output mode. Select the displayed items by pressing the button in measurement mode. (Hysteresis mode, error output, switch output off) (Window comparator mode) •2 value display The 2 value display function displays the items listed below on the right and left side of the sub display.
- Page 38 Table showing the rated pressure range when RAnG is selected. Pressure range Rated pressure Characters displayed on the sub display Vacuum pressure -101.3 kPa Compound pressure 100 kPa Positive pressure 1 MPa Table showing the output mode and output form of OUT1 when Md1 is selected. Output mode Output style Display style...
- Page 39 •Level bar display The Level bar display is a function used to visualize the pressure and the ON area for the switch output on the sub display. The display style varies depending on the setting of the output mode. (In hysteresis mode or window comparator mode) The threshold bar displaying the switch output ON area is displayed according to the table below, using the output mode.
- Page 40 During an error output or when the output setting is off, the pressure value meter at the atmospheric pressure is displayed according to the table below. Rated range Display at atmospheric pressure Vacuum pressure Compound pressure Positive pressure •Character string display The Character string display function will display the specified characters on the sub display (right).
-
Page 41: F11 Display Resolution Setting
■[F11] Display resolution setting This function is to change the pressure display resolution. The flicker of the display can be reduced. <Operation> Press the button in function selection mode to display [F11]. Press the button. Move on to display resolution setting. Display resolution setting Press the button to select the display resolution. -
Page 42: F80 Power Saving Mode
■[F80] Power saving mode Power saving mode can be selected. When selected and no buttons are pressed for 30 seconds, the pressure switch will shift to power saving mode. <Operation> Press the button in function selection mode to display [F80]. Press the button. -
Page 43: F81 Security Code
■[F81] Security code The security code can be turned on or off and the security code can be changed when unlocked. <Operation> Press the button in function selection mode to display [F81]. Press the button. Move on to security code. Security code Press the button to select the setting of security code. - Page 44 Security code changing Press the button to input the changed security code on the main display. For instructions on how to enter the security code, refer to "How to input and change the security code" on page 52. After entry, the changed security code will flash by pressing the button for 1 second.
-
Page 45: F82 Input Of Line Name
■[F82] Input of line name Function to display the specified character string on the sub display. To display in the measurement mode, select 2 value display [dUAL] or character string display [LinE] using the setting on [F10] Sub display setting. <Operation>... -
Page 46: F90 Setting Of All Functions
●Special function setting ■[F90] Setting of all functions All functions can be set in turn. <Operation> Press the button in function selection mode to display [F90]. Press the button. Move on to setting of all functions. Setting of all functions Press the button to select all functions. - Page 47 ●Setting of each function Order Function Display unit selection Output mode setting of OUT1 Reversed output setting of OUT1 Pressure setting of OUT1 Hysteresis setting of OUT1 Delay time setting of OUT1 Display colour setting Digital filter setting Auto-preset function Fine adjustment of display value Sub display setting Display resolution setting...
-
Page 48: F98 Output Check
■[F98] Output check Correct operation of the switch output can be confirmed. The output can be turned ON/OFF manually. <Operation> Press the button in function selection mode to display [F98]. Press the button. Move on to output check. Output check Press the button to select output check. -
Page 49: F99 Reset To Default Settings
■[F99] Reset to default settings If the product settings are uncertain, the default values can be restored. <Operation> Press the button in function selection mode to display [F99]. Press the button. Move on to reset to default settings. Reset to default settings Press the button to display [ON], then press the buttons simultaneously for 5 second or longer. -
Page 50: Other Settings
Other Settings ○Snap shot function The current pressure value can be stored to the switch output ON/OFF set point. When the items of sub display (left) below are selected in 3 step setting mode, simple setting mode or function selection mode ([F 1] Setting of OUT1), by pressing the buttons simultaneously for 1 second or longer, the value of the sub display (right) shows [- - -], and the values corresponding to the current pressure values are automatically displayed. - Page 51 ○Key-lock function The key-lock function is used to prevent errors occurring due to unintentional changes of the set values. If button is pressed while the keys are locked, [LoC] is displayed on the sub display (left) for approximately 1 second. (Each setting and peak/bottom values are displayed with buttons.) <Operation - Without security code input ->...
- Page 52 <Operation – With security code input -> •Locking (1) Press the button for 5 seconds or longer in measurement mode. When [oPE] is displayed on the main display, release the button. The current setting [LoC] or [UnL] will be displayed on the sub display. (2) Select the key [LoC] with button, and press the button to set.
- Page 53 ●How to input and change the security code The left most digit starts flashing. Press the button to select a value. Press the button to make the next digit to the right flash. (If the button is pressed at the last digit, the first digit will start flashing.) After the setting is complete, Press and hold the button...
-
Page 54: Maintenance
Maintenance How to reset the product after a power cut or forcible de-energizing The setting of the product will be retained as it was before a power cut or de-energizing. The output condition is also basically recovered to that before a power cut or de-energizing, but may change depending on the operating environment. -
Page 55: Troubleshooting
Troubleshooting ○Troubleshooting Applicable pressure switch: ZSE20(F)/ISE20 When any failure occurs with this product, the following chart can be used to identify the cause of the failure. If a cause applicable to the troubles cannot be identified and normal operation is recovered by replacement with a new product, this indicates that the product itself was faulty. - Page 56 The display is Displayed value is not Refer to Trouble No.7 unstable. correct Refer to Trouble No.8 The display turns OFF. Refer to Trouble No.8 The display is missing. Refer to Trouble No.9 Display flashes. There are differences in the displayed values Refer to Trouble No.10 when using more than one pressure switch.
- Page 57 ○Troubleshooting list Problem Problem possible Problem Investigation method Countermeasures causes •The switch (1) Check the set pressure value. output does not (2) Check the settings of the (1) Adjust the set pressure turn OFF. operation mode, hysteresis and value. The operation Incorrect output type.
- Page 58 Problem Problem possible Problem Investigation method Countermeasures causes (1) Check if the output current is 80 (1)(2) Connect the mA or more. appropriate load. (2) Check if the connected load (3) Use a relay with a surge complies with the specification. Excess current voltage suppressor or Check if the load is short circuited.
- Page 59 Problem Problem possible Problem Investigation method Countermeasures causes Incorrect power Check if the power supply voltage is Supply power in the range supply in the range 12 to 24 VDC ±10%. 12 to 24 VDC ±10%. •The display Check the power supply wiring. Check if the brown and blue wires are turns OFF.
- Page 60 Problem Problem possible Problem Investigation method Countermeasures causes Key-lock mode is Check if the key-lock function is Check the key-lock function. Buttons do not activated turned on. work. Product failure Replace the product. Imperfect Confirm that the product is properly in Mount the body on the panel The body of the installation...
- Page 61 ○Error indication function This function is to display error location and content when a problem or error has occurred. Error Error displayed Description Measures Turn the power off and remove Over current The switch output load current is 80 mA the cause of the over current.
-
Page 62: Specification
Specification ■Specifications ZSE20 ZSE20F ISE20 Product No. (Vacuum pressure) (Compound pressure) (Positive pressure) Applicable fluid Air, non-corrosive gas and non-flammable gas Rated pressure range 0.0 to -101.0 kPa -100.0 to 100.0 kPa -0.100 to 1.000 MPa Set pressure range 10.0 to -105.0 kPa -105.0 to 105.0 kPa -0.105 to 1.050 MPa Min. - Page 63 ZSE20 ZSE20F ISE20 Product No. (Vacuum pressure) (Compound pressure) (Positive pressure) Enclosure IP40 Withstand voltage 1000 VAC for 1 minute between terminals and housing 50 MΩ or more between terminals and housing (with 500 VDC megger) Insulation resistance Operation: -5 to 50 C, Storage: -10 to 60 Ambient temperature range (No condensation or freezing)
-
Page 64: Dimensions
■Dimensions M5 type 01/N01 type Piping specifications Port size R1/8 Width across flats 10 NPT1/8 Width across flats 12 -63- No.PS※※-OMS0007-D... - Page 65 ○Bracket mounting dimensions ●Bracket A ●Bracket B -64- No.PS※※-OMS0007-D...
- Page 66 ○Mounting dimensions of panel mount adapter ○Mounting dimension of panel mount adapter + Front protective cover -65- No.PS※※-OMS0007-D...
- Page 67 ○Panel cutout dimensions Mount individually More than 2 pcs. (n pcs.) Close mounting <Horizontal> <Vertical> -66- No.PS※※-OMS0007-D...
- Page 68 Revision history A: Contents revised in several places. B: Contents revised in several places. [September 2016] C: Contents revised in several places. [June 2018] D: Contents revised in several places. [February 2020] 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
