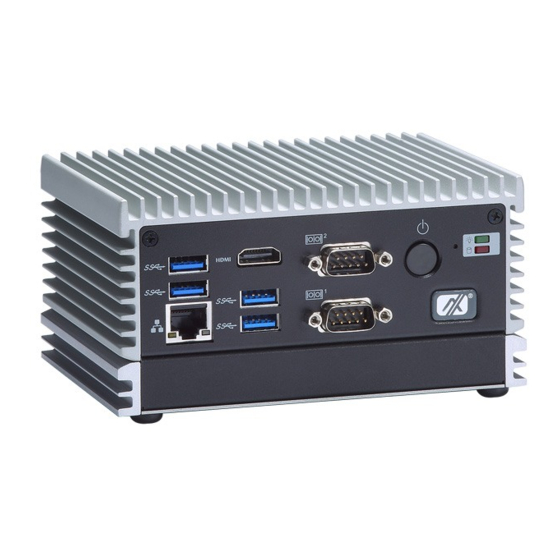

AXIOMTEK eBOX565-500-FL Quick Installation Manual

Fanless embedded box pc

Hide thumbs Also See for eBOX565-500-FL:

Download this manual

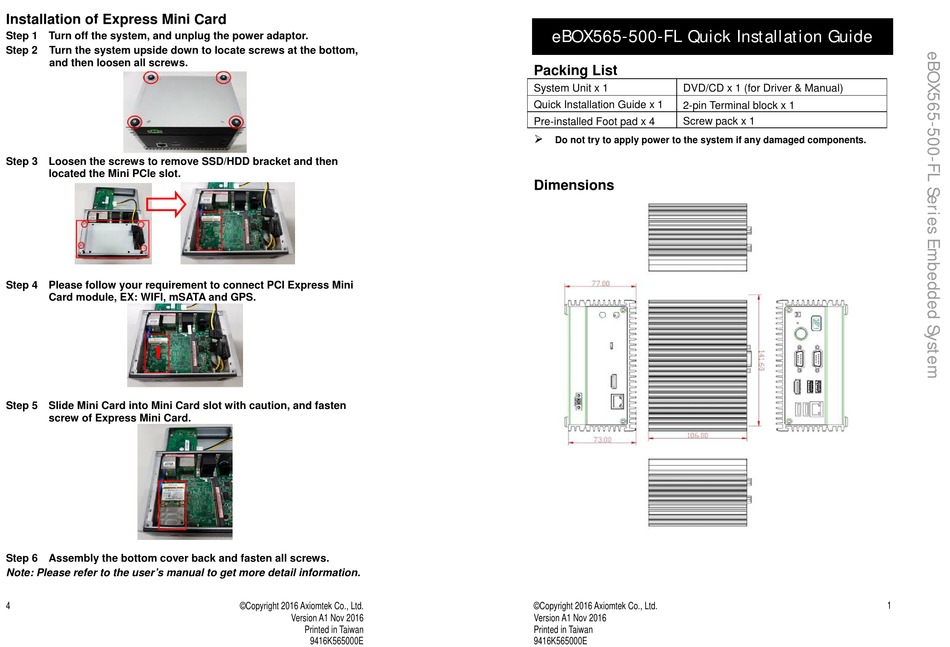

Installation of Express Mini Card

Step 1 Turn off the system, and unplug the power adaptor.

Step 2

Turn the system upside down to locate screws at the bottom,

and then loosen all screws.

Step 3 Loosen the screws to remove SSD/HDD bracket and then

located the Mini PCIe slot.

Step 4 Please follow your requirement to connect PCI Express Mini

Card module, EX: WIFI, mSATA and GPS.

Step 5 Slide Mini Card into Mini Card slot with caution, and fasten

screw of Express Mini Card.

Step 6 Assembly the bottom cover back and fasten all screws.

Note: Please refer to the user's manual to get more detail information.

Version A1 Nov 2016

Printed in Taiwan

9416K565000E

eBOX565-500-FL Quick Installation Guide

Packing List

System Unit x 1

DVD/CD x 1 (for Driver & Manual)

Quick Installation Guide x 1

2-pin Terminal block x 1

Pre-installed Foot pad x 4

Screw pack x 1



Do not try to apply power to the system if any damaged components.

Dimensions

Version A1 Nov 2016

Printed in Taiwan

9416K565000E
