In order to prevent the variety of problems which caused
by incorrect operation，Please read the manual first before
operating this machine and pay attention to the items marked
in "note".
Please keep this manual carefully for checking when needed.
Transportation, installation, safe operation of moving and
operating methods and attentions;
Installation and operation;
Function adjustment;
Maintenance;
General troubleshooting and solutions;
Main components diagram;
Circuit connection diagram.
Summary y y y
Summar
Summar
Summar

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kidde Dozer and is the answer not in the manual?

Questions and answers

Related Manuals for Tecway Kidde Dozer

Summary of Contents for Tecway Kidde Dozer

  • Page 1 In order to prevent the variety of problems which caused by incorrect operation，Please read the manual first before operating this machine and pay attention to the items marked in “note”. Please keep this manual carefully for checking when needed. Summar Summary y y y Summar Summar...
  • Page 2 Safety Attentions Safety Attentions Safety Attentions Safety Attentions 1) Certain part of the game is with high voltage. Adjust the game by technician. Do not open the game door unless maintenance or parts replacement is required. 2) Please switch off the power before checking and maintenance.
  • Page 3 Notes of Usage Notes of Usage Notes of Usage Notes of Usage 1) The voltage range of the game should be 105V~115V or 215V~225V. The proper voltage should be 110V/220V. The specific voltage accords to the date plate on the back door of the game.
  • Page 4 5) The voltage range of the PCB should be 5.1V-5.4V. 6) Check whether the game has creepage and the voltage before repairing the PCB. Notes of Clean Notes of Clean Notes of Clean Notes of Clean 1) Please use clean and soft cloth to clean the game. 2) Prevent damaging the surface of the game, please do not use the following cleanser: Alterative Cleanser；...

  • Page 5: Table Of Contents

    CONTENT 1. GAME INTRODUCTION…………………………………………6 2. PLAYING TIPS………………………………………………………7 3. TECHNICAL PARAMETERS………………………………………8 4. MOVEMENT…………………………………………………………10 5. INSALLATION………………………………………………………11 5 . 1 CH O OS E T H E L O C AT I ON FO R I N S T AL L AT I ON … … … 11 5.
  • Page 6 9.3 VOLUME ADJUSTMENT……………………………………21 10. CHECK AND MANTAIN………………………………………22 10.1 DAILY CHECK………………………………………………22 10.2 DAILY MAINTENANCE……………………………………22 11. TROUBLESHOOTING…………………………………………23 12. PARTS DRAWING AND PARTS LIST …………………………24 1 2. 1 CH AS SI S CO MP ON EN TS D IA GR AM … … … … ……… … 25 1 2 .

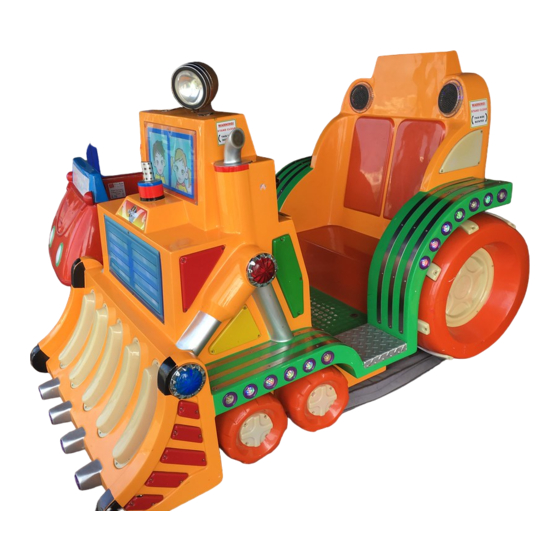

  • Page 7 1. GAME INTRODUCTION Kidde Dozer belongs to the children's swing machine type. Geronimo’s Horse with unique, beautiful, comic and simulation car appearance, interesting and exciting game, it is specially designed and developed by our company for the young people. It will be very essential and popular in amusement center.

  • Page 8: Playing Tips

    Operating income can be adjusted according to the situation. 2. PLAYING TIPS Ride on the kidde dozer, press the start button to start the game. After that, the kidde dozer will move up and down, forward and backward, turn around the steering wheel to control the...

  • Page 9: Technical Parameters

    投币入口 启动按钮 方向盘 操作杆 3. TECHNICAL PARAMETER VOLTAGE: AC220V/110V（50/60HZ） MAX. CURRENT：1.8A/3.6A (Note: please refer to the nameplate located on the back of the games to check actual usage of voltage.) MAX. POWER: 400W STANDBY POWER:234W COIN SIZE：φ21mm ~ φ31mm (diameter) 1.2mm ~ 2.5mm (thickness) CAPACITY COIN...
  • Page 10 sizeφ25mm*1.5mm LOCATION REQUIRED: -5 ~ 40℃, humidity is less than 90%. No contact with any corrosive liquid, no any greasiness and dirt. DIMENSIONS：L1800mm*W1130mm*H1450mm 1800 1130...

  • Page 11: Movement

    Parts shipped with the game: 序号 图样 名称 规格/型号 数量 螺口LED灯 12V 4珠(红、蓝） 各2个 螺口LED灯 12V 7珠（七彩） 5个 LED指示灯（绿） 1个 波子按钮 2个 长片小微动开关 2个 锁匙 1285＃ 2把 锁匙 1396＃ 2把 电源线 1条 说明书 本书 1本 3. MOVEMENT MOVEMENT: 出力方向 拉车 移动扣延伸臂...

  • Page 12: O Os E T H E L O C At I On Fo R I N S T Al L At I On

    Please follow the direction below to install the game. 5.1 CHOOSE THE LOCATION FOR INSTALLATION 1) Put the Kidde Dozer in the same type of Kiddie Ride with monitor then select the concrete placement machine according to the machine's exterior.

  • Page 13: Chec K And Se T Befo Re Conne Cting The Powe

    2800 NOTE：It must be placed on the flat floor to make the machine on the ground steadily. 5.2 CHECK AND SET BEFORE CONNECTING THE POWER 1) Please check whether the parts of cabinet are loose caused by moving, and the wire terminal should not drop out from the port.
  • Page 14 Power connection schematic diagram: 电源线插头 市电插盒 Connection methods: Step 1: make sure the brand marked voltage is the same as the mains voltage. Step 2: insert the power cord socket into the power supply,the other insert the mains plug to the box. Attention: A A A A Please make sure the power cord is not pressed by wheel,...
  • Page 15 B B B B Hold the plug to pull it out from the socket. Do not touch the plug with wet hands. WARNING WARNING WARNING WARNING Be sure to check the power input to the impedance of the ground before input the power, check if the connection mode of the power suuply is correct,can only input the power supply to the machine when it is in normal.
  • Page 16 4) Visually check the game and confirm the display and light can work properly. 5) Enter into the setting program and set the game settings (include coin, game time, game levels, etc.) 6) Insert coin to play the game, confirm the operation of the direction and the machine movement is normal.

  • Page 17: Input Power To Operate

    7. DAILY OPERATION 7.1 INPUT POWER TO OPERATE 1) Turn on the machine power switch. 2) Visually check the game and confirm the display can work properly. 3) Check the sound if it is ok. 4) confirm the coin mech , operation of the direction and the machine movement is normal Warning：Before operation, please confirm all the items above are ok.

  • Page 18: Game Setting

    coins’ quantity. 钱箱 设置门 8. GAME SETTING 8.1 KEYS FOR SETTING 设置板 设置板 SELECT 选择 设置 TEST ENTER 更改 SERVE ERASE 免费...

  • Page 19: Setting Method

    TEST: Enter into the setting menu or skip to the next menu. SELECT: Select the items that you need to change ENTER: Change the setting. SERVE: Free to play. 8.2 SETTING METHOD Setting method: press “TEST” to enter into the game setting menu →...
  • Page 20 DESCRIPTION: No. of coin per play: This setting decides how many coins for each play. If it sets for 1 coin, then you need to insert 1 coin to start the game. Sound volume choice This setting decides the size of the volume is.
  • Page 21 output up to 5 tickets. How many points can get one ticket: This setting decides the out of way of the game. If it sets “5 points can get a ticket”, then the game get 5 points can get one ticket. 2) Display screen testing interface: Display screen testing: This picture is for testing that if the monitor display status...

  • Page 22: Adjustment

    9. ADJUSTMENT 9.1 ADJUT THE COIN MECH 代币入口调节片 样币槽 代币公差微调电阻 电源/信号输入端 GRAY COUNTER(+/-) DC+12V WHITE COIN SIGNAL 退币杆 BLACK GROUND GRAY COUNTER(-/+) COIN信号常态开关 N.O. 精准 正常 N.C. 100ms SLOW 50ms MEDIUM 25ms FAST COIN信号波长调整开关 Descriptions: 1): Please take out the plastic coin from sample coin chute and replace it with token.

  • Page 23: Main Board Adjustment

    be used as the coin mech switch when the game is power 4): Adjust the adjusting switch of COIN Signal wave length to 50MS. 5): Adjust the micro-adjusting resistance of token tolerance. Clockwise: increasing the sensitivity of token tolerance, that is, the range of accepting the token tolerance will be larger.

  • Page 24: Volume Adjustment 2

    Descriptions: Annulling Button: pressing this button can set the Game Setting to default and clear the data of Coin and Ticket saved in PCB. Volume Adjustment: Use a flat screwdriver to twist the volume potentiometer to adjust the volume level of the machine.

  • Page 25: Check And Mantain

    2) Turn the volume potentiometer to adjust the size of the volume. Turn clockwise while the volume become bigger, anticlockwise when the volume smaller. 10. CHECK AND MAINTAIN ！warning Please check and maintain the game by technicians. Please power off the game when check and maintain. Please do not put any tools into cabinet, otherwise it will cause problem.

  • Page 26: Daily Maintenance

    Display Check if the displayed colors are proper. Check whether the sound and the volume are Sound Motor Check the swing motor is normal operation Temperatur Check if the temperature and humidity is e、humidity proper. 10.2 Daily Maintenance ITEM DESCRIPTION Chassis Clean the chassis with water and soft Frames...

  • Page 27: Troubleshooting

    11. TROUBLESHOOTING If you have any problem in installing or using the machine, we recommend that you first check the following table for possible cause of the problem and solution before asking for technical support: the coin mech is bad replace the coin mech the wire of light's control is loose.
  • Page 28 12. DIAGRAM FOR MAIN PARTS AND PARTS LIST 12.1 CABINET...
  • Page 29 Chassis components parts list NAME/MODEL NO. NAME/MODEL NO. Prior to Organic three-colour light pieces A board Instruction The rear blister board LED light bar Prior to Organic Hexagon blister(left) pieces B three-colour light Car headlights board monitor19 inch The front blister Display frame Triangle chimney The display glass...
  • Page 30 Transformer 220v/18v 12. 2 Control table component diagram and parts list 名 称 件数 编码器 EC16 控台件 控台有机片 小长片微动开关 摇杆 波子机按钮 小方向盘 轴承 6305 方型绿色带灯按钮 方向盘座 无片微动开关...
  • Page 31 12.3 EXPLODED VIEW FOR CHASSIS 12.4 Chassis components decomposition diagram and parts list...
  • Page 32 名 称 件数 名 称 件数 连接架 从动齿轮件A 接近开关 从动齿轮件B 摆臂A 摆臂B 轴承 6305 链条 4分 主动齿轮件A 07 主动齿轮件B 电机 底架 固定转轮 地脚 轴承座...

  • Page 33: Che Mati C Dia Gram

    SCHEMATIC DIAGRAM Br3-3 8Ω15W　 R/Bla1 B3-3 Bla8 Bla2-1 功放板 R/Bla2 Bla7 Bla2-2 投币器 Br3-3 OUT2 W/Bla1 R/Bla1 220V R/Bla3 设置板 Bla2-1 290378 R/Bla2 Bla2-3 220V Bla2-2 B3-3 ENTER G/Bla1 OUT1 R/Bla4 SELECT Grey/W1 R/Bla3 SERVE Br/W1 Bla2-3 Bla2-4 R/Bla4 TEST Pu/W1 Bla2-4 Bla6...
  • Page 34 14.After-sales service description We take "warm, thoughtful, sincere, timely" for the purpose of the after-sales service, with strong technical support, timely solve the problem for you need. 14.1 After sales service Customer service through many years of service experience, according to three main service industry actual situation, formulated the following way: Online services FAQ: Set email problem solving, technical personnel...
  • Page 35 Regarding spare parts application and maintenance of order, please according to the maintenance application form and provide the necessary spare parts purchase order on the project content. In addition,the parts take time to repair, so the supply time could extend, please understanding. 维修申请单...
  • Page 36 Note:Our company provides the maintenance spare parts supply for 5 years. 零部件订购单 客户 传真 电话 公司名称 公司地址 运输支付方式：到付、预付 零件名称/型号 机器名称 数量 备注 备注 Contact:WWW.MECPOWER.COM.CN ADD:Wenbian Industrial Zone,Wenbian Village,Shiji Town, Panyu District,Guanghzou China. TEL：020-84859302 SEVICE TEL: 020-34882820...
