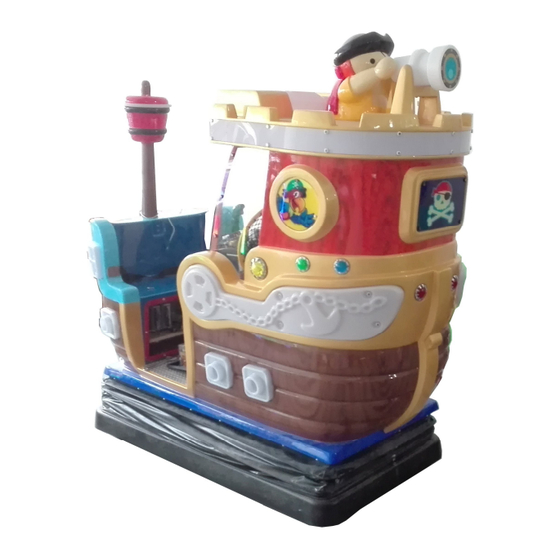

Tecway Captain Jack Operation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Captain Jack and is the answer not in the manual?

Questions and answers

Related Manuals for Tecway Captain Jack

Summary of Contents for Tecway Captain Jack

  • Page 2 CAPTIN JACK OPERATION MANUAL 1、Spare Part List Spare Part： NAME Spec./ Material UNIT DRAWING REMARK Manual Ticket door、 AH57 coin door、 repair door Coin box AH78 door Fuse 6.3A Wire 1.5M Long micro switch Ball 80 pcs...

  • Page 3: Troubleshooting

    CAPTIN JACK OPERATION MANUAL 2、TROUBLE SHOOTING Faulty Failure Cause Trouble Shooting Do not adjust the coin acceptor。 Adjust the coin acceptor。 Can not insert Have the fake coin。 Take out the fake coin。 coin No 12V input voltage。 Check the wire of power supply。 Ticket dispenser signal wire loosen。...

  • Page 4: Game Instruction

    CAPTIN JACK OPERATION MANUAL 3、GAME INSTRUCTION 3-1 Game Instruction 1. Insert coin, press start button to start game. 2. Players move the gun(up/down; left/right) to aim the target, shoot for score. 3. In the game time, much score you get more ticket you got. 3-2 Operation Menu Target Control Cabinet...

  • Page 5: Control Signal & Instruction

    CAPTIN JACK OPERATION MANUAL 3-3 Control Signal & Instruction 1. See attached IO sheet and drawing, from the main board can know the place for input and output. 2. DIP setting can reference for IO sheet, capatial letter is for factory setting, customer can adjust by yourself.
  • Page 6 CAPTIN JACK OPERATION MANUAL 4、Spare Part List 4-1 Mechanism Part Overall Fiberglass Shooting Mechanism Shaking mechanism Ball feed mechanism Shaking frame...
  • Page 7 CAPTIN JACK OPERATION MANUAL Ball Feed Mechanism...
  • Page 8 CAPTIN JACK OPERATION MANUAL Drawing No. Name Spec. / Material ZYTD38SRZ-R(55) Motor 24V3000RPM Adjust board Stainless Side bearing F688 Synchro board Stainless Pole(common part) Nylon Ball wheel(common part) Silicone Shooting motor base Aluminum Tube welding Q235 Rubber(common part) Side board A Q235 Side board B(common Q235...
  • Page 9 CAPTIN JACK OPERATION MANUAL Shaking Frame...
  • Page 10 CAPTIN JACK OPERATION MANUAL Drawing No. Name Spec. Material Up shaking frame Q235 Bearing with base UCP205 Down Q235 shaking frame Frame cover Black Inverter Joint bearing M16 outer tooth Joint bearing M16 inner tooth Sleeve Q235 Motor GH22-200-40S Axis 45”...
  • Page 11 CAPTIN JACK OPERATION MANUAL Ball Feed Mechanism Drawing NO. Name Spec. / Material Pull ball rod 201 Stainless Connector A welding 201 Stainless Ball feed side board A 201 Stainless Joint bearing M4 inner tooth Screw M4*50 outer tooth Roller sleeve B Black nylon Ball feed side board B 201 stainless...
  • Page 12 CAPTIN JACK OPERATION MANUAL Shaking Mechanism Drawing NO. Name Spec. / Material HDXPS-01-11 Blocking cover Stainless 201 HDXPS-05-05 Panel Plywood HDXPS-03-13 Boat PVC +PE HDXPS-03-07 Bomb Left/right HDXPS-04-07 Lamp ring sleeve White rubber HDXPS-04-08 Lamp ring Clarity PC Lamp ring back HDXPS-04-09 Black ABS cover...
  • Page 13 CAPTIN JACK OPERATION MANUAL HDXPS-02-05 674 Axle Stainless 201 Detector HDXPS-03-04 Background board HDXPS-05-03 Background board Plywood Fixing welding part HDXPS-01-16 Stainless 201 1W spotlight Fixing welding part HDXPS-01-46 Stainless 201 Eccentric plate HDXPS-01-19 Stainless 201 welding part 6002 bearing HDXPS-01-42 Flanged shaft Motor...
  • Page 14 CAPTIN JACK OPERATION MANUAL 4-2 Coin Assy. Part Drawing NO. Name Spec. / Material Coin acceptor Side Electronic LK100M Coin box Iron Ticket machine Lock AH78 Short lock 78 Counter frame Black plastic Six bit counter C-012 Volume adjuster Black Ticket box Reset button...
  • Page 15 CAPTIN JACK OPERATION MANUAL 4-4 Speaker Assy. Part Drawing NO. Name Spec. / Material Round speaker 4”8Ω15W White Arylic Arylic Red，Green，Blue three color Speaker light ring light ring Speaker cover Silver 4-5 Fuse & Power Assy. Part Drawing NO. Name Spec.
  • Page 16 CAPTIN JACK OPERATION MANUAL 4-6 Electric Assy. Part Name Spec. / Material UNIT 12V 220W Power supply 12V 150W Main board Magic light control board Counter frame Black plastic Six bit counter C-012 Reset button CSAN.PCB Filter Fuse Digital tube Motor Detector...
  • Page 17 CAPTIN JACK OPERATION MANUAL 4-7 Art Part...
  • Page 18 CAPTIN JACK OPERATION MANUAL Drawing NO. Name Spec. Material Cabinet menu Surface glue Cannon cover menu Surface glue Repair door menu Surface glue Boat menu A Surface glue Boat menu B Surface glue Boat menu C Surface glue Main menu Surface glue Telescope menu Surface glue...

  • Page 19: Electric Part

    CAPTIN JACK OPERATION MANUAL 4-8 Electric Part...
  • Page 20 CAPTIN JACK OPERATION MANUAL Name Spec. / Material Telescope light 12V/5050RGB soft lamp strip/35CM Side light ADS-75123-2835 Front arylic light ADS-75123-2835 Side light 12V/5050RGB soft lamp strip/35CM Down side light ADS-75123-2835 Side Arylic light ADS-75123-2835 Spot light Flag rod light 3528 12V Blue L:0.4m W:8mm Seat side light ADS-75123-2835...
  • Page 21 CAPTIN JACK OPERATION MANUAL...
