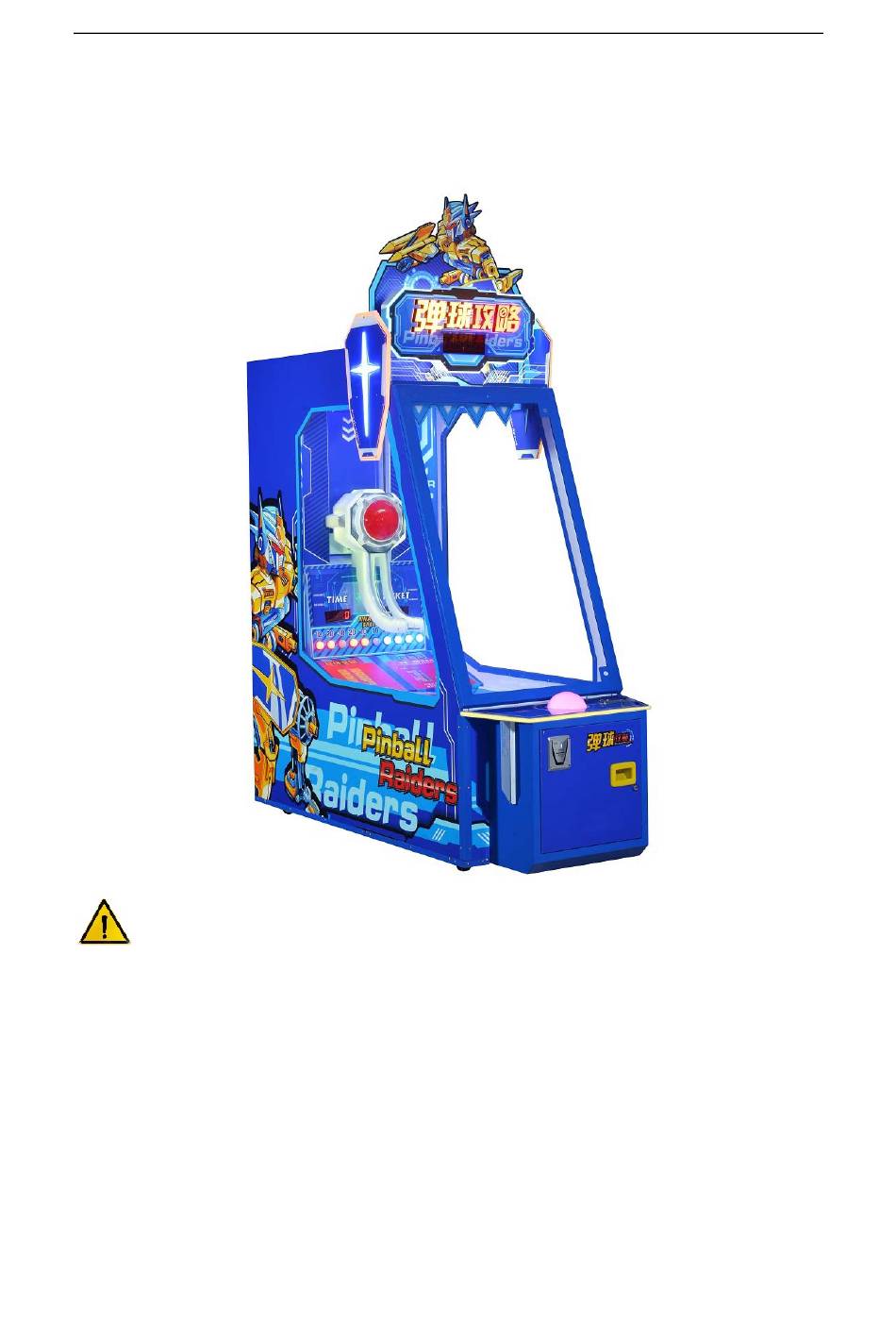

- Page 1 An instruction manual Pinball Raiders In order to ensure the long‐term normal use of this product, the product should be fully inspected every 7 days when it is used (focus on regularly adding lubricant on the upper and lower chutes). ...
-
Page 2: Table Of Contents
Catalog A．Introduction……………….………………………………….……3 B．Product Characteristics……………………………3 C．Game methods…………………………………3 D．Safety attention………………………………４ E．Warning…………………………………………4 F．Operational guidelines…………………………4 Technical parameters…………………………………4 Specification requirements ……………………5 … 3. The test and set …………………… ………………5 … … 4. Prize pool value setting………………………………7 5. Setting instructions of prize pool value…………7 6. faults and troubleshooting methods…………10 G．Fault Clearance and Detection Steps………………11 H．Maintenance instructions………………………14 Page 2,pages 15... -
Page 3: A．introduction
A. Introduction of this product: 《Pinball Raiders》is a carnival game machine, which is divided into 1. Tickets version 2. Gift version.Designed for public entertainment, an indoor entertainment machine, it has a fresh and lovely appearance, stable and solid machine, and easy to understand the game, is the best entertainment products in the playground revenue. B. -
Page 4: D.safety Attention
D.Safety attention： Before the machine is used.，Please pay attention to the safety warning sticker on the machine；In the process of reading this manual please pay special attention to some matters needing attention。 Warning This is a mistake if you don't pay attention，There is a possibility of injury。 。 ... -
Page 5: Specification Requirements
※ The above technical parameters such as adjustment without notice (2) Specification requirements The package contents：Please open the package and count the items。 Name Specification or Origin Number Company Remarks material (Supplier) Pinball Raiders ... - Page 6 To enter the test program: when the machine is working, press "SET UP" or "Service" on the setting board to enter the setting program; Page 6,pages 15...
-
Page 7: Prize Pool Value Setting
(4)Prize pool value setting: Press "set" once more, and the display will be "H00" to "H14" for 1 second, respectively representing 15 winners in the prize pool (digital tube display). When setting a winning prize value, the winning prize will "blink". Press "set" once more, and it will be displayed as "H97‐" for 1 second. Press "start" to exit background Settings Press "set" once more, and it will be displayed as "H98‐" for 1 second. Press "start" to restore factory default parameters and exit the background. Press "set" once more, and it will be displayed as "H99‐" for 1 second. Press "start" to clear accounts and exit the background. Setting instructions of prize pool value: Digital display instructions Settable range Factory settings Ｈ００ ０－５００ １０ Setting the goal 1 Ｈ０１ ０－５００ ２０ Setting the goal 2 Ｈ０２ ０－５００ ... - Page 8 Ｈ１０ ０－５００ １０ Setting the goal 11 Ｈ１１ ０－５００ ２０ Setting the goal 12 Ｈ１２ ０－５００ ３０ Setting the goal 13 Ｈ１３ ０－５００ ２０ Setting the goal 14 Ｈ１４ ０－５００ １０ Setting the goal 15 (6).Proposal for Setting Parameters Recommended expenditure table of value (after setting, the average number of lottery tickets will be 2 COINS per game as the standard; if one coin per game is reduced, the ...
- Page 9 Recommended Form 3 12 张 Average number of lottery tickets ６ ５０ ６ １０ ７０ １０ ２０ １００ ２０ １０ １０ 3 balls ６ ５００ ６ Table button Recommended Form ４ 15 张 Average number of lottery tickets ６ ５０ ６ １０ ７０ １０ ３０ １５０ ３０ １０ １０ 3 balls ６ ５００...
- Page 10 Recommended Form ６ * Average number of lottery tickets 20 １０ ５０ １０ ２０ １００ ２０ ３０ ２００ ３０ ２０ ２０ 3 balls １０ ５００ １０ Table button Recommended Form ７ Average number of lottery tickets 25 ６ ５０ ６ １０ １００ １０ ２０ ２００ ２０ １０ １０ 3 balls ６ １０００ ...
-
Page 11: Faults And Troubleshooting Methods
Recommended Form ９ Average number of lottery tickets 30 １０ ５０ １０ １０ １００ １０ ２０ ２００ ２０ １０ １０ 3 balls １０ １０００ １０ Table button Recommended Form １０ Average number of lottery tickets 35 １０ １００ １０ ２０ １５０ ２０ ３０ ３００ ３０ ２０ ２０ 3 balls １０ １０ 1000 ... - Page 12 4. Filling of fuses 3. Replace electric switch(wire box inlet assembly) with fuse No sound. 2 1. Bad horn, loose 1. Change the horn. thread 2. Change motherboard 2. Main board failure 3 No coin. 1. The line doesn't 1. Testing of coin lines go to the 2. Coin changer motherboard. 2. Mint damage. Ticket machines are 4 1. Ticket Exchange always issued or do 1. Ticket machine stuck 2 Tracking lines not issue tickets or damaged 3. Number of ticket machine 2. Feedback signal lines from time to time repairs and supplements do not reach the motherboard ...
- Page 13 can not be sensed. communication clip in the track 2. No input signal into 2. Detection of glassy eye state the ball's light eye(more than 2 consecutive times in the game can not sense the goal) The LED IO can't The light eye continues ８ feel properly. to signal. 1. Detection of IO board wire 2. Test for Goal I Board Eye 1. Detection of IO ９ １.1. Check the optical eye of board wire 1. After the ball is out of the ball device 2. Test for Goal I the lift, the light eye of 2. Check the ball track card Board Eye the ball device has no 3. Check the action of the solenoid signal ...
-
Page 14: H．maintenance Instructions
The fault detection steps and exclusion 1． The signal line coin (brown) and ground collision will produce information that coin, the normal operation of the line, need to replace the coin. 2． Meter detection: Whether the coin coin reaches the normal voltage signal line input IN1 is connected to the motherboard ... - Page 15 chemicals and objects above the machine. The liquid will cause the short circuit to damage the device, the chemicals will corrode the machine, the upper level will harm the human body and damage the machine. ● Don't place the object in the exhaust machine. The exhaust port is blocked will cause the machine temperature rise, affecting the normal operation of the machine or even damage the device. ...
