  • Page 1 Manual for Max Roller...

  • Page 2: Safety Attentions

    Safety Attentions 1) Certain part of the game is with high voltage. Adjust the game by technician. Do not open the game door unless maintenance or parts replacement is required. 2) Please switch off the power before checking and maintenance. 3) Please switch off the power before opening the game door.
  • Page 3 Notes of Usage 1) The voltage range of the game should be 105V~115V or 215V~225V. The proper voltage should be 110V/220V. The specific voltage accords to the date plate on the back door of the game. The voltage must be correct; otherwise it would be difficult to repair the damage.
  • Page 4 Notes of Clean 1) Please use clean and soft cloth to clean the game. 2) Prevent damaging the surface of the game, please do not use the following cleanser:  Alterative Cleanser；  Acidic Cleanser；  Insecticide, sterilized water, alcohol or other chemical cleanser. Notes of Moving and Shipping 1) Properly disassemble the game for necessary moving and shipping.

  • Page 5: Game Introduction

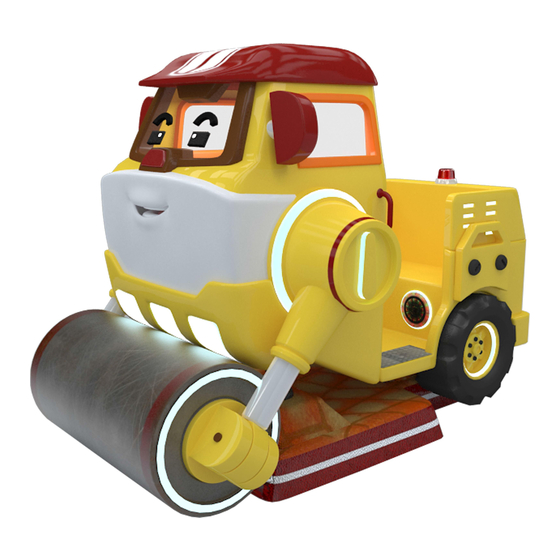

    GAME INTRODUCTION Max Roller is a very popular kiddie ride. It was created based on the popular character of the popular cartoon “Poli Robocar”. Its outstanding appearance, unique and exciting design makes itself very popular among the players. PRODUCT FEATURES Max Roller’s streamline and colorful design is very attractive to the players.
  • Page 6 PLAYING TIPS & OPERATION 1. Insert the coins/ tokens into the coin selector, and the machine will start to move automatically. 2. There are 4 buttons on the operative platform, each controls a vehicle in the window during the game. 3.
  • Page 7 TECHNICAL PARAMETER Voltage: AC 220V/ 110V (50/60Hz) 0.5A/2.5A Max. Current: (Note: Please refer to the nameplate located on the back of the games to check actual usage of voltage) Max. Power: 300W Standby Power: 60W Coin Size: Diameter φ21mm ~ φ31mm// Thickness 1.2mm ~ 2.5mm Capacity of Coin Box: Approximately 1500 Coins ( for coin sizeφ25*1.5mm) Location Required: 5 ~ 40℃, humidity is less than 90%.
  • Page 8 ACCESSORIES Item Note Quantity Fuse 5A (Small) 1285# 1396# Powr cable Manual for frequency Goodrive 20 converter Manual REQUESTED SPACE FOR ISTALATION The location should have sufficient space for the machine as below graphic: 0.96 m 0.5 m 0.5 m...
  • Page 9 CONSOLIDATE THE MACHINE Place the stand against the floor, and it will lift the machine up approximately 5mm, so the machine will stand still on the ground. 固定地脚 Stand 活动脚轮 Wheel CHECK AND SET BEFORE CONNECTING THE POWER 1. Please check whether the parts of cabinet are loose caused by moving, and the wire terminal should not drop out from the port.

  • Page 10: Check Before Operation

    B. Hold the plug to pull it out from the socket. Do not touch the plug with wet hands. CHECK AFTER CONNECTING THE POWER 1. Make sure the input voltage is same as the one stated on name plate on the back door of the game.
  • Page 11 DAILY OPERATION INPUT POWER TO OPERATE 1. Turn on the machine power switch. 2. Visually check the game and confirm the display can work properly. 3. Check the sound if it is ok. 4. Confirm the coin mech, control button and the machine movement is normal. Warning：Before operation, please confirm all the items above are ok.

  • Page 12: Game Setting

    GAME SETTING 1. Open the door on the chassis of the game and you will see below setting board: Main Board 主机板 主机板 Main Board 4 5 6 1 2 3...
  • Page 13 Description Choose the item which needs setting, toggle ON or OFF on the setting board to start the setting. There are 2 sets of switches on the main board, SW1 and SW2. Each set has 8 switches. Toggle ON or OFF to change the setting. Please see attached list of setting items: Description: 1.
  • Page 14 ADJUST THE COIN MECH adjusting chip in coin entrence sample coin chute Micro-Resistance Port For Power/Signal Input GRAY COUNTER(+/-) coin-return DC+12V COIN SIGNAL WHITE BLACK GROUND switch for coin signal pole GRAY COUNTER(-/+) N.O. 精准 正常 N.C. 100ms SLOW Adjusting Switch For 50ms MEDIUM 25ms FAST Coin Signal...

  • Page 15: Volume Adjustment

    VOLUME ADJUSTMENT Adjust the volume by turning the potentiometer on the sound board. Sound Board 声音板 Sound Board 声音板 音量电位器 Sound Potentiometer Adjust the volume: Open the coin selector, find out the sound board and adjust the potentiometer with screw driver. Note: Please adjust the potentiometer slowly and avoid twisting it extremely fast, because it would damage the speaker by a sudden increase on current output.

  • Page 16: Maintenance

    MAINTENANCE ！warning Please check and maintain the game by technicians. Please power off the game when check and maintain. Please do not put any tools into cabinet, otherwise it will cause problem. After checking, please tightly screw the screws and close the door. 1.

  • Page 17: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSES SOLUTIONS no sample coin insert sample coin Can't insert sensitivity for coin was adjust the sensitivity, screw the resistance coin adjusted too high (turn right) the coin mech is bad replace the coin mech the wire of light's control is check the connection of light's control.

  • Page 18: Schematic Diagram

    SCHEMATIC DIAGRAM 后轮灯1 +12V Bla7 后轮灯2 车头三色灯板1 后侧灯1 彩 O2-1 O2-1 +12V R/W4 后侧灯2 色 R/W4 信号3 G/W4 G/W4 信号2 灯 压轮跑马灯1 B/W4 B/W4 信号1 控 压轮跑马灯2 制 压臂跑马灯1 车头三色灯板2 板 +12V O2-1 压臂跑马灯2 信号3 R/W4 信号2 G/W4 压臂灯1 信号1 B/W4 压臂灯2 Bla6...
