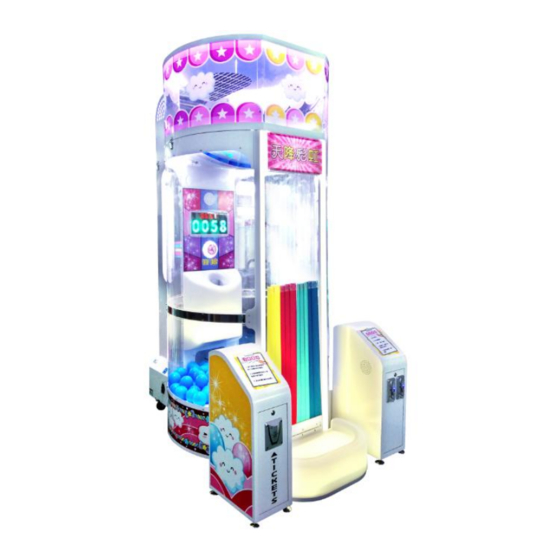

Summary of Contents for Tecway Rainbow

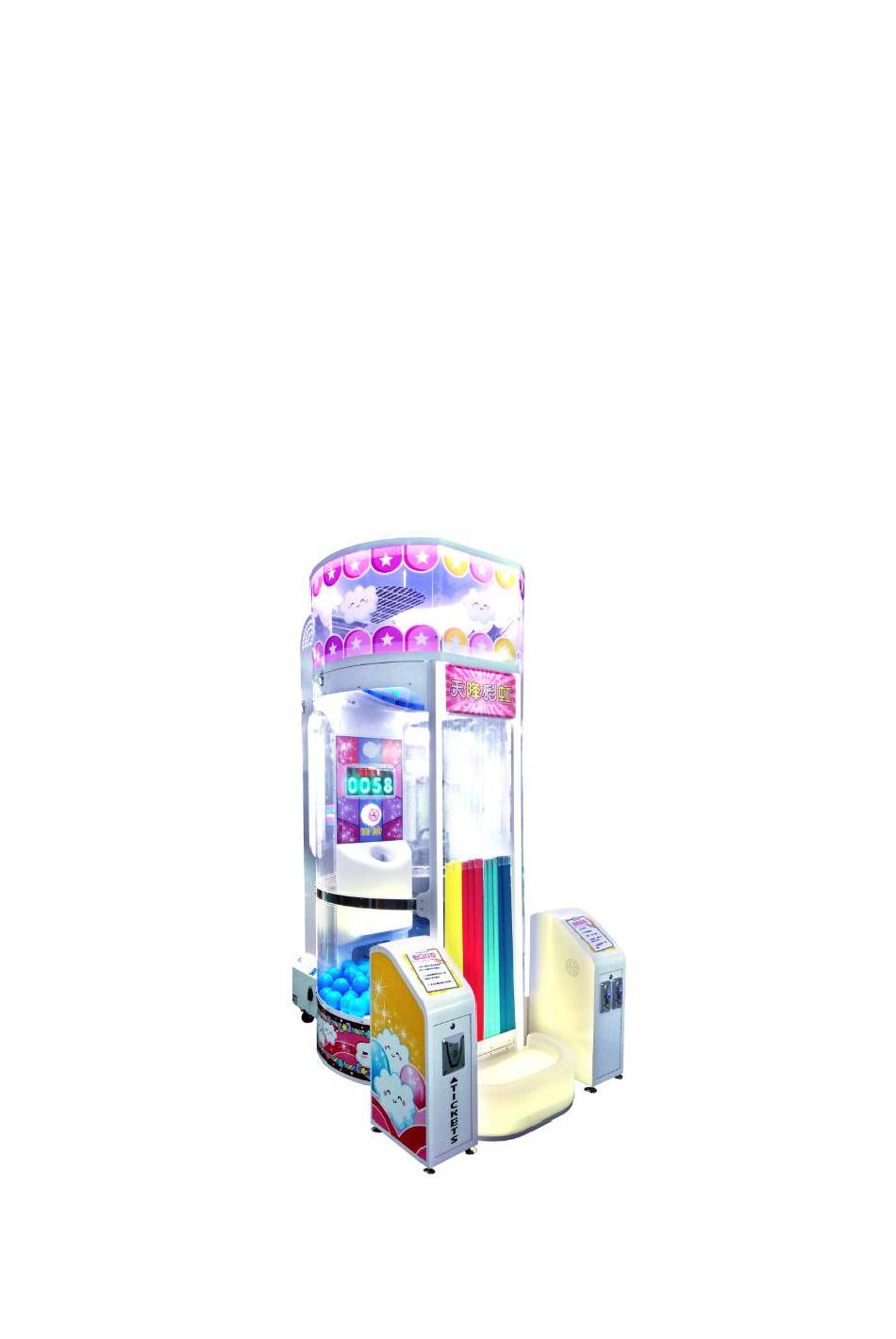

  • Page 1 RAINBOW Product Manual V1.0...
  • Page 2 《RAINBOW》 Product Manual V1.0 Contents 1. Machine instructions ................... 2 2. Machine setting & test instructions ............ 7 3. Fault & Resolution ..................15 4. Machine maintenance ................... 19...
  • Page 3 《RAINBOW》 Product Manual V1.0 1. Machine instructions 1.1.Specification and Parameter 1.Voltage:AC220V 50Hz(Please refer to the machine nameplate for specific use voltage) 2.Dimension:W1100×D1620×H2245mm(Assembly) 3.Weight:about 200 Kg 4.Power:450W 1.2.Considerations 1.Suitable for indoor environment 2.Please do not placed in the tilted position, so as to avoid accidents 3.Please do not use it in the following places:...
  • Page 4 《RAINBOW》 Product Manual V1.0 1.3.2. Install the wind turbine component to the host as shown below 1 、 The wind turbine assembly is mounted at the bottom of the host Wind turbine components need to be plugged into the slots on both sides of the bottom of the host.
  • Page 5 《RAINBOW》 Product Manual V1.0 1.3.3. Move the host to a suitable position, then unscrew the 6 feet of the machine, adjust the height of the foot, ensure that all casters are off the ground and the force of each foot is close.
  • Page 6 《RAINBOW》 Product Manual V1.0 1.4.Playing way Out the goal Ball house Display screen Elasti Start button ball entrance Coin port Recycling ball Entrance lottery 1、 Insert coin, enter the waiting state 2、Open the elastic curtain and carefully enter the machine 3、Press the "Start"...
  • Page 7 《RAINBOW》 Product Manual V1.0 balls is as follows: "Payback time = game time-drop time": ball 100pieces 200pieces 300pieces 400pieces 500pieces Time 110s This recommended data is the player in the ordinary pitching speed measurement, please follow the actual situation increase and decrease the number of balls 1.6.Game considerations...
  • Page 8 《RAINBOW》 Product Manual V1.0 2. Machine setting & test instructions 2.1.Dialing switch setting The dialing switches on the machine board are shown in the following illustration: SW1: project Fall ball time Game time Currency per detail (In a game, when the...
  • Page 9 《RAINBOW》 Product Manual V1.0 SW2: project item 内 Small ball score Big ball score detail 容 1Score/ball 1Score/ball 2Score/ball 2Score/ball 3Score/ball 3Score/ball 4Score/ball 4Score/ball 5Score/ball 5Score/ball 6Score/ball 6Score/ball 7Score/ball 7Score/ball 8Score/ball 8Score/ball 9Score/ball 9Score/ball 10Score/ball 10Score/ball 15Score/ball 15Score/ball 20Score/ball 20Score/ball...
  • Page 10 《RAINBOW》 Product Manual V1.0 SW3: project Stand Clean Score per ticket Save detail ball No Ticket Score /Ticket Score /Ticket Score /Ticket Score /Ticket Score /Ticket Score /Ticket Score /Ticket Not save coin 、votes Save coin 、votes standby Sound, demo...
  • Page 11 《RAINBOW》 Product Manual V1.0 2.2.Test instructions Setting Panel Description Coin count 1 Up(test) Coin count 2 Down(serve) Enter Lottery count Volume up(test) : Click in the standby state to enter the test program; Press the flip page in the test...
  • Page 12 《RAINBOW》 Product Manual V1.0 Wind turbine test After entering the wind turbine test, as shown in the right picture. 1)Press "OK" key, the screen <OFF> becomes <ON>, the bottom Wind turbine starts to work, presses "OK" again, the Wind turbine stops working。...
  • Page 13 《RAINBOW》 Product Manual V1.0 2.2.5. Coin Counter 1 Test After entering the coin counter 1 test, as show in the right image Press the "OK" key, the screen will display "Ccnt1:on" 0.5 seconds after the disappearance, while the coin counter 1 count plus 1.
  • Page 14 《RAINBOW》 Product Manual V1.0 Browse all input signal states 2.2.11. Enter all input signal states as shown in the image on the right. Each letter represents an input signal, by manually touching a signal's switch or sensor, to observe whether the corresponding letter on the screen changes, you can check whether the switch or sensor work is normal.
  • Page 15 《RAINBOW》 Product Manual V1.0 The bottom door stays open for hours The bottom door holding time is the time at which the gate of the bottom ball recovery port remains in the "open" state during the game, and the unit is seconds.
  • Page 16 《RAINBOW》 Product Manual V1.0 3. Fault & Resolution 3.1.Fault code description and fault handling Fault code Fault Name Fault Analysis and treatment Software version Error 1 The prompt version has been updated. Reboot to remove the alarm update Internal data error. 1, restore the factory settings; 2. Replace...
  • Page 17 《RAINBOW》 Product Manual V1.0 need to be treated as follows: 1, check the top of the department whether there is foreign body jammed, 2, check the belt and coupling is loose, 3, into the "top Department test procedure", check the top department motor is normal work. If the motor does not turn, change the motor;...
  • Page 18 《RAINBOW》 Product Manual V1.0 3.3.2. Top Department components: Transmission Belt Transmission Belt Coupling Top Department Motor Revolving door "Off" sensor "Open" sensor Inductive film Revolving door) Revolving door Light LED 3.3.3. Bottom Department Components: "Off" micro switch Bottom Department Motor Transmission Crank "open"...
  • Page 19 《RAINBOW》 Product Manual V1.0 3.3.4. Power components: Power switch Solid State Relays Filter compo nents Fuse Power adapter Main (for lighting LED power lights) Supply Box 3.3.5. Back dis-assembly process:...
  • Page 20 《RAINBOW》 Product Manual V1.0 4. Machine maintenance Even if the machine works properly, in order to allow the machine to operate at its best, and for a longer period of time, check and maintain the following daily: 1、Check if the foot seat is normal to support the good machine.
