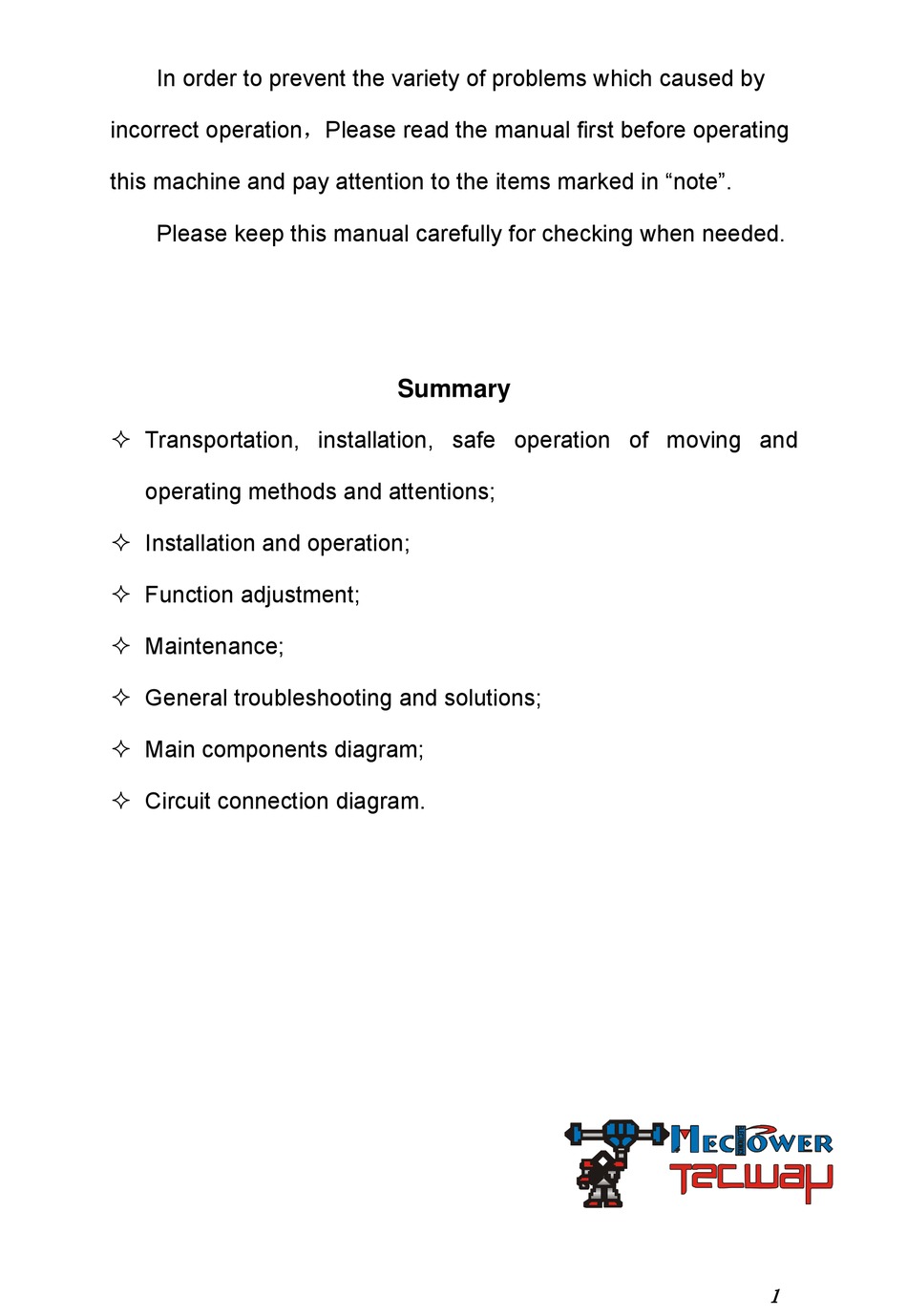

In order to prevent the variety of problems which caused by
incorrect operation,Please read the manual first before operating
this machine and pay attention to the items marked in "note".
Please keep this manual carefully for checking when needed.
 Transportation, installation, safe operation of moving and
operating methods and attentions;
 Installation and operation;
 Function adjustment;
 Maintenance;
 General troubleshooting and solutions;
 Main components diagram;
 Circuit connection diagram.
Summary
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rally Car and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tecway Rally Car

  • Page 1 In order to prevent the variety of problems which caused by incorrect operation,Please read the manual first before operating this machine and pay attention to the items marked in “note”. Please keep this manual carefully for checking when needed. Summary ...
  • Page 2 July 12th, 2011 Safety Attentions 1) Certain part of the game is with high voltage. Adjust the game by technician. Do not open the game door unless maintenance or parts replacement is required. 2) Please switch off the power before checking and maintenance. 3) Please switch off the power before opening the game door.
  • Page 3 Notes of Usage 1) The voltage range of the game should be 105V~115V or 215V~225V. The proper voltage should be 110V/220V. The specific voltage accords to the date plate on the back door of the game. The voltage must be correct;...
  • Page 4 Notes of Clean 1) Please use clean and soft cloth to clean the game. 2) Prevent damaging the surface of the game, please do not use the following cleanser:  Alterative Cleanser;  Acidic Cleanser;  Insecticide, sterilized water, alcohol or other chemical cleanser. Notes of Moving and Shipping 1) Properly disassemble the game for necessary moving and shipping.
  • Page 5: Table Of Contents

    CONTENT GAME INTRODUCTION ................6 PLAYING TIPS AND OPERATIONS ............7 TECHNICAL PARAMETER ..............8 MOVEMENT...................9 INSTALLATION..................10 CHOOSE THE LOCATION FOR INSTALLATION ......10 CHECK AND SET BEFORE CONNECTING THE POWER ....11 CHECK AND ADJUST AFTER CONNECTING THE POWER....12 CHECK BEFORE OPERATION............12 DAILY OPERATION ................13 INPUT POWER TO OPERATE ............13 CHECK AFTER OPERATION............13 COLLECT COINS AND KEEP RECORD ...........13...
  • Page 6: Game Introduction

    1. GAME INTRODUCTION Rally Car with unique, beautiful, comic and simulation car appearance, interesting and exciting game, it is specially designed and developed by our company for the young people. It will be very essential and popular in amusement center.
  • Page 7: Playing Tips And Operations

    2. PLAYING TIPS Ride on the Rally Car and insert coin, press the start button to start the game. After that, the car will move, step on the accelerator to accelerate the car. When step on the there's a sharp, accelerator to control the speed.
  • Page 8: Technical Parameter

    TECHNICAL PARAMETER VOLTAGE: AC220V/110V(50/60HZ) MAX. CURRENT:1.2A/2.4A (Note: please refer to the nameplate located on the back of the games to check actual usage of voltage.) MAX. POWER: 265W COIN SIZE:φ21mm ~ φ30mm (diameter) 1.2mm ~ 2.5mm (thickness) CAPACITY OF COIN BOX: 1200pcs of coins with coin sizeφ25mm*1.5mm LOCATION REQUIRED: -5 ~ 40 , humidity is less than 90%.
  • Page 9: Movement

    Parts shipped with the game: DRAWING NAME SPEC./MODEL DC12V 1285 # 1396 # power cord manual 4. MOVEMENT Direction of movement diagram: Note: when the road surface is uneven during moving or when you tilt the machine, please pay attention to the strength to prevent damage to any parts.
  • Page 10: Installation

    Please follow the direction below to install the game. 5.1 CHOOSE THE LOCATION FOR INSTALLATION 1) Put the Rally Car in the same type of Kiddie Ride with monitor then select the concrete placement machine according to the machine's exterior.
  • Page 11: Check And Set Before Connecting The Power

    5.2 CHECK AND SET BEFORE CONNECTING THE POWER Please check whether the parts of cabinet are loose caused by moving, and the wire terminal should not drop out from the port. Check whether the GND is connected. Please check whether the resistance of power input at the both ends for GND is more than 100 megohm.
  • Page 12: Check And Adjust After Connecting The Power

    5.3 CHECK AND ADJUST AFTER CONNECTING THE POWER 1) Make sure the input voltage is same as the one stated on name plate on the back door of the game. 2) After connecting the power, please switch on the game. 3) Inserting coin to check if the coin machine cans work properly.
  • Page 13: Daily Operation

    7. DAILY OPERATION 7.1 INPUT POWER TO OPERATE 1) Turn on the machine power switch. Visually check the game and confirm the display can work properly. Check the sound if it is ok. confirm the coin mech , operation of the direction and the machine movement is normal Warning:Before operation, please confirm all the items above are ok.
  • Page 14: Game Setting

    8. GAME SETTING 8.1 KEYS FOR SETTING setting board SELECT setting TEST ENTER change free SERVE ERASE TEST: Enter into the setting menu or skip to the next menu. ENTER: Change the setting. SERVE: Free to play.
  • Page 15: Setting Method

    8.2 SETTING METHOD Setting method: press “TEST” to enter into the game setting menu → press the “TEST” to choose the setting item →press “ENTER” to change the setting. 8.3 SETTING DESCRIPTION 1) Game setting interface: GAME SET AND TEST COIN VOLUME TIME...
  • Page 16: Adjustment

    9. ADJUSTMENT ADJUT THE COIN MECH adjusting chip in coin entrence sample coin chute Micro-Resistance Port For Power/Signal Input GRAY COUNTER(+/-) coin-return DC+12V WHITE COIN SIGNAL BLACK GROUND switch for coin signal pole GRAY COUNTER(-/+) N.O. 精准 正常 N.C. 100ms SLOW Adjusting Switch For 50ms MEDIUM 25ms FAST...
  • Page 17: Main Board Adjustment

    decrease the sensitivity, that is, the range will be smaller and choose the token more strictly. MAIN BOARD ADJUSTMENT Diagram of main board: Descriptions: Annulling Button: pressing this button can set the Game Setting to default and clear the data of Coin and Ticket saved in PCB. Volume Adjustment: Use a flat screwdriver to twist the volume potentiometer to adjust the volume level of the machine.
  • Page 18: Check And Maintain

    Check whether the coin mech can work proper. Encoder of Check whether the encoder of the direction can the direction control the Rally Car’s forward direction normally Sound Check whether the sound and the volume are ok. Display Check if the displayed colors are proper.
  • Page 19: Troubleshooting

    11. TROUBLESHOOTING If you have any problem in installing or using the machine, we recommend that you first check the following table for possible cause of the problem and solution before asking for technical support: P ROBLEM CAUSES SOLUTIONS no sample coin insert sample coin sensitivity for coin was adjusted too adjust the sensitivity, screw the resistance...
  • Page 20: Diagram For Main Parts And Parts List

    12. DIAGRAM FOR MAIN PARTS AND PARTS LIST 12.1 CABINET NAME QTY. NAME QTY. headlamps 10 knock 1285 LCD display 11 coin door component pedal 12 setting board fiberglass body 13 meter speaker net 14 pedal speaker 15 fiberglass protecting piece coin mech 16 button with light (middle) knock 1396...
  • Page 21: Steering Wheel

    12.2 STEERING WHEEL NAME QTY. encoder fixture encoder steering wheel fixture bearing bearing pole bearing cover steering wheel cover for screw...
  • Page 22: Circuit Board

    12.3 CIRCUIT BOARD NAME QTY. inverter power supply box 220V/5V,12V main board interface board leakage protection switch PCB pin flash light signal amplify board relay control board...
  • Page 23: Chassis

    12.4 CHASSIS NAME QTY. NAME QTY. bracket for car 10 front movable pole movable gearing pole 1 11 foundation movable gearing pole 2 12 movable gearing pole 1 motor 13 protecting sleeve for movable pole fiberglass for chassis 14 button for motor shaft bracket for motor 15 motor shaft chassis...
  • Page 24: Schematic Diagram

    13. SCHEMATIC DIAGRAM Bla7 button control board 290378 8 Ω 15W   SELECT ENTER SERVE G/W1 TEST start button Bla6 O/W1 CON3 switch for brakes Bla5 speaker + speakker- Bla2-1 R2-1 switch for accelerator Bla4 Grey1 setting/test button signal interface board Bla3 293961 change button...
