9. ADJUSTMENT

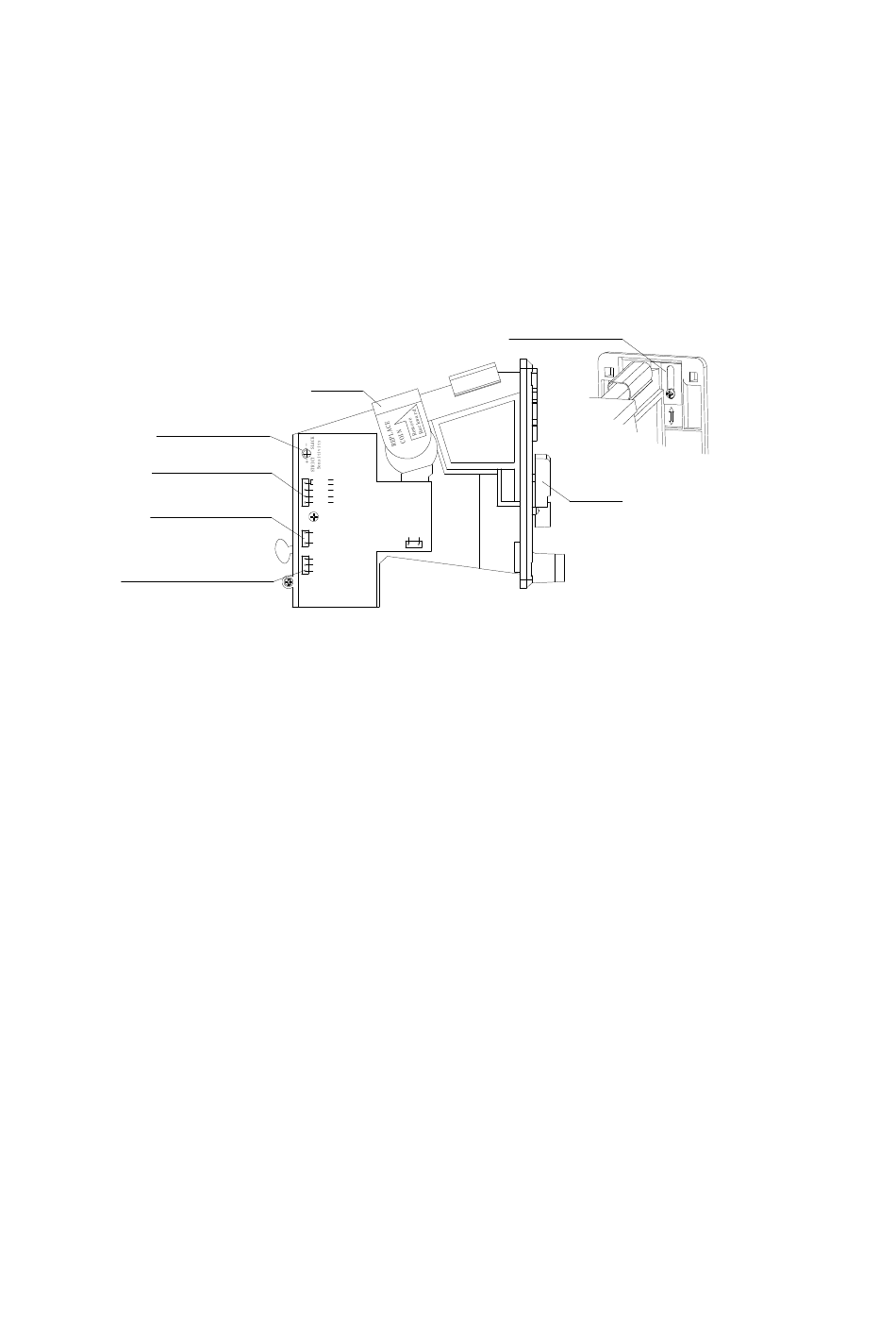

9.1 ADJUT THE COIN MECH
代币公差微调电阻
电源/信号输入端
COIN信号常态开关
COIN信号波长调整开关
Descriptions:
1): Please take out the plastic coin from sample coin chute
and replace it with token.
2): Remove the screws on back of coin entrance. Adjust the
fixing chip on back of coin entrance according to the
token's diameter, which prevent blocking the coin mech
as inserting the large coin in by mistake.
3): Turn the COIN Switch to "NO" (COIN Signal wire and GND
should be disconnected at usual time). Turning switch can
样币槽
GRAY COUNTER(+/-)
RED DC+12V
WHITE COIN SIGNAL
BLACK GROUND
GRAY COUNTER(-/+)
MGN NOM
SW1
N.O. 精准 正常
N.C.
SW3
SW2
100ms SLOW
50ms MEDIUM
25ms FAST
代币入口调节片
退币杆
