OPERATION MANUAL FOR UFO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UFO and is the answer not in the manual?

Questions and answers

Related Manuals for Tecway UFO

Summary of Contents for Tecway UFO

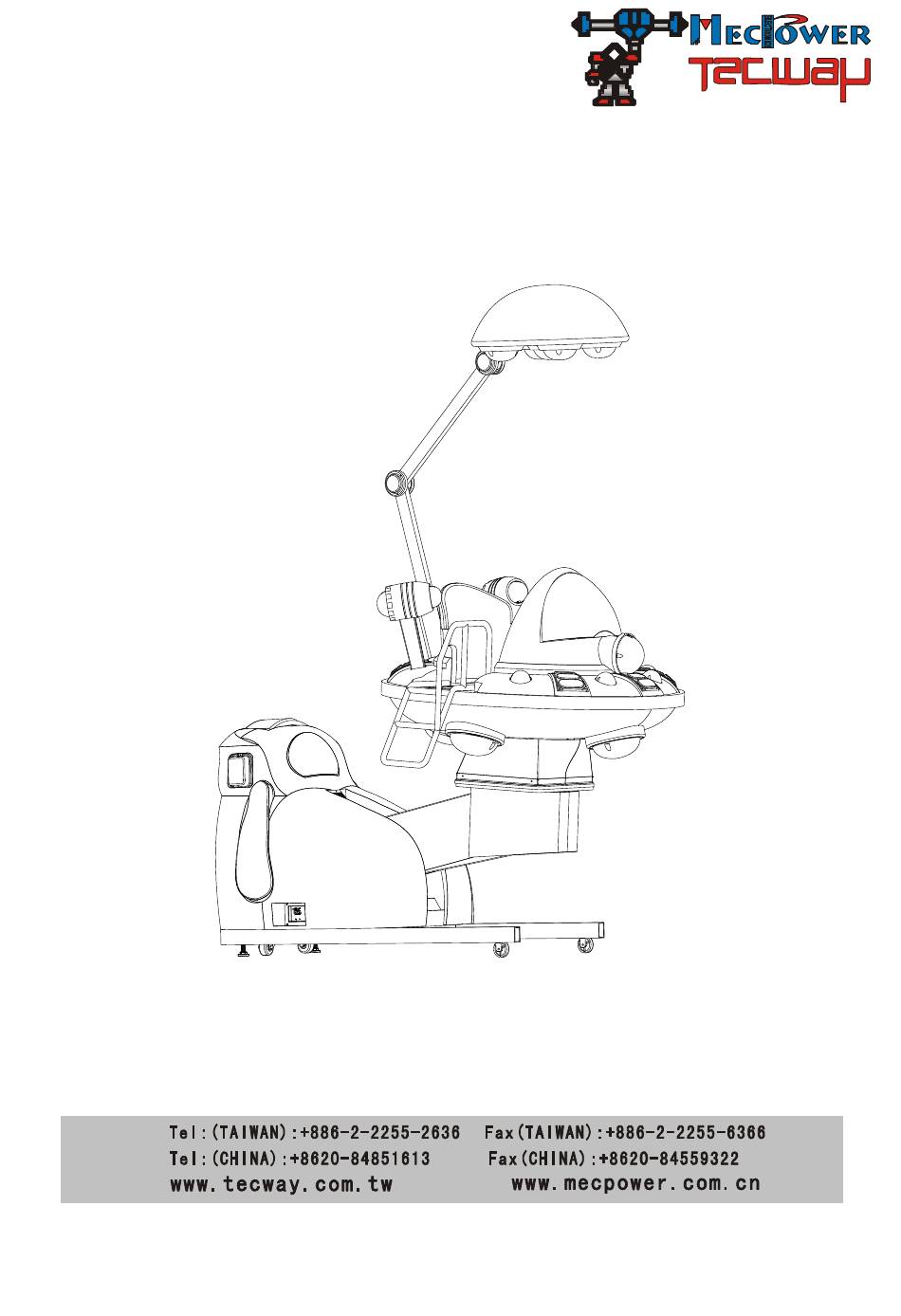

  • Page 1 OPERATION MANUAL FOR UFO...

  • Page 2: Safety Attentions

    ATTENTIONS Please read the manual first before operating this machine. Please pay attention to the items marked in “note”. Safety Attentions 1) Certain part of the game is with high voltage. Adjust the game by technician. Do not open the game door unless maintenance or parts replacement is required. 2) Please switch off the power before checking and maintenance.
  • Page 3 Notes of Maintenance 1) Be sure to check and maintance the game regularly. 2) Switch off the power before replacing the parts of the game. 3) The parts for replacement should be the same model as the old one. 4) Please check the connection and voltage output after replacing the power supply.
  • Page 4 2. Properly sit in the seat with the safety belt. 3. Press START button to start the game. 4. Control the steering wheel to operate your UFO and hit as many meteorites as you can to score the points. 5. During your game time, the kiddie ride will go up and down and rotate.

  • Page 5: Technical Parameters

    TECHNICAL PARAMETERS Voltage: AC 220V/110V（50/60HZ） Max. current: 5.2A/10.4A (Note: The proper voltage and current used accords to the nameplate at the back door of the game.) Max. power: 600W Power (standby mode): 80W Coin size: φ21mm φ31mm(diameter) 1.2mm 2.5mm(thickness) Capacity of coin box: about 1050 pcs with coin size φ25mm*1.5mm Location required: indoor use;...
  • Page 6 Area required for operation: W1630mm* H2600mm 1630 Accessories: 1285＃ 1396＃ power supply manual...

  • Page 7: Installation

    INSTALLATION Choose a proper location for the game and keep a certain space for game operation, as below drawing shown: 0.5m 0.5m 1630 2630 1630 Note: Please install the game on the flat floor. Check the connection: 1. Check if the inner structure of the game is loose caused by transportation or the terminals drop.
  • Page 8 漏电保护开关 Circuit breaker 电源线插头 Socket 市电插盒 Attentions: a) Please make sure the power cord is not pressed by wheel, foundation, etc. Otherwise, the wire will be damaged to cause short circuit, even fire. Do not use strong power to extend and wring the wires. Do not make the wire be near to the high temperature object.
  • Page 9 c) Do not touch the plug with wet hands. d) Make sure the voltage and fuse used are proper. ！ w a rn in g B e fo re in p u tin g th e p o w e r, p le a s e c h e c k th e re sis ta n c e b e tw e e n in p u t p o rt a n d G N D . M a k e s u re th e co n n e c tio n is p ro p e r.

  • Page 10: Daily Operation

    3. Confirm the cabinet of game is without damages and burrs. 4. Confirm the surface of game is clean and with proper marks. 5. Confirm the main parts of the game (ladders, seat, etc…) are securely fixed. Daily operation: Please properly refer to the instructions above to check the game before operation. After operation, please collect the coins and keep record of the coin meter.

  • Page 11: Game Setting

    GAME SETTING Setting board: Setting board 设置板 设置板 Setting board SELECT 选择 Select 设置 TEST ENTER 更改 Change SERVE ERASE 免费 Free play TEST: Enter into or exit the set item. SELECT: Change to select the set items. ENTER: Change the value of selected item. SERVE: For free play.

  • Page 12: Game Settings

    Game settings: Instructions: open the coin door to find the setting board. Press TEST key to enter into setting menu, press SELECT key to choose the item you would like to set, press ENTER key to change the value of the selected item. SETUP 1 COIN[S] 1 CREDIT[S] GAME TIME 30 SECONDS...
  • Page 13 ADJUSTMENT Adjust the coin mech: adjusting chip of entrance sample coin chute micro-adjust resistance power/signal input GRAY COUNTER(+/-) DC+12V coin reject bar COIN SIGNAL WHITE BLACK GROUND GRAY COUNTER(-/+) COIN signal SW N.O. accurate normal N.C. 100ms SLOW 50ms MEDIUM COIN signal wavelength 25ms FAST adjusting SW...

  • Page 14: Check And Maintenance

    CHECK AND MAINTENANCE Daily check ITEMS DESCRIPTIONS Coin mech Check if the coin mech can work properly. Sensors Check if the sensors for game’s movement can work properly. Sound Check if the sound is proper. Display Check if the display is proper. Motor Check if the motor can work properly.

  • Page 15: Troubleshooting

    Bad connection of encoder. Check and reconnect the wires. direction of the Encoder is bad. Replace the encoder. UFO of the game. No power input. Check the voltage and connection. No display. No VGA signal input. Check the main board and VGA wire.
  • Page 16 PARTS DRAWING AND PARTS LIST Marquee: NAME Fiberglass 3-color light board White lens 150mm Joint vacuum form 1 Joint vacuum form 2 Bracket Bracket vacuum form 1 Bracket vacuum form 2 Control assembly for lights: NAME Power supply Light drive board 3-color light control board PCB holder...

  • Page 17: Main Board

    Main board: NAME Main board Holder for main board Coin door: NAME Setting board Meter Coin door Coin mech Lock 1285 Coin box Lock 1396 Steering wheel: NAME Holder Encoder EC16 Encoder holder Encoder sleeve Steering wheel base Nylon sleeve Bearing Shaft Steering wheel...
  • Page 18 十一、 配线图 Bla8 顶灯箱走灯板1-5 O 10 B/W3 三色走灯板 +12V G/W3 R/W3 B/W3 信号3 G/W3 O/W3 信号2 R/W3 信号1 飞碟外圈走灯条 O 18 O/W3 电眼 +12V 升 降电机复位电眼 B/W4 Bla13 B/W4 G/W4 信号3 G/W4 信号2 O 17 主机板连网接口 电眼 R/W4 R/W4 信号1 旋转电机复位电眼...
