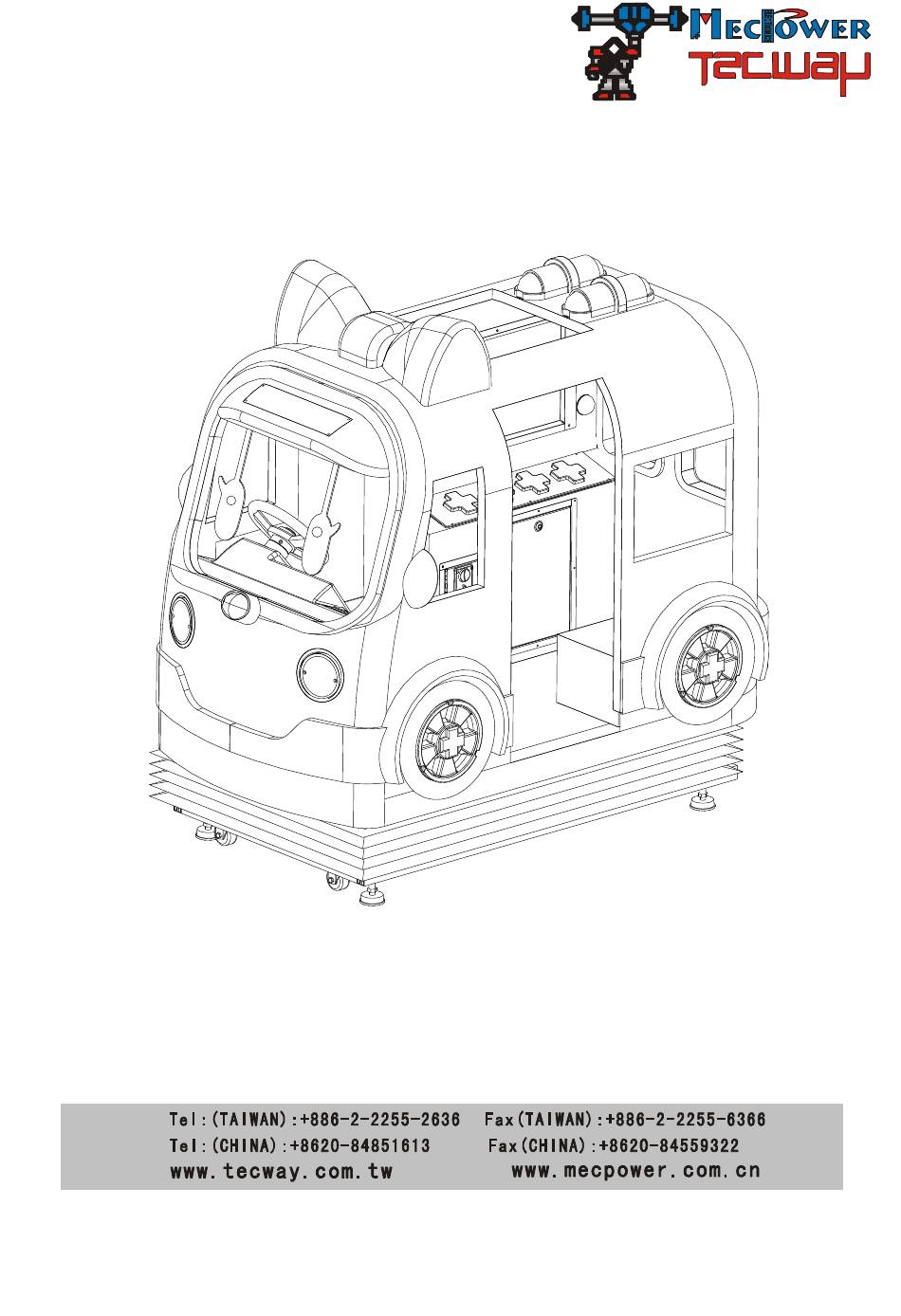

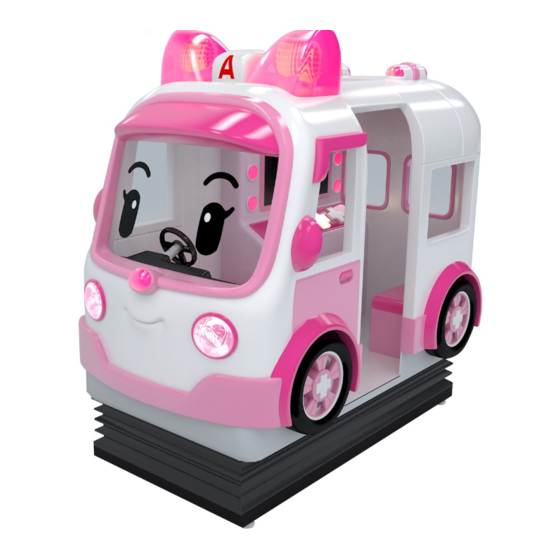

  • Page 1 Amber Bus manual...
  • Page 2 In order to prevent any problems arising from improper operation, you must carefully read this manual before installation and use machine, pay attention to the items marked in this book. Please keep this book in good condition for future reference. Summary ...
  • Page 3 Safety Attention 1) The machine has a high-voltage at internal part, the adjustment must be operated by technician to avoid any personal injury or damage caused. 2) When checking and maintaining, please cut off the power before proceeding. 3) Please shut off the door of machine. Before opening the door, please turn off the power switch.
  • Page 4 Using attention The voltage range of the machine is between 105V ~ 115V / 215V ~ 225V. The rated working voltage is 110V / 220V. The specific working voltage is shown on the nameplate of the machine door. The use of the machine voltage must be correct, otherwise it will make the machine hard to repair damaged.
  • Page 5 Cleaning Wipe the machine with a clean, soft cloth. To avoid any damage on the surface, please do not clean the machine with the stuff below.  Deteriorated cleaner  Acidic cleaner  Pesticides, disinfectants, alcohol or other chemical products Attention for movement or transportation When moving or transporting, please pay attention on disassembly to prevent damage to the machine.

  • Page 6: Table Of Contents

    CONTENT GAME MACHINE INTRODUCTION ............... 6 HOW TO PLAY ....................7 TECHNICAL PARAMETERS ................10 MOVEMENT ...................... 12 INSTALLATION ....................13 ELECT THE AREA ....................13 OW TO FIX ....................HECK CONNECTION BEFORE POWER INPUT .............. OWER INPUT ....................15 CHECK BEFORE OPERATION ................17 DAILY OPERATION..................

  • Page 7: Game Machine Introduction

    1. Game machine introduction...

  • Page 8: How To Play

    2. How to play The machine can be played for two people at the same time, but two different roles in the game; one person controls and plays at the steering wheel, another person controls and plays at the screen. Two roles cooperate to play the game, ideal for parent-child play or friends.
  • Page 9 The way to play：Take care or repair POLI member by pressing the four buttons corresponding to the screen；press different button at different step. During the game, there are two tips shown at the same time to let player know which button should be pressed to complete the task. One of tips is on the monitor：...
  • Page 10 to the four game buttons on the machine, when a tip box on the screen appears pointing to a game button icon then the player presses the corresponding game button. The second tip is the game's own tip on the buttons, when a game button lights up, you need to press the light button.

  • Page 11: Technical Parameters

    3. Technical parameters Using voltage：AC220V/110V（50/60HZ） Max currency：0.5A/1.5A （Remark：Actual using voltage and currency are depends on the nameplate on machine.） Maximum power：300W Standby power：60W Token diameter：φ21mm φ30mm Token thickness：1.2mm 2.5mm Capacity of coin box：φ25mm*1.5mm around 1400pcs token Environment ： room temp. -5 C, ambient humidity ＞...
  • Page 12 Spare parts： Photo Name Spec/Model No. Bayonet LED White Fuse 5A（small） 1285＃ 1396＃ Power cord Manuel...

  • Page 13: Movement

    4. Movement First, loose the nut of foundation to rise up and touch the nut at machine’s bottom F o u n d a t i o n W h e e l 2) Unplug the power cord from power supply box. 3) Can push machine from the front or back side.

  • Page 14: Installation

    5. Installation Please follow the steps of installation at the first time. Select the area Place the machine with the same type of others according to its play classification and appearance. Please refer to the suggested position and dimension below to place machine. Make an enough space for daily normal operation and ensure customers can play comfortably.

  • Page 15: How To Fix

    5.2 How to fix Foundation Wheel 5 mm 5.3 Check connection before power input Check the internal structure of the machine for any looseness caused by transportation. The wire connector terminals should not fall out of the port. Check the ground wire is connected to the ground. Check the machine's power input at both ends of the impedance to the ground should be greater than 100 megohm.
  • Page 16 Attention Do not put heavy stuff on the power cable. That could cause a short circuit, even a fire. The wire cannot be forced to stretch and bend. Do not expose the wire to near the stuff with high temp. Do not put wire where to be kicked or touched easily.

  • Page 17: Power Input

    Power input 1) Ensure machine’s input voltage is same as the nameplate. 2) Turn on the power switch after inputting the power. Insert the sample token into the coin acceptor, put the coin into the coin acceptor and confirm that inserting coin is normal. 4) Check all LED display and lights are ok.

  • Page 18: Check Before Operation

    6. Check before operation To ensure the machine can work properly and safety concern, it is necessary to do daily inspection before the operation. Check the items below： 1) Power input wiring is fixed well and no damage. 2) Ensure machine is fixed well. 3) Confirm there’s no damage on the appearance.

  • Page 19: Game Setting

    8. Game setting Setting button instruction S e t t i n g b o a r d Setting board SELECT Select button Set button OK button TEST ENTER Free SERVE ERASE button TEST/set button：Enter game setting menu/switch the item ENTER/OK button：Increase/decrease the value SERVE/free button：Free play...

  • Page 20: How To Set

    How to set Press “TEST” on setting board to enter setting menu; select the item by pressing “TEST” again, and change the change the item by pressing “ENTER” Setting instruction Settings Setting menu Language Chinese Demo Music ON Game Time 60 Volume Coin Reset...

  • Page 21: Adjustment

    9. Adjustment Coin selector adjustment Token entry regulator Currency slot Token tolerance trim resistor Power/Signal input GRAY COUNTER(+/-) Withdrawal DC+12V WHITE COIN SIGNAL BLACK GROUND COIN signal normally GRAY COUNTER(-/+) lever switch N.O. 精准 正常 N.C. COIN signal 100ms SLOW 50ms MEDIUM 25ms FAST wavelength adjustment...

  • Page 22: Volume Adjustment

    Volume adjustment Amplifier Board Amplifier Board Volume Potentiometer Volume Adjustment 1）Open the coin door and find the volume potentiometer on amplifier board, adjust the volume by turning it. Turn the potentiometer clockwise to make the sound louder; turn counterclockwise to make it smaller.

  • Page 23: Maintenance

    10. Maintenance !Warning Non-professional technicians do not check and maintain to avoid personal injury and damage to the machine. Ensure to turn off the power then do the maintenance Do not pot tools or other object in machine to avoid any malfunction. After inspection, please install all parts and tighten the screws.

  • Page 24: Troubleshooting

    11.Troubleshooting Situation Caused reason Troubleshooting There is no currency Put the coin in currency slot. coin in slot. Can not Adjust the sensitivity of the token. The sensitivity of the insert the token is too high. coin Coin selector is damaged Change the coin selector.

  • Page 25: Components Exploded Diagram And Parts List

    12. Components exploded diagram and parts list 12.1 FRP components exploded diagram and parts list 03 04 05 Name QTY. Name QTY. Speaker（4.5 inch） Light belt(Red,10cm） Front warning light Speaker net cover Light cover of nose Speaker（4 inch） LED light board Indicator light of (white half) direction（white）...

  • Page 26: Coin Door Components Exploded Diagram And Parts List

    12.2 Coin door components exploded diagram and pars list Name QTY. Setting board Meter Coin door Short key 1285 Coin selector Short key 1369 Coin box Hardware frame of coin box 12.3 Eye components exploded diagram and pars list Name QTY.
  • Page 27 12.5 Repair door and PCB components exploded diagram and pars Name QTY. list Floor handle Short key 1285 Amplifier board Repair door Frame of repair door Power supply(5V3A12V11A) Fixer for power supply Power adapter (12V4.5A) Solid state relay Electrical installation floor 1 Electrical installation floor 2 Motor drive board (3...

  • Page 28: Repair Door And Pcb Components Exploded Diagram And Parts List

    12.7 Steering wheel components exploded diagram and pars list 0 4 0 3 1 1 1 0 1 3 1 2 Name Name Friction plate Steering wheel base Friction plate（leather） Spring（3-29） Friction switch Spring（3-12） Bearing（6202） Motor（12V180K） Microswitch Rack of motor Spring Sensor Coupling shaft...

  • Page 29: Monitor And Control Panel Exploded Diagram And Parts List

    12.8 Base components exploded diagram and pars list Name QTY. Name QTY. 01 Underframe Limit cushion 2 02 Filter Joint bearing 2 03 Mounted bearing（MZD P204） Hex nut（M16） Self-aligning ball bearing Self-aligning ball bearing（ （2304） 2202） Left/Right bearing pedestal Upper and lower bearing base 06 Support shaft Left and right eccentric axis 07 Limit cushion 1...

  • Page 30: Steeling Wheel Exploded Diagram And Parts List

    13. Circuit diagram O1-O11 220V Bla1-11 滤波器 220V R1-3 电源盒 电源输入 油表电机 时速电机 +12V 电机驱动板 Br1-1 Bla11 Bla1 固态 前顶灯带1 Bla10 继电器 前顶灯带2 R1-1 4寸8Ω30W　 按键控制板 前顶灯带3 R/Bla2 290378 摇摆电机 Bla2-2 Enter 前顶灯带4 G/W2 Y/G1-1 Select B1-1 前顶灯带5 Serve Y/W2 Test Br1-2 前顶灯带6...
