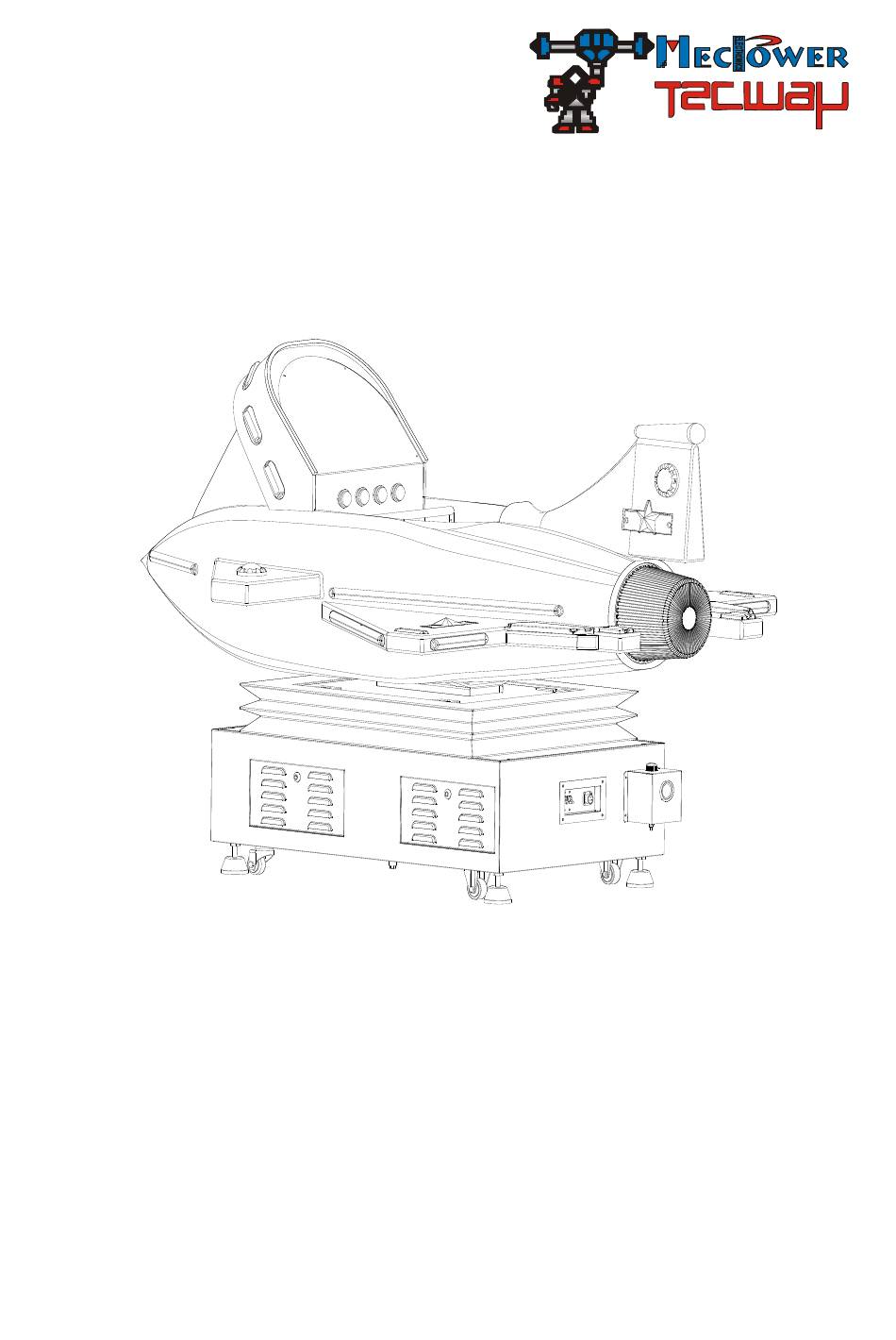

- Page 1 Kiddie Jet...
- Page 2 In order to prevent the variety of problems which caused by incorrect operation，Please read the manual first before operating this machine and pay attention to the items marked in “note”. Please keep this manual carefully for checking when needed. Summary ...
- Page 3 Safety Attentions 1) Certain part of the game is with high voltage. Adjust the game by technician. Do not open the game door unless maintenance or parts replacement is required. 2) Please switch off the power before checking and maintenance. 3) Please switch off the power before opening the game door.
- Page 4 Notes of Usage 1) The voltage range of the game should be 105V~115V or 215V~225V. The proper voltage should be 110V/220V. The specific voltage accords to the date plate on the back door of the game. The voltage must be correct;...
- Page 5 Notes of Clean 1) Please use clean and soft cloth to clean the game. 2) Prevent damaging the surface of the game, please do not use the following cleanser: Alterative Cleanser； Acidic Cleanser； Insecticide, sterilized water, alcohol or other chemical cleanser. Notes of Moving and Shipping 1) Properly disassemble the game for necessary moving and shipping.
-
Page 6: Table Of Contents
CONTENT GAME INTRODUCTION ..................7 TECHNICAL PARAMETER ................... 8 MOVEMENT ......................10 INSTALLATION ......................11 CHOOSE THE LOCATION FOR INSTALLATION ......11 CHECK AND SET BEFORE CONNECTING THE POWER ....12 CHECK AND ADJUST AFTER CONNECTING THE POWER....13 CHECK BEFORE OPERATION ................. 13 DAILY OPERATION .................... -
Page 7: Game Introduction
1. Game introduction Playing Tips： Ride on the Kiddie Jet and insert coin, press the start button to to start the game. You will encounter the enemy aircraft, press the fire button to hit them, the more aircrafts you hit the higher score you will get. -
Page 8: Technical Parameter
2. TECHNICAL PARAMETER VOLTAGE: AC 220V/110V（50/60HZ） MAX. CURRENT：6A/12A (Note: please refer to the nameplate located on the back of the games to check actual usage of voltage.) MAX. POWER: 1200W COIN SIZE：φ21mm ~ φ30mm (diameter) 1.2mm ~ 2.5mm (thickness) CAPACITY OF COIN BOX: 1200pcs of coins with coin size φ25mm*1.5mm LOCATION REQUIRED: -5 ~ 40℃, humidity is less than 90%. - Page 9 Parts shipped with the game: Green\Red each 2 Red 、 Green 、 Blue each 2 1285 ＃ 1396 ＃ Power Cord Manual...
-
Page 10: Movement
3. Movement Direction of movement diagram ： Note: when the road surface is uneven during moving or when you tilt the machine, please pay attention to the strength and hang the chassis in the air to prevent damage to the air sac. WARNING ... -
Page 11: Installation
Please follow the direction below to install the game. 4.1 CHOOSE THE LOCATION FOR INSTALLATION 1) Put the Kiddie Jet in the same type of Kiddie Ride with monitor then select the concrete placement machine according to the machine's exterior. -
Page 12: Check And Set Before Connecting The Power
4.2 CHECK AND SET BEFORE CONNECTING THE POWER Please check whether the parts of cabinet are loose caused by moving, and the wire terminal should not drop out from the port. Check whether the GND is connected. Please check whether the resistance of power input at the both ends for GND is more than 100 megohm. -
Page 13: Check And Adjust After Connecting The Power
4.3 CHECK AND ADJUST AFTER CONNECTING THE POWER 1) Make sure the input voltage is same as the one stated on name plate on the back door of the game. 2) After connecting the power, please switch on the game. 3) Inserting coin to check if the coin machine cans work properly. -
Page 14: Daily Operation
6. DAILY OPERATION 6.1 INPUT POWER TO OPERATE 1) Turn on the machine power switch. Visually check the game and confirm the display can work properly. Check the sound if it is ok. Confirm the coin mech, fire button and the machine movement is normal. -
Page 15: Game Setting
7. GAME SETTING 7.1 KEYS FOR SETTING Setting Board SELECT setting TEST ENTER change free SERVE ERASE SELECT: Choose the setting item. TEST: Enter into the setting menu or skip to the next menu. ENTER: Change the setting. SERVE: Free to play. -
Page 16: Setting Method
7.2 SETTING METHOD Setting method: press “TEST” to enter into the game setting menu → press the “SELECT” to choose the setting item →press “ENTER” to change the setting → press “TEST” exit setting. 7.3 SETTING DESCRIPTION 1) Game setting interface： SETUP 1 1 COIN[S]/1 CREDIT[S] MODULATE VOLUME 20... - Page 17 2) Testing the display When the screen color is no white, the display can be judged to failure.
-
Page 18: Adjustment
9. ADJUSTMENT 8.1 ADJUT THE COIN MECH adjusting chip in coin entrence sample coin chute Micro-Resistance Port For Power/Signal Input GRAY COUNTER(+/-) coin-return DC+12V COIN SIGNAL WHITE BLACK GROUND switch for coin signal pole GRAY COUNTER(-/+) N.O. 精准 正常 N.C. 100ms SLOW 50ms MEDIUM Adjusting Switch For... -
Page 19: Main Board Adjustment
decrease the sensitivity, that is, the range will be smaller and choose the token more strictly. 8.2 MAIN BOARD ADJUSTMENT Diagram of main board: Descriptions: Annulling Button: pressing this button can set the Game Setting to default and clear the data of Coin and Ticket saved in PCB. Volume Adjustment: Use a flat screwdriver to twist the volume potentiometer to adjust the volume level of the machine. -
Page 20: Check And Maintain
9. CHECK AND MAINTAIN ！warning Please check and maintain the game by technicians. Please power off the game when check and maintain. Please do not put any tools into cabinet, otherwise it will cause problem. After checking, please tightly screw the screws and close the door. 9.1 Daily Check ITEM DESCRIPTION... -
Page 21: Troubleshooting
10. TROUBLESHOOTING If you have any problem in installing or using the machine, we recommend that you first check the following table for possible cause of the problem and solution before asking for technical support: PROBLEM CAUSES SOLUTIONS no sample coin insert sample coin Can't insert adjust the sensitivity, screw the resistance... -
Page 22: Schematic Diagram For Air Circuit System
11. SCHEMATIC DIAGRAM FOR AIR CIRCUIT SYSTEM filter reducing valve air valve air sac master air valve aiir compressor cheak calve pressure indicator pressure IN auto pressure switch air tank... -
Page 23: Schematic Diagram
12. SCHEMATIC DIAGRAM Bla6 amplify board Bla5 IN-L 8Ω15W insert main board 2 R/Bla1 Bla4 IN-R coin mech Bla2-1 R/Bla1 Bla2-1 button control board R/Bla2 R/Bla2 290378 Bla2-2 Bla2-2 ENTER SELECT SERVE TEST Y/W1 CON3 start button Y/W1 fire button1 signal fire button2 Grey1...
