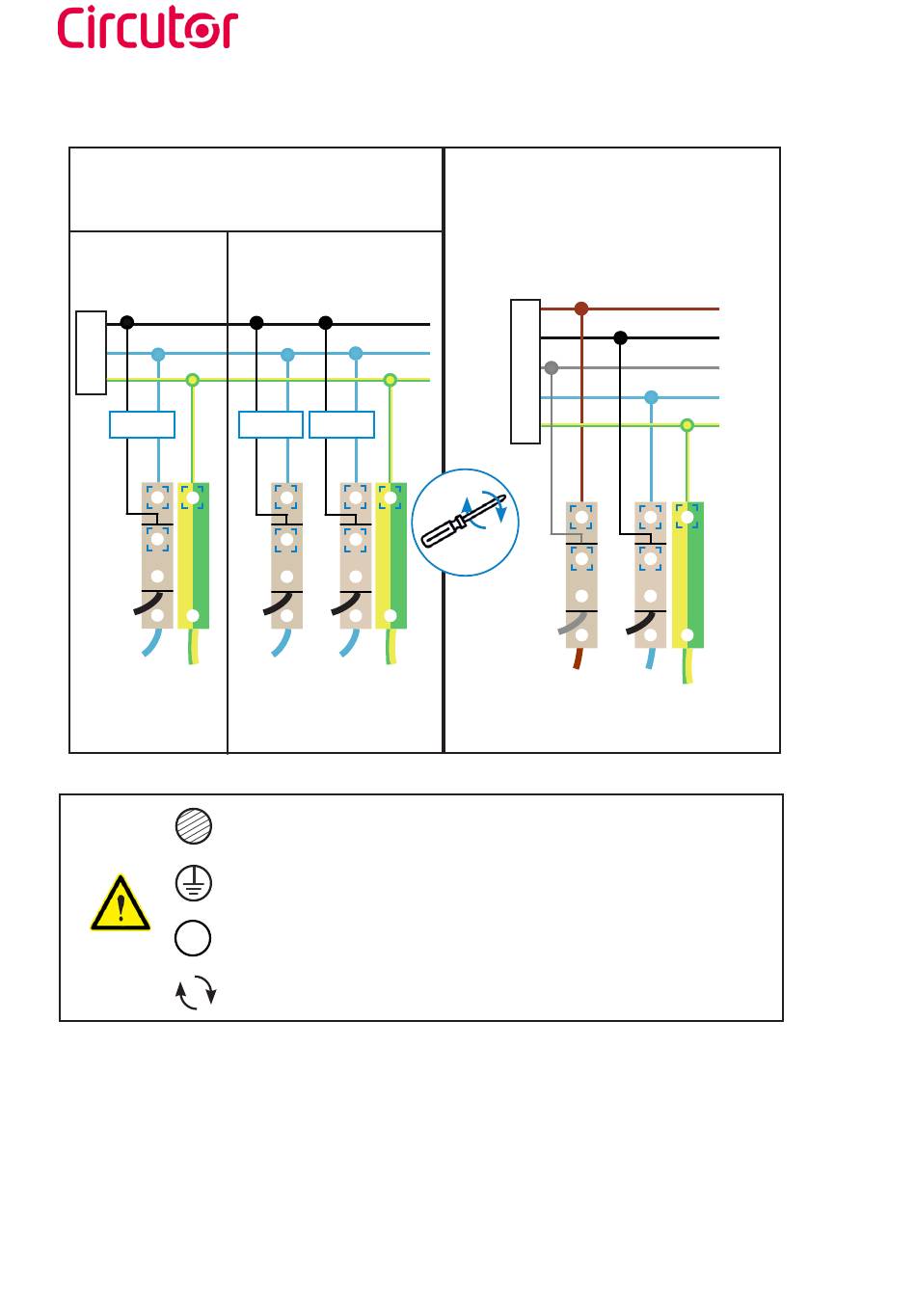

SINGLE-PHASE CHARGE POINT
Connect to the 230V~.
•
TWO
CONNECTORS
L
N
PE
Protections
Protections
LA
S
Terminal block maximum cross-section: 10 mm
Do not forget to connect the ground cable to the ground terminal
Type of cable allowed by the terminal block: Copper
Cu
Make sure all screws are securely tightened at 4...5 Nm
Note: The proper earthing system must be TT or TN-S. The ground loop impedance measurement
for the entire installation must be less than 80 ohms; however, it could be even less if required
by national regulations. At least once a year it is recommended to carry out the verification of the
installation grounding by qualified personnel when the terrain is drier.
18
ONE
CONNECTORS
Protections
A B
L B
NA NB
THREE-PHASE CHARGE POINT
Connect to the 400V~.
•
• If the Power Supply is Single-Phase,
connect L1 and N.
L1
L2
L3
N
PE
