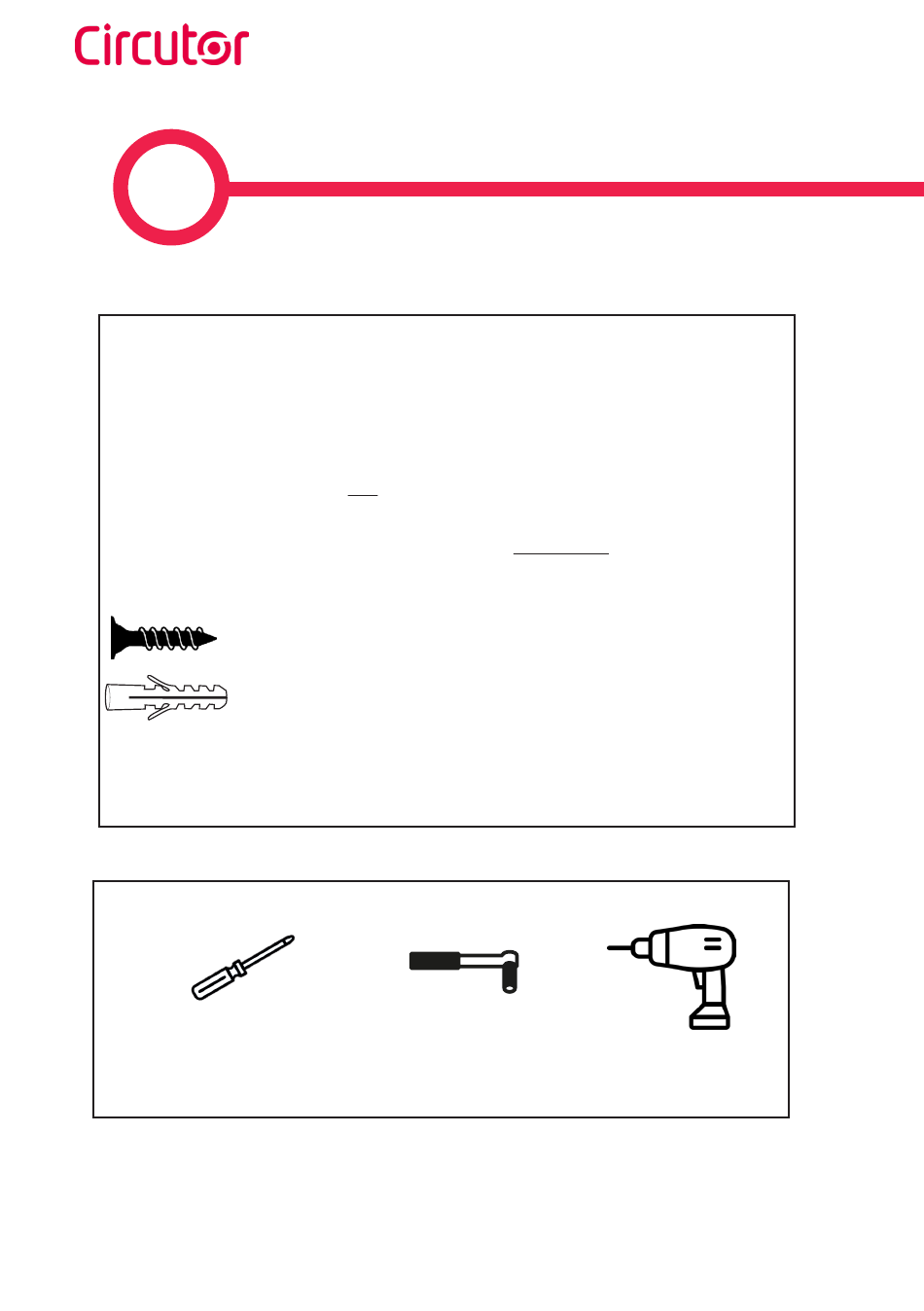

Material:
• Allen wrench of 2,5 mm is included in the installation kit.
Screws, sealing washers and plastic anchors are not included.
•
• The fastening system of the Charge Point has been designed to be
installed on a wall.
»
»
Tools:
Screw driver
(2) Ratchet tool can be used to open/close the Charge Point if required by the conditions of installa-
tion.
12
This system has been tested on a concrete wall, to be securely fixed in
such conditions is recommended to use:
3 x Inox A2 wall screws: DIN 7982 Ø4,8x3
3 x plastic anchors: 6x40 or 8x40
If the wall surface has different properties, the screws and plastic
anchors must be defined by a qualified installer.
Ratchet
2.5mm Allen
Driller
(2)
Tap drill 6/8M
