Wiring

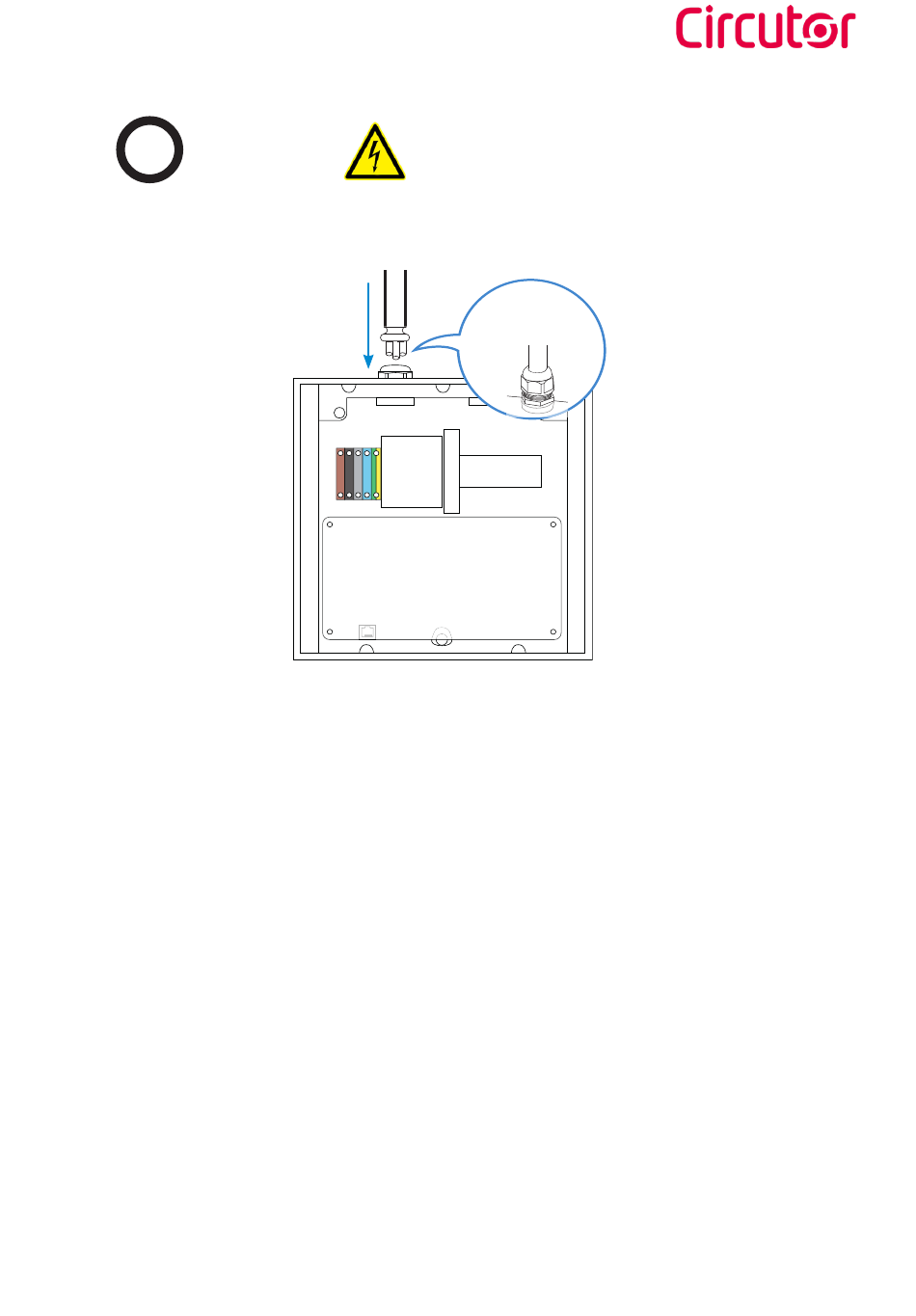

Use provided cable glands in order to mantain the IP protection
• The current of the power supply can be limited. In order to perform this adjustment please refer
to the Instruction Manual.
• The IEC-61851-1 ed 3 standard indicates that each plug shall have protections. In case the
Charge Point has no protections inside, they shall be upstreams. It is recommended that these
protections be as follows:
°
RCD: Residual current device. Standards: IEC 61008-1, IEC 61009-1,IEC 60947-2 or IEC
62423.
°
RCD(s) rated residual operating current not exceeding 30 mA.
°
For AC fault current, RCD(s) protecting that connecting points shall be at least type A.
°
RCD(s) shall disconnect all live conductors.
°
DC fault current shall be mesured by a RCD type B or a appropriate equipment that ensures
the disconnection of the supply in case of DC fault current above 6 mA.
°
MCB(s): Miniature circuit breaker. Standards: IEC 60898-1, IEC 60947-2 or IEC 61009-1.
°
MCB(s) minimun breaking capacity 4 kA.
Installation guide
Cable
glands M32
A A
B
