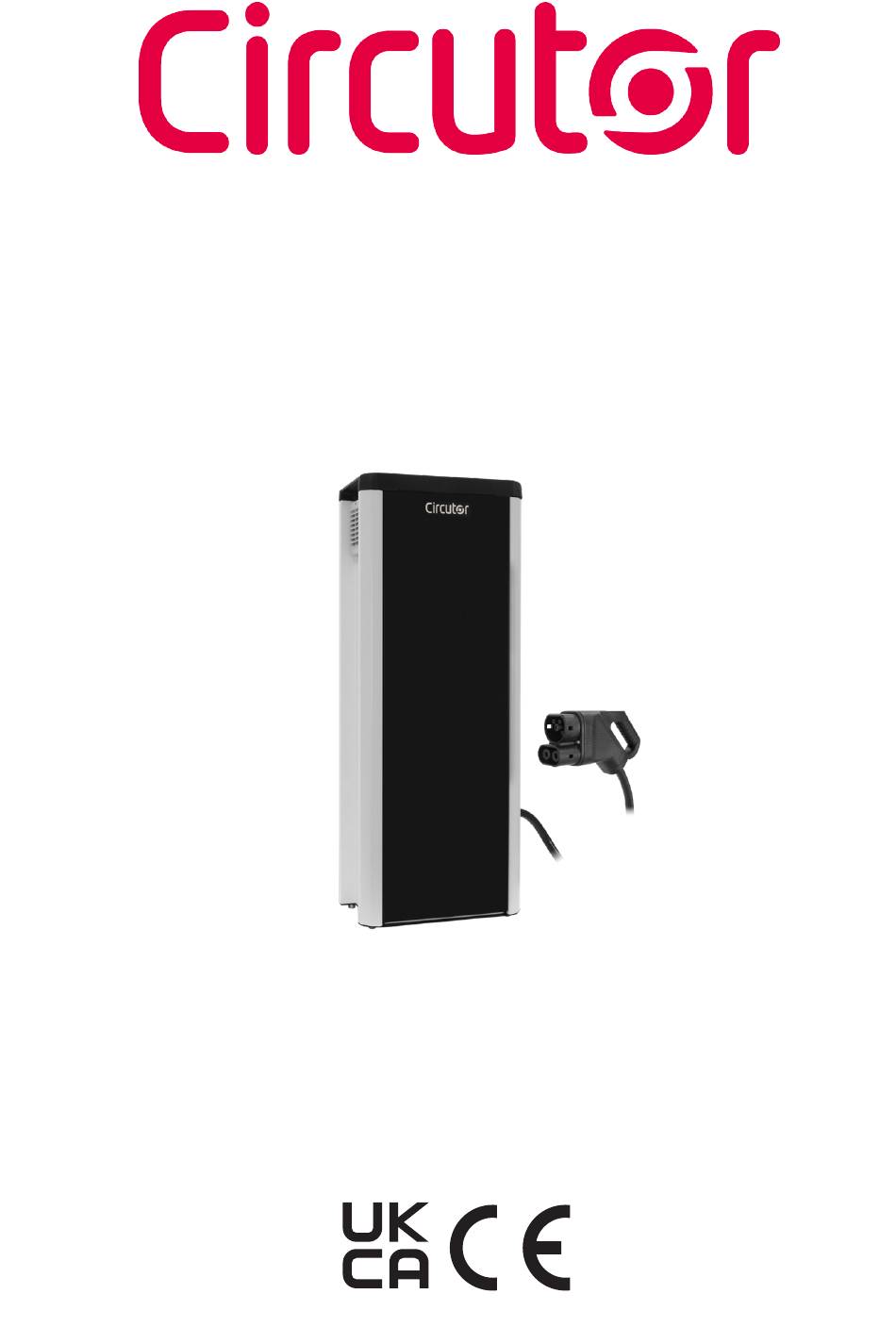

- Page 1 URBAN WB DC Series INSTALLATION GUIDE (M328A01-03-23A)
- Page 2 URBAN WB DC Installation Guide...
-
Page 3: Disclaimer
CIRCUTOR S.A.U. reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR S.A.U. on its web site, supplies its customers with the latest versions of the device speci- fications and the most updated manuals. - Page 4 All other product names or trademarks are properties of their respective owners. CIRCUTOR reserves the right, in its discretion, to make any amendments, corrections or changes to this manual and its contents at any time, without obligation to give prior notice.
-
Page 5: Table Of Contents
URBAN WB DC Contents Disclaimer ............................3 Revision log ............................3 Contents ............................5 1.- So, hello! .............................. 6 2.- Before the installation ........................8 A.- Important Safety Instructions ....................8 B.- Electrical wiring considerations ....................9 C.- Important Electrical Safety Instructions ................10 D.- EVSE Classification .......................11 E.- Storage .......................... -
Page 6: So, Hello
URBAN WB DC So, hello! This manual provides commissioning and use instructions information about URBAN WB DC, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851. This document has different sections such as step-by-step installation procedure and technical data. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT SAFETY INFORMATION IN THIS DOCUMENT ELECTRICAL RISK... - Page 7 URBAN WB DC • Compliant with IEC 61851; Electric vehicle conductive charging system (IEC 61851- 1 and IEC 61851-23). • Compliant with IEC 62196; Plugs, sockets-outlets, vehicle connectors and vehicle inlets- Conductive charging of electric vehicles (IEC 62196-1, IEC 62196-2 and IEC 62196-3).
-
Page 8: Before The Installation
IEC 61851. for users (broken plugs, caps that don’t close...). • Do not modify this device. If modified, • Use only CIRCUTOR supplied spare CIRCUTOR will reject all responsibility parts. and the warranty will be void. • Do not use this product if the... -
Page 9: B Electrical Wiring Considerations
URBAN WB DC B Electrical wiring considerations Take into consideration this section before start wiring con- nections of the Charge Point. 1.- ELECTRICAL PROTECTIONS Charge Point may not include elements of electrical protection. If this equipment has internal electrical protections, are installed in each socket-outlet for the protection of the user against an electrical failure, according to the international standard IEC 61851- 1:2017. -
Page 10: C Important Electrical Safety Instructions
URBAN WB DC 4.- MAXIMUM OUTPUT POWER Depending on the input power line, you can carry out the charging sessions to the electric vehicle with different output power, it is possible to limit the maximum output power by software so as not to exceed the available input power. -
Page 11: D Evse Classification
URBAN WB DC D EVSE Classification Classification of the unit according to the IEC 61851-1:2017: 1 — Power supply Input • EV supply equipment connected to AC supply network • Permanently connected 2 — Power supply Output • DC EV supply equipment 3 —... -
Page 12: E Storage
URBAN WB DC E Storage Whenever possible, the Charge point must be unloaded in their place of installation and operation. In case of unloaded to a temporary location for storage, it is convenient to not remove the packaging and store them meeting the following minimum requirements: •... -
Page 13: F Unloading And Handling
URBAN WB DC F Unloading and handling All processes of unloading and handling of the Charge Point must be executed and monitored by qualified personnel attending to the significant weight of the unit, complying with safety rules and using the appropriate points of support. Important notes: •... -
Page 14: Dimensions And Overview
URBAN WB DC Dimensions and Overview A Dimensions Charge point, units specified in millimetres. Installation Guide... - Page 15 URBAN WB DC Wall plates: Installation Guide...
-
Page 16: B Overview
URBAN WB DC B Overview Description Wall support Key lock access Base Ventilation LED beacon light Cable output Power input Installation Guide... - Page 17 URBAN WB DC Installation Guide...
-
Page 18: Installation
URBAN WB DC Installation What is needed: Wall plates Fixation screw Cable roller plate Wall screws Anchors Cable holder Screws and anchors are NOT INCLUDED. It is highly recommended that the Charge Point would be installed in brick or concrete wall. Before the installation, a qualified installer must check that the wall is in a perfect condition, and which screws and anchors are suitable for that conditions. -
Page 19: A Minimum Distances
URBAN WB DC A Minimum distances When installing the device, some space shall be reserved for usability, maintenance and safety reasons. Please comply accordingly to your country specifications. The next picture shows the minimum distances: Measures in mm Front view y distance shall be chosen according to your country rules. -
Page 20: B Plates Fixation
URBAN WB DC B Plates fixation Install the plates on the wall considering the distances and the wall holes template shown on the image below: Measures in millimeters Front view Install the cable roller plate together with the cable holder ONLY on the wall next to the Charge Point, as shown on the image. -
Page 21: C Positioning
URBAN WB DC C Positioning Place the Charge Point on the previously installed wall plates. Installation Guide... -
Page 22: D Opening
URBAN WB DC D Opening 1.- Introduce provided URBAN WB DC security key in the lock located at the top part of the device and the electric cabinet key at the bottom lock of the device. Then, the device is unlocked and ready to be opened. 2.- Pull outward the Tamper switch to operate the Charge Point. -
Page 23: E Device Fixation
URBAN WB DC E Device fixation Once the charging point is opened, tighten the provided fixation screw in the lower wall plate in order to secure the device to the wall and make sure all components remain as by default before proceeding. -
Page 24: F Connections
URBAN WB DC F Connections Put your electrical connections inside the Charge Point, introducing cables through the rounded lower part, as indicated in the pictures below. Upper Lower Cable entry Cable entry It is highly recommended to install around an extra 20 cm of power supply cables and store it in the Charge Point bottom cap to make maintenance tasks without disconnecting any wiring connections. -
Page 25: G Wiring
URBAN WB DC G Wiring THREE-PHASE CHARGE POINT Connect to the 400V~. Terminal block maximum cross-section: 16mm Type of cable allowed by the terminal block: Aluminium & copper Al/Cu Do not forget to connect the ground cable to the ground terminal Make sure all screws are securely tightened at 4...5 Nm Installation Guide... -
Page 26: H Verification
URBAN WB DC H Verification 1 . - P O W E R I N P U T Before proceeding, make sure voltage is present in the terminal blocks. Pay special attention to Neutral Cable. 2 . - M A I N T E N A N C E M O D E Pull outward the Tamper Switch located in the lower half of the Charge Point. - Page 27 URBAN WB DC How to use and configure Master and Slave URBAN WB DC In order to use and configure the Charging Station there is an User Manual: - Master-Slave User Manual To get it send a mail to: sat@circutor.com Installation Guide...
- Page 28 URBAN WB DC J Personal Protective Equipment (PPE) It is mandatory that all technical employees wear the following Personal Protective Equipment. It must be used for any electrical task such as the service and maintenance of the Charging Station. INSULATING SAFETY SHOES INSULATING GLOVES Class 0: 1000V Class 0: 1000V AC/1500V DC...
- Page 29 URBAN WB DC Installation Guide...
-
Page 30: Technical Data
URBAN WB DC Technical Data MODELS SPECIFICATIONS Models URBAN WB DC SLAVE Maximum AC input current Required power supply capacity 27 kVA Maximum output power 25 kW Output voltage range 150-920 Vdc Maximum output current 70 A Number of connectors Connector type CCS 2 Master communication... - Page 31 URBAN WB DC MECHANICAL DATA Protection degree IP54 & IK10 Enclosure door lock Security Key lock Enclosure material Aluminium & ABS Enclosure access Frontal door Indoor Cable support Cable roller Cable length 5.5 meters Weight 56 kg Dimensions (W x H x D) 382 x 984 x 236 mm STANDARDS CE / Combo;...
- Page 32 URBAN WB DC Installation Guide...
-
Page 33: Need Help
CIRCUTOR guarantees its products against any manufacturing defect for two years after the delivery of the devices. CIRCUTOR will repair or replace any defective factory product returned during the guar- antee period. • No returns will be accepted and no device will be repaired or replaced if it is not accompanied by a report indicating the defect detected or the reason for the return. - Page 34 URBAN WB DC Installation Guide...
- Page 35 URBAN WB DC Installation Guide...
