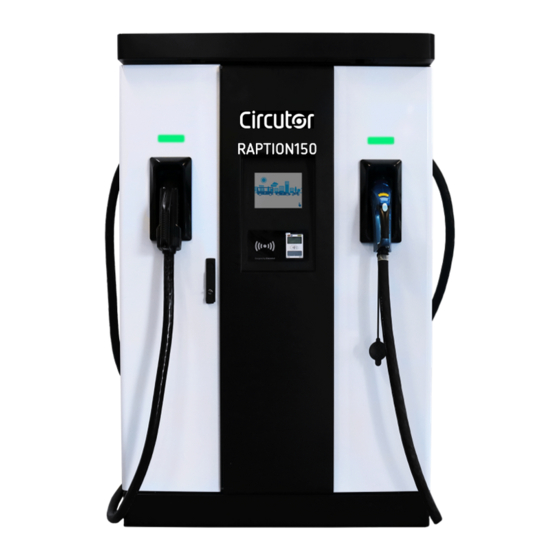

Circutor Raption 150C Series Instruction Manual
  1. Manuals
  2. Brands
  3. Circutor Manuals
  4. Automobile Accessories
  5. Raption 150C Series
  6. Instruction manual

Circutor Raption 150C Series Instruction Manual

Hide thumbs Also See for Raption 150C Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Raption 150C Series
INSTRUCTION MANUAL
(M358B01-03-22A)

Advertisement

Table of Contents
loading

Related Manuals for Circutor Raption 150C Series

Summary of Contents for Circutor Raption 150C Series

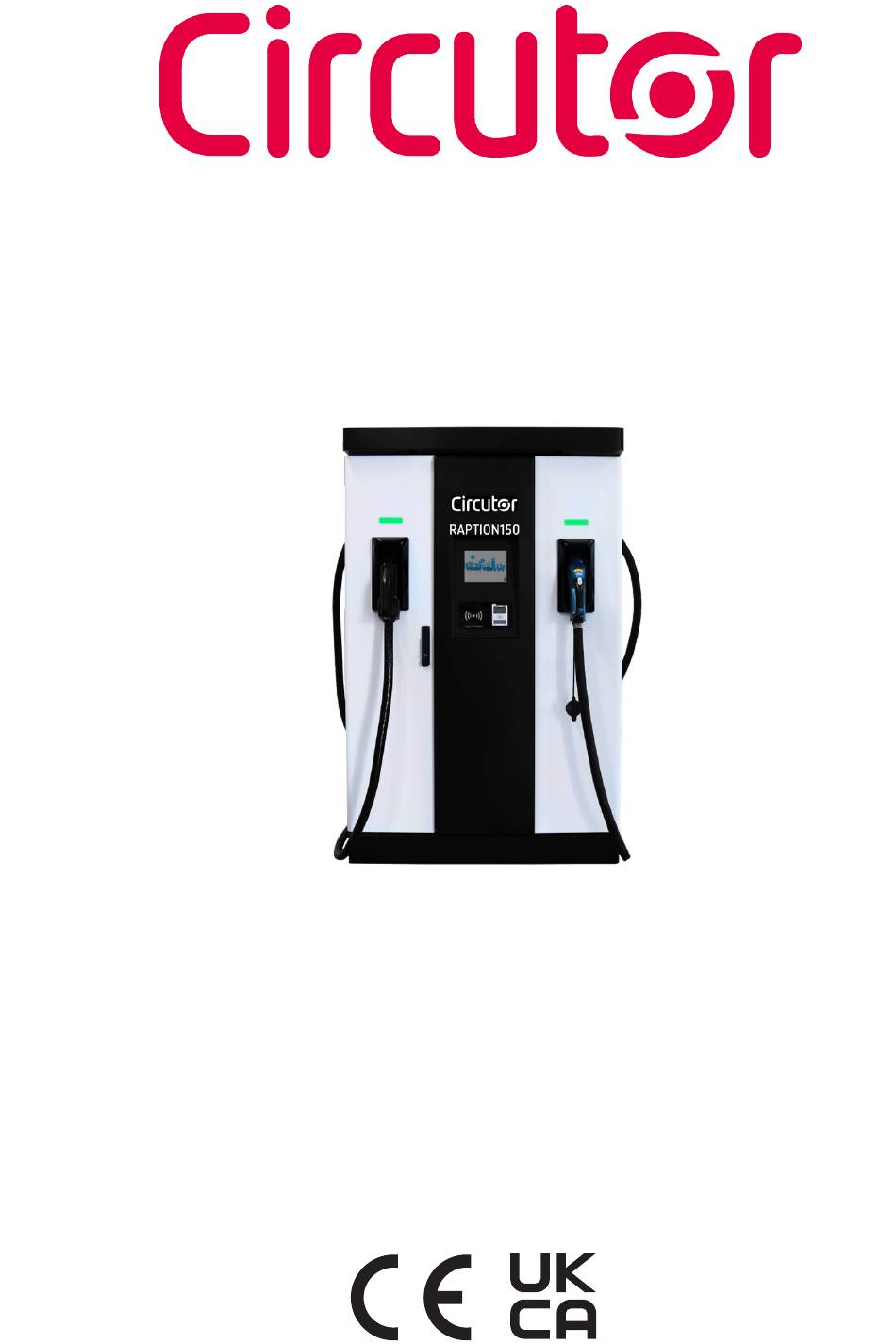

  • Page 1 Raption 150C Series INSTRUCTION MANUAL (M358B01-03-22A)
  • Page 2 Raption 150C Instruction Manual...

  • Page 3: Disclaimer

    CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifica- tions and the most updated manuals.
  • Page 4 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2022 by CIRCUTOR, S.A. All rights are reserved. CIRCUTOR, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.

  • Page 5: Table Of Contents

    Raption 150C Here’s your guide to use and configure Raption 150C Disclaimer ................................3 Revision log ............................... 3 Here’s your guide to use and configure Raption 150C ................5 1.- So, hello!............................... 6 2.- Features ............................... 8 A.- Main features ............................8 B.- Overview ..............................
  • Page 6 The CIRCUTOR Charge Point provides a 150kW solution for charging EVs. Its innovative and original design provides a quick and intuitive way for recharging the electric vehicles, according to the current regulations.

  • Page 7: So, Hello

    Raption 150C So, hello! Important safety instructions • Do not use the Charge Point for • Use only CIRCUTOR supplied spare anything other than electric vehicle parts. charging modes which are defined in IEC 61851-1. • Do not use this product if the enclosure or the EV connector is •...

  • Page 8: Features

    Charge Point. • Remote monitoring and control in real-time 4G: it can be done via CIRCUTOR software and also via OCPP integrations through the integrated router. In addition, by using a standard Web browser, you can access to the Charge Point and adjust the settings remotely.

  • Page 9: B Overview

    Raption 150C Features Overview 1- Cover 2- CCS light beacon 3- CCS holder 4- CCS connector 5- Handle 6- RFID reader 7- Card payment 8- Touch screen 9- Air inlet Unit 10- CHAdeMO light beacon 11- CHAdeMO holder 12- CHAdeMO connector 13- Power M.

  • Page 10: C Dimensions

    Raption 150C Dimensions • Units specified in millimeters: 1290 1140 Instruction Manual...

  • Page 11: D Status Beacon Lights

    Raption 150C Status Beacon lights Over each connector there is a beacon light, it indicates the state of charge in which the socket/connector is located. Colour Status Description Green Available The connector or socket is available to start a charging session Blue Charging...

  • Page 12: E Connectors

    • Simultaneous, CHAdeMO and CCS 2 connectors at the same time Optionally, Charge Point can be configured to work without simultaneity. It is required a specific configuration file. To obtain the appropriate configuration file please contact CIRCUTOR Support Department. Instruction Manual...
  • Page 13 Raption 150C DC Connectors Lock If your Charge Point is equipped with the ‘Mechanical connector locking’ accesory at DC holders, is not possible to pull back the connectors from holders without first unlocking it. System consists on a sensor for connector detection and the lock mechanism. CHA connector is locked by the Charge Point;...
  • Page 14 Raption 150C General The first time the Charge Point is powered on, the system will take around 10 seconds to start up, the screen will show next image: Version In the lower right corner, the firmware version is shown. After 10 seconds, the first screen that appears is the screensaver.

  • Page 15: How To Use It

    Raption 150C How to use it ? Tap over the screensaver, and the HMI will skip to the next screen: Depending on the optionals chosen, the identification methods shown in this picture can vary. At this new screen, the Charge Point is asking for showing the identification method the user is going to use in order to start a charge transaction, as you can see there are four possible options.
  • Page 16 Raption 150C Also, at this screen and during all the process is possible to change language, pressing on the top of the screen over the ‘Flag’ touch symbol: Next screen will appear, press over your language’s flag This option will allow user to change the language ONLY for the current Charge Transaction. When Charge Point returns to main or standby screen, it will return the default language, which is configured in the Setup Webpage.

  • Page 17: B Starting A Charging Session

    Raption 150C Starting a charging session Once you have shown your identification card, the HMI will show next screen: Wait while Charge Point authorizes the user. If everything is correct and the user is authorized, the HMI will show next screen: Instruction Manual...
  • Page 18 Raption 150C Now, the user can choose the connector, always depending of the sort of vehicle that you have and if the connector status is available: At any time it is possible to tap this button in order to go back to the “identification screen”.
  • Page 19 Raption 150C 2- Checking vehicle connection… Please wait In a few seconds, the charging session will start and the HMI will show the charging process. Tap this button in order to go back to the “identification screen”. Instruction Manual...

  • Page 20: C Special Events Starting A Charge

    Raption 150C Special events starting a charge A - “Not authorized”: some Charge Points could be working under the supervision of the main management system, called Back Office. It can generate a whitelist in order to register new users, manage charging sessions, etc. If the user is not authorized, the HMI will show the following message: B - “Authorization failed”: if there is some communication problem with the Back Office right at the connecting time:...
  • Page 21 Raption 150C C - “Not authorized, Concurrent charge”: in this case, the identifier is already involved in another charge transaction: D - “Not authorized, Authorization expired”: it is possible that the back office has put a deadline to your identification card and this date is already expired: Instruction Manual...
  • Page 22 Raption 150C E - “Not authorized, Authorization blocked”: it is possible that the back office has blocked temporarily your identification card. F – After the user has been properly authorized, just at the moment that has to choose the connector, the screen will show the connectors status. It could appear some problem. It will be not possible to use any connector with tool symbol, like in the next picture: Instruction Manual...
  • Page 23 Raption 150C G– Almost all vehicles cannot charge if the shift lever is not in parking mode position. This situation can be detected by the Charge Point and it will be displayed by HMI as “Please, check gear shift position, put it in parking mode”. After check it, press over ‘Retry’ button. H–...

  • Page 24: D Stopping A Charging Session

    Raption 150C Stopping a charging session The HMI is showing the charging process and next message “Show your identification to stop”, the session can be stopped by the same user that has started it. After showing the identification card, the Charge Point will allow you to stop the charging session by pressing over the ‘Stop’...
  • Page 25 Raption 150C Once you have stopped the charging session the HMI will show the summary screen,.Press over the ‘Exit’ touch button and disconnect your vehicle: Instruction Manual...

  • Page 26: E Charging Information

    Raption 150C Charging information Depending on the the connector used, the HMI screen can show different process information. The information is almost the same except for few details. 1- Language button: possibility to change the HMI language. 2- Additional information: current status, errors, battery status, etc. 3- Connector information: type and identificator of connector, power of charge, etc.

  • Page 27: F Charging Summary

    Raption 150C Charging summary 1- Language button: possibility to change the HMI language. 2- Process instructions: different instructions can be displayed. 3- Energy charged: total energy charged at the end of the charging session. 4- Battery SOC: It indicates the final battery state of charge at the end of the charging session.

  • Page 28: G Emergency Button

    Raption 150C Emergency button If for any reason the Emergency button is pressed, all in progress charge transactions will be stopped, the beacon lights will turn red and it will not be possible to start new charge transaction until the recovery process is completed successfully. All the power modules will shut down in order to protect the user and the own Charge Point.

  • Page 29: H Connectors Status

    Raption 150C Connectors status The HMI screen shows a different symbols over the connector pictures, as you can see below: It means that the connector is ready to be used. This connector is out of service for any technical reason. Press over ‘Information’...
  • Page 30 Raption 150C The user cannot use this connector because another user is already using it. This connector has been reserved and only will be able to use per the user that has made the reserve. Note: if the user that has reserved the Charge Point is yourself the charging session will start normally, if not, the Charge Point will not be able to charge until the date and time displayed have expired.

  • Page 31: I Consulting The Connectors Status

    Raption 150C Consulting the connectors status It is possible to press over each connector picture to get more information about the status: 1 — C O N N E C T O R AVA I L A B L E 2 —...
  • Page 32 Raption 150C 3 — C O N N E C T O R D I S A B L E D 4 — C O N N E C T O R I N U S E Instruction Manual...
  • Page 33 Raption 150C 5 — C O N N E C T O R R E S E R V E D 6 — C O N N E C T O R B L O C K E D P E R R E S E R V E D Note: Applies only when simultaneously charge is not available.
  • Page 34 Raption 150C 7 — C O N N E C T O R B L O C K E D P E R C H A R G I N G Note: Applies only when simultaneously charge is not available. 8 —...
  • Page 35 Raption 150C Instruction Manual...
  • Page 36 Raption 150C The Charge Point can be configured and monitored to establish owner preferences or specific setup using integrated Ethernet communication port allocated in HMI screen device (see below). Once Service PC is configured as bellow procedure and connection is established with the Charge Point, direct access to the main setup page will be allowed.

  • Page 37: How To Configure It

    Below table shows, hardware and software needed to setup an IP address to the Charge Point. Service PC running Microsoft Windows, at least Windows XP . UTP Cable (Crossover recommended) IPSetup.exe PowerStudio Scada Client In order to get the software needed, you can download it from http:/ /circutor.com/ downloads/ or contact with sat@circutor.com Instruction Manual...

  • Page 38: B Network Topology

    Raption 150C Network topology Connecting the Service PC with Charge Point needs to be done with static IP address and TCP/IP v4 protocol. Next section shows how to do this configuration. Below image shows Ethernet connection topology and the IP addresses used in this guide as example. For Service PC →...

  • Page 39: Clan Connection Procedure

    Raption 150C LAN connection procedure This section provides a step-by-step guide to connect the Service PC to the Charge Point in order to see real-time status. 1- On the Service PC click over the ‘Network icon’ next to the clock of the taskbar, and click on ‘Open Network and Sharing Center’...
  • Page 40 Raption 150C 3- Right click on ‘Local Area Connection’ and then click on ‘Properties’ 4- Select ‘Internet Protocol Version 4 (TCP/IP)’ option and click on ’Properties’ Instruction Manual...
  • Page 41 Raption 150C 5- Setup IP address and subnet mask like as shown here below and click ‘OK’ twice to complete the assigning IP address process to the computer. 6- Now execute IPSetup.exe software provided on the Service PC Instruction Manual...
  • Page 42 Raption 150C 7- Enter the following parameters and click on ‘Configure’ • MAC of the Charge Point (see label on the cover’s screen) • IP address: i.e.(192.168.1.50) • Netmask: i.e. (255.255.255.0) • Gateway: leave default settings. 8- Wait 30 seconds approximately until the process is complete. Instruction Manual...
  • Page 43 Raption 150C 9- The process will complete when the following message appears, click on ‘OK’ 10- If the message shown is the next one, check the following parameters and click on ‘OK’ •Check IP address entered. •Check the MAC of the device entered. •Try with another UTP CAT5e cable.
  • Page 44 Step 1.- Open Charge Point’s right door and locate the modem, on the rear side. Step 2.- Check that the Charge Point is provided with the antenna on the cover top. Modem is fully configurated by default in CIRCUTOR. Only in case it is needed to configure it, remain in this section.

  • Page 45: Communications

    Raption 150C Communications Modem configuration 1 — M O D E M O V E R V I E W The 4G modem installed from factory in the Charge Point is: Teltonika RUT240 This device allows to the Charge Point connects over 4G networks to remotely view or manage the Charge Point status.
  • Page 46 Raption 150C 2 — C O N N E C T I O N S TAT U S L E D Explanation of connection status LED indication: • Signal strength status LED’s turned on: router is turning on • 2G, 3G and 4G LED’s blinking every 1 sec: no SIM or bad PIN •...
  • Page 47 Raption 150C 3 — S I M C A R D I N S TA L L AT I O N Insert SIM card which was given by your ISP (Internet Service Provider). Correct SIM card orientation is shown in the picture. 1.- Push the SIM holder extract button 2.- Pull out the SIM holder 3.- Insert the SIM card...
  • Page 48 Raption 150C 4 — L O G G I N G I N After you’re complete with the setting up as described in the section above, you are ready to start logging into your router and start configuring it. This example shows how to connect through WiFi: For cibersecurity reasons, modem’s Wi-Fi connection is disabled by default.
  • Page 49 Raption 150C 4.3.- Open a web browser and type http:/ /192.168.1.1 . Use the following parameters when prompted for authentication, and then either click Login with your mouse or press the Enter key. User name: admin Password: Admin001 You have now successfully logged into the RUT240!, from here on you can configure almost any aspect of your router.
  • Page 50 1.- If your SIM provider require any authentication ask them about what type, PAP or CHAP, select it on ‘Authentication method’ field and introduce a password and username. 2.- If you need to do some custom over the modem configuration, ask the CIRCUTOR Support staff in order to get the Teltonika modem manual.
  • Page 51 Raption 150C 4.6.- In order to know if the connection has been done properly, check next steps: Go to Status → Network → Mobile and pay attention to Data connection state, it has to be Connected Go to Status → Network → WAN and pay attention to IP address, the modem must has found a public IP address Instruction Manual...
  • Page 52 Raption 150C Go to Status → Network → LAN → DHCP Leases and pay attention to IP addresses At ‘DHCP Leases’ check that the modem has detected the automatic IP address and MAC number for both, your Service PC and the Charge Point. NOTES: 1.- If the modem has not detected the automatic IP address, switch off the circuit breaker, wait for 10 seconds and switch on again.
  • Page 53 Raption 150C 4.7.- Go to Network → LAN → Static Leases Complete the fields with next information: Hostname - It can be written the name that you want for your Charge Point. It is highly recommended to name it keeping this structure: ChargePoint_xxxxxxxxxxxx, to identify it easier.
  • Page 54 Raption 150C 4.8.- Disconnect the MCB inside the Charge Point in order to do a hard reset over the modem and the HMI screen, after 10 seconds switch ON again the MCB. 4.9.- Repeat again the points 4.2 and 4.3 explained above: 4.2 - look for modem access point and connect on it.
  • Page 55 Raption 150C 4.11.- Go to Network → Firewall → Port Forwarding → New Port Forward Rule The ports that you can see in the table below are introduced in the modem by default, although only the named 50000 and 9191 are enabled: Name Protocol External port (S)
  • Page 56 Raption 150C 4.12.- Go to Network → Firewall → Traffic Rules Roll down and look for ‘Enable_HTTP_WAN’ and ‘Enable_HTTPS_WAN’ fields and enable these. Roll down again and push over ‘Save’ button. Instruction Manual...
  • Page 57 Raption 150C 4.13.- For ending with the modem logging is necessary to do a reboot: Go to System → Reboot and push over the ‘Reboot’ tab During the process, the system will show the progress, do not switch off the modem. 4.14.- Repeat again the points 4.2 and 4.3 explained above: 4.2 - look for modem access point and connect on it.
  • Page 58 Raption 150C 4.15.- It is necessary to check that the Teltonika RUT240 LTE modem option is chosen at Charge Point’s setup webpage: Make sure that your Service PC is still connected with the Charge point through Wi-fi, open a web browser and type 192.168.1.50. Go to Configuration →...
  • Page 59 Raption 150C Instruction Manual...
  • Page 60 Raption 150C Setup webpage allows managing network setup, upgrading devices and other options. Once the Service PC is already connected to Charge Point, it is possible to open Setup Webpage through the IP entered. In the example shown in the previous section, it has been set 192.168.1.50 Open a web browser on the service PC and enter this IP, next image will appear.

  • Page 61: Setup Webpage

    Raption 150C Setup Webpage Dashboard COMMUNICATIONS As a relevant information, it shows: Value Description Short for Internet Protocol. Identifier that allows information to be sent between devices on a network. MAC Address Identifier of the network card of the Charge Point CHARGE POINT It is displayed if the Charge Point is available to be used or not.

  • Page 62: B Monitor

    Raption 150C Monitor In this section, it can be consulted the status of the Charge Point, the type of connectors it has and the availability of them. It is possible to start or stop a charging session, able or disable a connector or lock or unlock it remotely.

  • Page 63: C Historic

    Raption 150C Historic This section provides information of every charge transaction started in the Charge Point. It can be checked date and hour of begin and end of a charge transaction, energy charged, alias of the user and type of charge used. All of this elements have the chance to be organized depending on the user needs.

  • Page 64: D Integrations

    Raption 150C Integrations Clicking over the ‘Integrations’ tab, user will be able to activate OCPP integrations. Note: The integration of the Charge Point needs a separate section. In the next sections number 7 and 8 it is explained how to integrate OCPP. Instruction Manual...

  • Page 65: E Configuration

    Raption 150C Configuration In this section, there can be adjusted many different settings related with the Charge Point, depending on the elements it has and level of security it is desirable to have. IDENTIFICATION METHOD It is possible to enable or disable the option to use the Charge Point with or without identification and also if the user is capable to stop charge transaction.
  • Page 66 Raption 150C Enable ChargeBox Id option allows the system to differentiate every single charge point separately, in order to use this data by the back end system. As a Pre-authorisation amount, it can be configurated the amount of money that the bank blocks to the user once the charge transaction starts.
  • Page 67 Raption 150C CHARGE: Value Description The Charge Point is capable of balancing the available power based on the number of outlets in use (only available in Master-Satellite solution). Power ENABLE: the Charge Point shares equally the power delivered to each Balance ongoing Charge Transaction without exceeding the limit configured.
  • Page 68 Raption 150C Value Description Shared power It indicates the power available to divide between the connect- Max.current supply (A) is the available power ed vehicles. The ONLY for AC outlets. OCPP-Smart Charging The power balance is made via OCPP. Instruction Manual...
  • Page 69 Raption 150C COMMUNICATIONS This section provides basic configuration of the network parameters. DHCP server (router) means to enable or disable the IP address assignment. To be enabled when working with the integrated modems. Instruction Manual...
  • Page 70 Raption 150C HMI (Human Machine Interface) In this section, there can be adjusted many settings related with the Display. In General tab it is possible to adjust screen brightness and enable or disable the email support and timeout. Also, in the Charge Point can be uploaded up to 20 languages between the wide variety able to choose.
  • Page 71 Raption 150C In Screensaver tab it is possible to adjust timeout and brightness and enable or disable advertisements, what lets customize the Screensaver image by uploading a file. TARIFFS In this section, it can be adjusted the cost of a charge transaction in the Raption station. These settings are just displayed to inform the customer.
  • Page 72 Raption 150C There are few parameters that can be adjusted: Value Description Currency Choose the proper currency according to the area the Charge Point is installed Price Limit Maximum cost of the charge transaction Fixed service fee Price of a new charge transaction Energy fee Amount of money to be paid based on the energy delivered to the EV...
  • Page 73 Raption 150C SECURITY Value Description ENABLE: Information transferred between Charge Point and laptop is strictly encrypted. Allow only secure connec- Once enabled, it must be done some modifications in modem configura- tions tion, as explained below. DISABLED: not possible to assure secure connections between Charge Point and laptop.
  • Page 74 Raption 150C Configure modem to allow secure connections: After you’re complete with the setting up as described in the section 5, you are ready to start logging into your router and start configuring it. 1.- Go to Network → Firewall→ Port Forwarding → Port Forwarding Rules Locate the port named “Enable_ HTTPS_WAN_PASSTHROUGH”...
  • Page 75 Raption 150C 2.- Go to Network → Firewall→ Port Forwarding → New Port Forward Rule At the bottom part of the screen, add a new port forward rule with the following parameters and once introduced click Add button: Name: Enable_HTTPS_WAN_OCPP Protocol: TCP External port: 8443 Internal IP: 192.168.1.50...
  • Page 76 Raption 150C 3.- Go to Network → Firewall→ Traffic Rules Locate the port named “Enable_ HTTPS_WAN” and click Edit button. Once in Edit screen, insert 192.168.1.50 in "Destination address" field and 443 in "Destina- tion port" field; then click Save button. Instruction Manual...
  • Page 77 Raption 150C 4.- Go to Network → Firewall → Traffic Rules At the bottom part of the screen, add a new traffic rule with the following parameters and once introduced click Add button: Name: OCPP Protocol: All Destination address: 192.168.1.50 Destination port: 8443 Check that the new line appears and tap enable check in case is disabled.

  • Page 78: F Maintenance

    In this section, it can be consulted the status of the devices which are communicating via RS-485. UPDATES Through this tab, the Charge Point firmware and the application can be upgraded remotely. To obtain the latest firmware version, please contact CIRCUTOR Support Department. Instruction Manual...
  • Page 79 Raption 150C DIAGNOSTICS Clicking over the ‘HW Testing’ tab, it appears to enable or disable Grid test option. That means HMI shows a test screen to check that touch function works properly. The logs shown in this section are automatically produced by the Charge Point. It is a detailed list of the charging sessions, system performance or user activities.
  • Page 80 Raption 150C SYSTEM STATUS The information shown in this section is basically relative to the state of the PC of the Charge Point. It is necessary for the technical service staff but does not show any information regarding to the external connection of the Charge Point or to the charging session. ADVANCED This section allows setting the time and region time for the Charge Point.
  • Page 81 Raption 150C Next, we will explain the different sections of the 'Date and time' and 'Reset' Value Description Time Zone Select the regional time for the Charge Point according to the location. Time Current date and time of the Charge Point. Primary NTP Server Synchronize the time through internet automatically.
  • Page 82 Charge Point and a Central System. With this open protocol it is possible to connect any Central System with any Charge Point, regardless of the vendor. Follow next steps in order to configure OCPP 1.5 in the CIRCUTOR Charge Points. Instruction Manual...

  • Page 83: Ocpp 1.5

    Raption 150C OCPP 1.5 Before starting Check following steps in order to ensure the correct function of OCPP 1.5: Go to the Setup Webpage → ‘Configuration’ tab → ‘Communications’ tab Once in ‘General’ section, ‘Public IP source’ establishes where the Charge Point must obtain the public IP address in order to send it later to the backend.
  • Page 84 Raption 150C Go to the Setup Webpage → ‘Integrations’ tab → ‘General’ tab Choose the option selected under ‘Available integrations’ according to your backend policies as shown in the picture: Charge Point supports different versions of OCPP but only one can be enabled at the same time.

  • Page 85: B Configuration

    Raption 150C Configuration Go to the Setup Webpage → ‘Integrations’ tab → ‘Network’ tab In this section it is possible to modify some parameters related with network. Value Description Incoming OCPP TCP Incoming listening port for remote request (internal). Port (Internal) Incoming OCPP TCP Incoming listening port for remote request (public).
  • Page 86 Raption 150C Go to the Setup Webpage → ‘Integrations’ tab → ‘Settings’ tab Check OCPP Settings according to the backend policies, please contact to the Central System to get the configuration parameters: Before making any changes read following table and set each option according to your backend provider.
  • Page 87 Raption 150C Value Description ENABLED: Synchronization of date and time. Use OCPP time DISABLED: Synchronization of date and time. synchronization Note: Date and Time is sent from backend on each heartbeat response. PARTIAL: Sends partial energy consumption while vehicle is charging.
  • Page 88 Raption 150C Value Description ENABLED: Send power (Power.Active.Import) and energy (En- ergy.Active.Import.Register) consumed by the vehicle within Include Power Active meter values requests. Import in MeterValues DISABLED: Only enrgy consumed is sent within meter values request. PARTIAL: Consumed value of energy by the vehicle sent be- Energy for Start/Stop tween start and stop.
  • Page 89 Raption 150C Value Description ENABLED: If StatusNotification, StartNotification or StopNoti- fication are not received correctly by the backend, the Charge Point retries again to send those requests until it is received correctly. Retry after CS internal error DISABLED: The Charge Point is not allowed to retry after an internal error.
  • Page 90 Raption 150C Go to the Setup Webpage → ‘Integrations’ tab → ‘SSL Certificates’ tab When working with ‘secure’ connections, HTTPS, a certificate from the backoffice (normally a ‘bundle’ file) may be needed to assure proper communication with the charging station. Depending on the case, select the proper option and press Browse button in order to upload the certificate.
  • Page 91 Raption 150C Go to the Setup Webpage → ‘Integrations’ tab → ‘Configuration keys’ tab Value Description Number of seconds between Heartbeats. Heartbeat interval Note: setting this value to 0 disables the Heartbeat. Number of seconds between MeterValue during an ongoing Metervalues sample Charge Transaction.
  • Page 92 Raption 150C Go to the Setup Webpage → Integrations → ‘Backup’ tab It is possible to download a backup of the Charge Point pressing ‘Download setup’ button. On the other hand, it can also be uploaded a backup previously downloaded from another Charge Point.
  • Page 93 Raption 150C Instruction Manual...
  • Page 94 Charge Point and a Central System. With this open protocol it is possible to connect any Central System with any Charge Point, regardless of the vendor. Follow next steps in order to configure OCPP 1.6 in the CIRCUTOR Charge Points. Instruction Manual...

  • Page 95: Ocpp 1.6

    Raption 150C OCPP 1.6 Before starting Check following steps in order to ensure the correct function of OCPP 1.6: Go to the Setup Webpage → ‘Integrations’ tab → ‘General’ tab Once in ‘General’ section, Public IP source establishes where the Charge Point must obtain the public IP address in order to send it later to the backend.

  • Page 96: B Configuration

    Raption 150C Configuration Go to the Setup Webpage → ‘Integrations’ tab → ‘General’ tab Charge Point supports different versions of OCPP but only one can be enabled at the same time. Go back to setup web page and click on the ‘Integrations’ tab, choose the option selected under ‘Available integrations’...
  • Page 97 Raption 150C Value Description Charge Point ID Charge Point identifier. Basic Set an authentication if required, being the options 'Enabled' and Authentication 'Disabled'. Connection URL URL address of the central system. CS-Password Introduce CS-Password if required. Instruction Manual...
  • Page 98 Raption 150C Go to the Setup Webpage → Integrations → ‘Settings’ tab Once OCPP 1.6 option is selected, a link appears allowing access to the OCPP configuration. Please, click on the link button as shown in the picture: Instruction Manual...
  • Page 99 Raption 150C Value Description ENABLED: Synchronization of date and time Use OCPP time DISABLED: Synchronization of date and time synchronization Note: Date and Time is sent from backend on each heartbeat re- sponse. PARTIAL: Consumed value of energy by the vehicle sent between Energy for Start/ start and stop.
  • Page 100 Raption 150C Go to the Setup Webpage → Integrations → ‘SSL certificates’ tab For WSS connections is needed a Central System certificate. Upload it in this section. To obtain the latest certificates, please contact Central System you are working with. Instruction Manual...
  • Page 101 Raption 150C Go to the Setup Webpage→ Integrations → ‘Configuration keys’ tab Instruction Manual...
  • Page 102 Raption 150C Value Description ENABLED: maintain a local list of all presented identifiers that have been successfully authorized by the Central System. Authorisation cache DISABLED: authorization for presented identifiers is requested di- rectly to the Central System ENABLED: the Charge Point asks for authorization when the Central Authorise remote Tx System sends a remote start requests...
  • Page 103 Raption 150C Value Description ENABLED: during offline period locally-authorized identifiers are Local authorisation allowed to start charging off-line DISABLED: during offline period locally-authorized identifiers are NOT allowed to start charging ENABLED: stop existing Charge Transaction after response from Stop transaction on Central System when user is blocked, expired or invalid.
  • Page 104 Raption 150C Go to the Setup Webpage → Integrations→ ‘Backup’ tab It is possible to download a backup of the Charge Point pressing ‘Download setup’ button. On the other hand, it can also be uploaded a backup previously downloaded from another Charge Point.
  • Page 105 Raption 150C Go to the Setup Webpage > Integrations > ‘Security’ tab In this section could be introduced a user and password in order to enter in this section. It is possible this option to be changed whenever is desired. Note: Old password is 1234 by default.
  • Page 106 The IP address assigned in the chapter 5, will be useful to connect with the Charge Point in order to monitor the real-time status. The main way to connect is using the PowerStudio client software supplied by CIRCUTOR, and can also be downloaded in the download area of the CIRCUTOR website.

  • Page 107: Monitoring

    Raption 150C Monitoring Instruction Manual...

  • Page 108: A Introduction

    Raption 150C Introduction This section shows how to manage the output power delivered by the Charge Point for CCS and CHA. To do this action you have to keep connected through the program PowerStudio client software. Limiting the output power will be useful when the input power supply for the Charge Point is not enough powerful to feed and keep a good level of charge for electric vehicles.

  • Page 109: C Maximum Output Power

    Raption 150C Output power setup Maximum output power Steps: 1.- Execute PowerStudio Client software 2.- Push on ‘General’ tab and after on ‘Connect’ tab Instruction Manual...
  • Page 110 Raption 150C 3.- Enter the IP address given to the Charge Point and port number 80, after, press over ‘Ok’ 4.- Press on the ‘Views’ tab icon at the TOOLBAR and after click on ‘Devices status’: Instruction Manual...
  • Page 111 Raption 150C 5.- Find in the Serial 1, the CCS-Mode 4 and CHADEMO-Mode 4 options. Click on the connector whose power has to be adjusted, CCS or CHA 6.- Once the CCS-Mode 4 is already opened, press over Combo - General 1 and press the setup button.
  • Page 112 Raption 150C 7.- The pop-up window below appears, at ‘Limit Power’ tab it is possible to set the maximum DC power output, it can be selected from 10kW until 150kW for CCS. Click ‘OK’ to confirm changes. Instruction Manual...
  • Page 113 Raption 150C 6.- Once the CHADEMO-Mode 4 is already opened, press over CHAdeMO - General 1 and press the setup button. Instruction Manual...
  • Page 114 Raption 150C 7.- The pop-up window below appears, at ‘Limit Power’ tab it is possible to set the maximum DC power output, it can be selected from 10kW until 100kW for CHA. Click ‘OK’ to confirm changes. Instruction Manual...
  • Page 115 Raption 150C Instruction Manual...
  • Page 116 Raption 150C MODELS SPECIFICATIONS Models CCS2 CCS2 CHA CCS2 CCS2 CCS2: 150 kW CCS2: 150 kW Maximum output power 150 kW CHA: 100 kW CCS2: 150 kW CCS2: 150-920 V CCS2: 150-920 V Output voltage range 150-920 V CHA: 150-500 V CCS2: 150-920 V CCS2: 375 A CCS2: 375 A...

  • Page 117: Technical Data

    Raption 150C Technical Data CONNECTIVITY Network connection Ethernet 10/100BaseTX Interface protocol OCPP 1.5 or OCPP 1.6J SM Wireless Comunication EU 4G LTE/WiFi Hotspot/GPRS/GSM OPTIONAL DEVICES Wireless Comunication LATAM/APAC/4G LTE/GPRS/GSM Surge protection Four pole transient surge protector IEC 61643-1 (class II) Cable Length 5.5 meters (all cables) Anti-vandal connector protection...
  • Page 118 Raption 150C Instruction Manual...
  • Page 119 CIRCUTOR guarantees its products against any manufacturing defect for two years after the delivery of the devices. CIRCUTOR will repair or replace any defective factory product returned during the guar- antee period. • No returns will be accepted and no device will be repaired or replaced if it is not accompanied by a report indicating the defect detected or the reason for the return.
  • Page 120 CIRCUTOR, SA. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www. circutor.com central@circutor.com...
