Circutor Raption 50 Series Installation Manual

Hide thumbs Also See for Raption 50 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Raption 50 Series
INSTALLATION GUIDE
(M186A01-03-19A)

Advertisement

Table of Contents
loading

Related Manuals for Circutor Raption 50 Series

Summary of Contents for Circutor Raption 50 Series

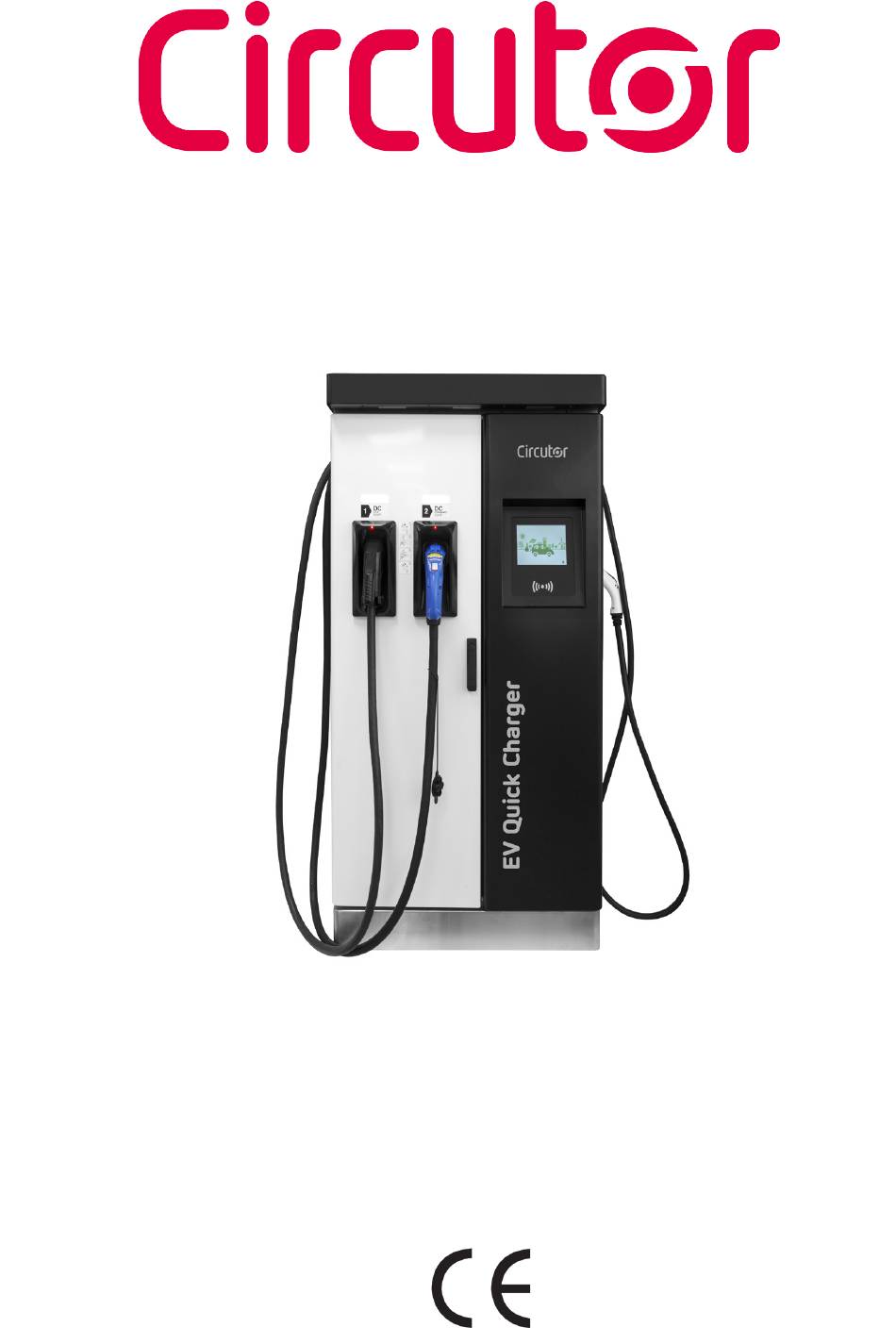

  • Page 1 Raption 50 Series INSTALLATION GUIDE (M186A01-03-19A)
  • Page 2 Raption 50 Installation Guide...

  • Page 3: Disclaimer

    CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifications and the most updated manuals.
  • Page 4 Raption 50 Installation Guide...

  • Page 5: Table Of Contents

    Raption 50 Here’s your guide to install Raption 50. Disclaimer ................................3 Revision log................................3 Here’s your guide to install Raption 50......................5 1.-So, hello ................................6 2.-Before the installation............................8 A. Important safety instruction........................8 B. Electrical wiring consideration ......................9 C. Supply and storage ..........................10 D.
  • Page 6 Failure to follow safety instructions may involve personal injury, equipment damage and danger of death. CIRCUTOR is not responsible for events arising from such breach. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT SAFETY INFORMATION IN THIS DOCUMENTENT...

  • Page 7: So, Hello

    Raption 50 So, hello! • Compliant with IEC 61851; Electric vehicle conductive charging system (IEC 61851-1, IEC 61851-22 and IEC 61851-23). • Compliant with IEC 62196; Plugs, sockets-outlets, vehicle connectors and vehicles inlets, Conductive charging of electric vehicles (IEC 62196- 1, IEC 62196-2 and IEC 62196-3).

  • Page 8: Before The Installation

    (broken plugs, caps that don’t than electric vehicle charging modes close...). are expected in IEC 61851. • Use only CIRCUTOR supplied spare • Do not modify this unit. If modified, parts. CIRCUTOR will reject all responsibility and the warranty will be void.

  • Page 9: Electrical Wiring Consideration

    Raption 50 Before the installation Electrical wiring considerations Take into consideration this section before start wiring connections of the charge point. 1 — I N P U T P O W E R S U P P LY The input power supply line for the Charge point, must be hardwired from a distribution board to the Charge point with an individual dedicated circuit.

  • Page 10: Supply And Storage

    Note: If any damage caused by the forwarder is not indicated in the delivery note during the receipt of Charge point, CIRCUTOR will not be held responsible for the cost of repair/ replacement. You must find inside on the box, the foundation kit, the decorative panels and two carton box, one of then with the connectors inside and the other with the rest of material, such as keys, identification cards, installation manual, etc.
  • Page 11 Raption 50 What’ s included: Installation guide Installation CirCarLife RFID Guide Mifare Card Charge Point Acces door Key Foundation Kit 2 — S T O R AG E Whenever possible, the Charge point must be unloaded in their place of installation and operation.

  • Page 12: Unloading And Handling

    Raption 50 Unloading and handling All processes of unloading and handling of the Charge point must be executed and monitored by qualified personnel attending to the significant weight of the unit, complying with safety rules and using the appropriate points of support. Important notes: - The delivery truck only unloads the pallet carrying the Charge point - The delivery truck does not have the lifting facilities to move the Charge point to its final location...
  • Page 13 Raption 50 Installation Guide...

  • Page 14: Dimensions And Oveview

    Raption 50 Dimensions • Units specified in millimeters: Installation Guide...

  • Page 15: Overview

    Raption 50 Dimensions and Overview Overview 1- Cover 2- exit AC cable 3- AC light beacon 4- CHAdeMO connector 5- Unit air inlet 7- D. front panel 8- D. rear panel 9- Handle 10- CHAdeMO holder Power M. air outlet 11- CCS holder 12- AC holder or socket 32A 13- CCS light beacon...

  • Page 16: Installation

    Raption 50 Minimum distances When installing the Charge point, respect the minimum distances space for maintenance and safety reasons. Please comply accordingly to your country specifications. The next picture shows how it should be installed. • Do not install near areas where water or fluids can penetrate into the unit. •...

  • Page 17: Foundation

    Raption 50 Installation Foundation The purpose of this chapter is the technical definition and basic requirements for implement the base and fixing the Charge point. • The unit can be installed both, inside and outside. • A foundation kit with a mounting template is provided to ensure the distances between the foundation bolts.
  • Page 18 Raption 50 Place the foundation bolts into the template using provided nuts with the help of a 24mm • open-end wrench. Take into consideration the following measures. Front side Measures in mm Installation Guide...
  • Page 19 Raption 50 • Once the kit is assembled, it must be placed in the ground. If the Charge point has to be installed outside and there is no limitation of depth, is recommended to make a concrete base. • The concrete base shall provide the passage of power cables, it must be done by corrugated tube placed inside the foundation through the mounting template, as it can be seen below.

  • Page 20: Opening

    Raption 50 Opening • Left door: Step 1 Step 2 Step 3 Steps: 1- Insert the key supplied in the lock and turn it 90 ° counterclockwise. 2- Pull back the handle. 3- Turn the handle 90 ° clockwise direction. Installation Guide...
  • Page 21 Raption 50 • Right door: Step 1 Steps: 1- Push on the round metallic button placed behind to the mechanic lock. On the top and bottom part of the Right door. Installation Guide...

  • Page 22: Placing

    Raption 50 Placing In order to place the Charge point in its definitely place, please follow next steps: 1 — R E M O V I N G T H E C H A R G E P O I N T F R O M PA L L E T The charge point is mounted on a pallet so as to do a safe transport.
  • Page 23 Raption 50 2 — P L AC I N G T H E C H A R G E P O I N T T O T H E F I N A L L O C AT I O N Once the Charge point is free from the pallet, there are two options to move the unit to the final location.
  • Page 24 Raption 50 Step 4 > 550 mm < 60º Step 5 Steps: 4- Hold the sling to the eyebolts, raise the Charge point and placed on the final location. 5- Screw the 4 x M16 nuts with washers on the threaded rods already installed on the base (on both sides), place again the unit cover, connect the 3G antenna connector, courtesy light connector and the exhaust fan connector and assembly the decorative front panel.
  • Page 25 Raption 50 b) Move the Charge point with manual forklift or forklift truck . Step 1 Step 2 Steps: 1- Remove the decorative rear panel. Pull outward the metal flange (on both sides). 2- Move out the metal flange (on both sides) and remove the decorative rear panel. Once the decorative panels have been removed, it will be available enough space to introduce the forklift, 560 mm Installation Guide...

  • Page 26: Wiring

    Raption 50 Wiring Regardless of the electrical characteristics of the power line, be sure to supply to the Charge Point with the necessary electrical features indicated at the unit characteristics label, understood as, supply voltage, grid frequency and required apparent power. In the case that the power line characteristics are different from those required, must do the necessary adaptation of the same to meet this requirement.
  • Page 27 In order to make a secure cable installation is necessary to use the metal plate provided. In the case of not using this metal plate and any damage to internal components arises due to the entry of dirt, animals or any other external element, CIRCUTOR will reject the warranty of the unit. Step 1...

  • Page 28: Models : Trio 63, Trio, Duo, Duo Ccs T2S32, Duo Cha T2S32, Ccs And Cha Power Input Connection - Connecting Cable

    Raption 50 Models : TRIO 63, TRIO, DUO, DUO CCS T2S32, DUO CHA T2S32, CCS, and CHA Power input connection - Connecting cable Power input Polycarbonate sheet See Notes Notes: 1- Use the M8 screw and washer provided in order to connect the electric terminals. The maximum tightening torque has to be 13Nm 2- Use a M8 metallic electric terminal aligned with the required cable cross section according with the power of the charge point (Max.
  • Page 29 Raption 50 MODELS DUO CCS T2S32 TRIO 63 TRIO DUO CHA T2S32 Minimum recommended cable cross sectional 70 mm 50 mm 25 mm 50 mm 25 mm 25 mm area Maximum cable cross 95 mm 95 mm 95 mm 95 mm 95 mm 95 mm sectional area This is the minimum recommended cable cross sectional area for the maximum AC input current...

  • Page 30: Model : Trio 480V. Power Input Connection - Connecting Cable

    Raption 50 Model TRIO 480V Power input connection - Connecting cable Polycarbonate sheet See Notes Notes: 1- Use the M8 screw and washer provided in order to connect the electric terminals. The maximum tightening torque has to be 13Nm 2- Use a M8 metallic electric terminal aligned with the required cable cross section according with the power of the charge point (Max.
  • Page 31 Raption 50 4- Use a phillip screwdriver in order to connect the electric terminals. The maximum tightening torque has to be 5 Nm. 5- Follow the label under the circuit breaker, connect the cables to the left and right terminal, the terminals of the middle must be free.

  • Page 32: Verification

    Raption 50 Verification Once completed the entire installation procedure, check the following points: • Check that all the MCB, RCD and the Main Circuit Breaker are powered on. • Check that all safety labels are correctly placed. • Close the Charge Point’s doors. The Charge Point has a security switch (antitamper protection) installed that will avoid any charging session if the doors are opened.
  • Page 33 Raption 50 Installation Guide...

  • Page 34: Electrical Data Models: Trio 63, Trio, Duo, Ccs, Duo Ccs T2S32, Duo Cha T2S32, And Cha

    Raption 50 ELECTRICAL DATA Models : TRIO 63, TRIO, DUO, DUO CCS T2S32, DUO CHA T2S32, CCS, and CHA ELECTRICAL DATA Power supply 3P+N+PE 400 VAC +/- 10% Voltage range > 0.98 Power factor Efficiency 95 % at nominal output power Standby consumption 38 W <...

  • Page 35: Technical Data

    Raption 50 Technical Data (Continuation) ELECTRICAL DATA MODELS DUO CHA DUO CCS T2S32 T2S32 108 A 108 A 76 A 76 A Maximum AC input current Required power supply 75 kVA 75 kVA 53 kVA 53 kVA capacity DC: 50 kW DC: 50 kW Maximum output power DC: 50 kW...

  • Page 36: Electrical Data Models: Trio 480 V

    Raption 50 ELECTRICAL DATA Model : TRIO 480V ELECTRICAL DATA Power supply III 3P+N+PE 480/277 VAC ± 10% Voltage range III Power supply II 208-240 VAC ± 10% Voltage range II > 0.98 Power factor 95 % at nominal output power Efficiency 38 W Standby consumption...

  • Page 37: General Data

    Raption 50 GENERAL DATA GENERAL DATA Display TFT 8" Multi-language touch screen Light beacon RGB Colour indicator ISO / IEC 14443A/B MIFARE Classic/Desfire EV1 RFID reader ISO 18092 / ECMA-340 NFC 13.56MHz CONNECTIVITY Ethernet 10/100BaseTX (TCP-IP) TRIO 63, TRIO, DUO, CCS, CHA Modem 4G / GPRS / GSM Cellular TRIO 480V...
  • Page 38 Raption 50 (continuation) MECHANICAL DATA Dimensions (D x W x H) (10) x 940 x 1800 mm STANDARDS IEC-61851; IEC-62196; CE; CHAdeMO Certified; CCS (DIN 70121) 520 mm with the cables hanged. (10) Installation Guide...

  • Page 39: Need Help

    Raption 50 Need help? In case of any query in relation to unit operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 (Spain) / +34 937 452 919 (outside of Spain) email: sat@circutor.com...
  • Page 40 CIRCUTOR, SA. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www. circutor.com central@circutor.com...
