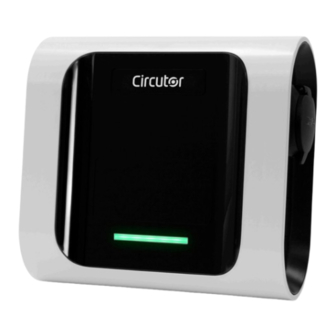

Circutor Wallbox ePark Instruction Manual

Hide thumbs Also See for Wallbox ePark:
Table of Contents

Advertisement

Quick Links

Download this manual
Wallbox ePark
(M262B01-03-19A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wallbox ePark and is the answer not in the manual?

Questions and answers

Related Manuals for Circutor Wallbox ePark

Summary of Contents for Circutor Wallbox ePark

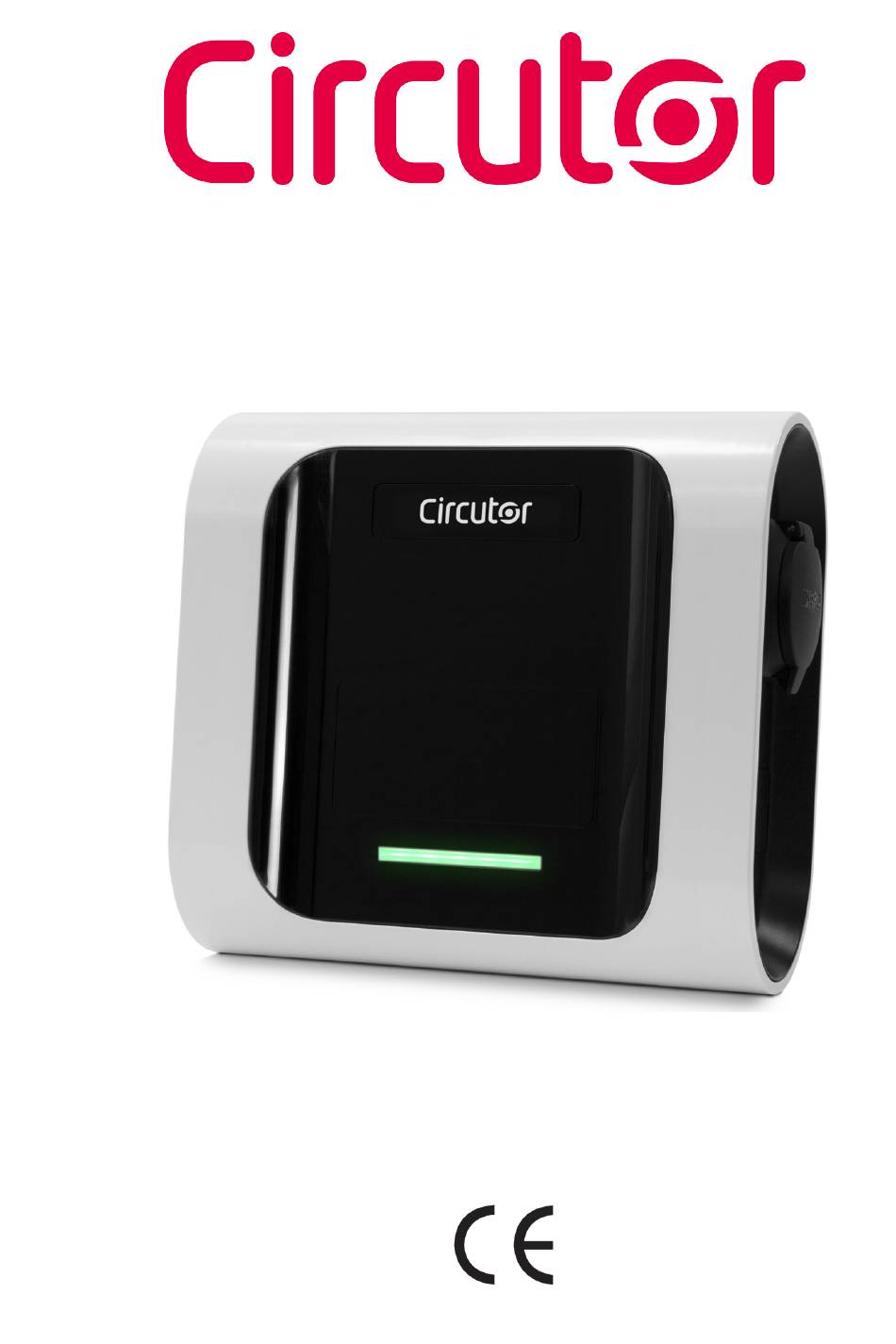

  • Page 1 Wallbox ePark INSTRUCTION MANUAL (M262B01-03-19A)

  • Page 2: Disclaimer

    CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifi- cations set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the de- vice specifications and the most updated manuals.

  • Page 3: Instruction Manual

    C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2019 by Circutor, S.A. All rights are reserved. Circutor, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.

  • Page 4: Table Of Contents

    Wallbox ePark Here’s your guide to use and configure ePark. Disclaimer ..............................2 Revision log..............................2 Here’s your guide to use and configure ePark...................4 1.-So,hello!..............................6 2.-Features..............................8 3.- How to use it?............................8 A. Start Charging ..........................10 B. Stop Charging ..........................11 4.- How to configure it?...........................12 A.

  • Page 5: Instruction Manual

    Wallbox ePark 8. Monitoring............................58 9. Technical Data............................60 Need help?...............................63 Guarantee..............................63 Instruction manual...
  • Page 6 Wallbox ePark This manual provides information about the usability and configuration of the Post and Wallbox ePark, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851. It contains all the necessary information for safe use and help to get the best performance from it with step-by-step configuration instructions.

  • Page 7: So,Hello

    CIRCUTOR will reject for users (broken plugs, caps that all responsibility and the warranty don’t close...). will be void. • Use only CIRCUTOR supplied • Comply strictly with electrical spare parts. safety regulations according to your country. • Do not use this product if the enclosure or the EV connector is •...
  • Page 8 Wallbox ePark 1 — LED beacon 2 — Cable glands 3 — Plugs 4 — Display 5 — RFID 6 — Closing box holes 7 — Wall support holes Plugs may vary depending on the model Instruction manual...

  • Page 9: Features

    Wallbox ePark Features M A I N F E AT U R E S O F T H E U N I T Charge Point may not include elements of electrical protection. • Display: Information about the • Energy metering:...
  • Page 10 Wallbox ePark Start Charging 1. The first step is to show the proximity card to the reader Once done, the Led Beacon turns Blue and the Display shows the following sequence of messages: If the proximity card reader is disabled, charge transaction starts automatically when a vehicle is detected.

  • Page 11: How To Use It

    Wallbox ePark How to use it? Stop Charging 1. The first step is to show the proximity card to the reader Once done, the Led Beacon turns Green and the Display shows the summary of the charge transaction: If the proximity card reader is disabled, charge transaction stops automatically when a cable is disconnected from the vehicle.

  • Page 12: Introduction

    Wallbox ePark Introduction The Charge Point can be configured and monitorized to establish preferences or specific setup using integrated Ethernet communication port allocated in the main controller device. What’s needed Before proceeding with the configuration, make sure all the following is...

  • Page 13: Connection

    Wallbox ePark How to configure it? Connection Charge Point is delivered with default network setting of “DHCP enabled”. It means that the charge station will try to obtain an IP address from a DHCP server available on the network. Connecting a PC directly with the Charge Point needs to be done with static IP address.
  • Page 14 Wallbox ePark Setup webpage allows managing networking setup, upgrading devices and other options. To access the setup web page, open a web browser and enter the IP address previously configured. Dashboard Overview As a relevant information, the ‘Summary’ shows: •...

  • Page 15: Setup Webpage

    Wallbox ePark Setup Webpage Devices Status As a relevant information, the ‘Devices Status’ shows: • Device name: Name of the devices inside the Charge Point Status: OK (online) / NOT OK (offline) • Instruction manual...
  • Page 16 Wallbox ePark System Status The information shown in this section is basically relative to the state of the Control Board of the Charge Point This is necessary for the technical service staff but does not show any information regarding the external connection of the Charge Point or the charging session.
  • Page 17 Wallbox ePark Modem Status When the cellular connection is successful, this section shows the public IP, the signal strength and other information related to the SIM Card. The following diagram shows an approximated range of signal strength that can be obtained depending on the location of the Charge Point:...
  • Page 18 Wallbox ePark Drivers The information shown in this section is regard to the drivers that the Charge Point needs in order to recognize the different devices inside the Charge Point, such as the meters, the Mode 3 controller, the RFID reader, etc.
  • Page 19 Wallbox ePark Repository Sources The information shown in this section is basically related to the internal behavior of the Charge Point. This is necessary for the technical service staff but does not show any information regarding the external connection of the Charge Point or the charging session.
  • Page 20 Wallbox ePark System Logs The logs shown in this section are automatically produced by the Charge Point, it is a detailed list of the charging sessions, system performance, or user activities. This logs are created since Charge Point is powered On. Even if Charge Point is restarted the logs are saved.

  • Page 21: Network

    Wallbox ePark Network This section provides basic configuration of the network parameters. Clicking over the ‘Network’ tab, next image will appear. Instruction manual...
  • Page 22 Wallbox ePark Value Description Hostname Name of the Charge Point on the network •Local address: select this option if the OCPP central system is connected to the same private network than the Charge Point is already connected. It is assigned to the Ethernet Port.

  • Page 23: Modem

    Wallbox ePark Modem Before configuring the cellular communications, insert the SIM Card on the modem as shown: If the three LEDs are not on after inserting the SIM card, check the modem configuraton. Instruction manual...
  • Page 24 Wallbox ePark To configure the integrated modem, check this section to set the parameters provided by the SIM Card network operator. Value Description Access point name (Consult SIM Card network operator) User Credentials assigned to the APN Password NOTE: If credentials are not needed, insert “1234”...

  • Page 25: Security

    Wallbox ePark Security This section provides basic configuration of the security parameters. Avoiding unauthorised access to the Setup Webpage. All parameters are disabled from factory settings. Value Description Authentication ON: authentication enableb / OFF: authentication disabled User Name Password Username and Password authentication for Setup web page Repeat password Do not forget the credentials.

  • Page 26: Locale

    Wallbox ePark Locale This section allows to change the language of the Charge Point, choosing among several options. For availability of languages, please consult your local supplier. Instruction manual...

  • Page 27: Time

    Wallbox ePark Time This section allows setting the time and region time for the Charge Point. Value Description Time Zone Select the regional time for the Charge Point according to the location Time Current date and time of the Charge Point...

  • Page 28: Integrations

    Wallbox ePark Integrations This section allows to enable and disable OCPP service of the Charge Point. Both OCPP 1.5 and OCPP 1.6 are available on the last firmware version. For more information about the parameters and configuration, please refer to ‘OCPP 1.5’ or ‘OCPP 1.6’ chapters of this manual.

  • Page 29: Firmware

    The Charge Point firmware can be upgraded remotely by clicking on the ‘Select File’ button. A window will pop up in order to choose the file, then click on ‘upload’. To obtain the latest firmware version please contact CIRCUTOR Post Sales Department. More information in ‘Need help?’ chapter. Instruction manual...

  • Page 30: Configuration Update

    ‘Select File’ button. Intended ONLY for Service Staff to restore the Charge Point A window will pop up in order to choose the file, then click on ‘upload’. To obtain the appropriate configuration file please contact CIRCUTOR Post Sales Department. More information in ‘Need help?’ chapter.
  • Page 31 Wallbox ePark Instruction manual...
  • Page 32 Charge Point and a Central System. With this open protocol it is possible to connect any Central System with any Charge Point, regardless of the vendor. Follow next steps in order to configure OCPP 1.5 in the CIRCUTOR Charge Points. Instruction manual...

  • Page 33: Ocpp 1.5

    Wallbox ePark OCPP 1.5 Before starting Check following steps in order to ensure the correct function of OCPP 1.5: Go to the Setup Webpage > ‘Network’ tab Public Address Manager establishes where the Charge Point must obtain the public IP address in order to send it later to the backend. Different values can be selected in the ‘Address Type’...
  • Page 34 Wallbox ePark Go to the Setup Webpage > ‘Integrations’ tab Charge Point supports different versions of OCPP but only one can be enabled at the same time. Go back to setup web page and click on the ‘Integrations’ tab, choose the option selected under ‘Available integrations’...

  • Page 35: Configuration

    Wallbox ePark Configuration Go to the Setup Webpage > ‘Integrations’ tab Once OCPP 1.5 option is selected, a link appears allowing access to the OCPP configuration. Please, click on the link button as shown in the picture: New webpage is opened to show OCPP Settings. It can also be accessed directly typing: http://<IP>:8080/html/setup.html...
  • Page 36 Wallbox ePark On the OCPP webpage, go to ‘Charge Box’ tab Check Charge Box Identity and the incoming ports according to the backend policies, please contact to the Central System to get the configuration parameters: Value Description Charge Point identifier...
  • Page 37 Wallbox ePark Go to ‘Central system’ tab Allows the Charge Point to know where the central system is hosted to notify all the requests. Check Central System URL according to the backend policies, please contact to the Central System to get the configuration parameters:...
  • Page 38 Wallbox ePark Go to ‘OCPP Settings’ tab Check OCPP Settings according to the backend policies, please contact to the Central System to get the configuration parameters: Before making any changes read following table and set each option according to your backend provider.
  • Page 39 Wallbox ePark Value Description YES: local list of authorized users -> Enabled Use local white-list NO: local list of authorized users -> Disabled LOCAL: ID authorization has first place on the local white- list. If the user does not exist locally, then in second place backend is asked to obtain the authorization.
  • Page 40 Wallbox ePark Value Description YES: Synchronization of date and time -> Enabled. Use OCPP time NO: Synchronization of date and time -> Disabled. synchronization NOTE: Date and Time is sent from backend on each heart- beat response. YES: Compress messages between Charge point and back- end ->...
  • Page 41 Wallbox ePark Value Description YES: Stop existing charge transaction after response from backend (StartTransaction.conf) when user has already in- Stop charge if volved in another transaction. StartTransaction replies ConcurrentTx NO: Charge transaction does not stops even if backend re- jects the user. (StartTransaction.conf) NOTE: Set this option according to your backend system.
  • Page 42 Wallbox ePark Once done, please do not forget to save changes using ‘Save’ button in the upper right bar: Please, wait until the new configuration is being applied to the Charge Point. A message is displayed informing the progress: Instruction manual...

  • Page 43: Checkup

    Wallbox ePark Checkup After applying new settings, please go to next URL from Charge Point in order to check properly connection from the integration chosen: http://<IP>/services/cpi/log?app=ocpp1.5 Look especially for the following messages: If ‘CB boot notification: success’ appears then Charge Point is properly connected to the back-end.
  • Page 44 Charge Point and a Central System. With this open protocol it is possible to connect any Central System with any Charge Point, regardless of the vendor. Follow next steps in order to configure OCPP 1.6 in the CIRCUTOR Charge Points. Instruction manual...

  • Page 45: Ocpp 1.6

    Wallbox ePark OCPP 1.6 Before starting Check following steps in order to ensure the correct function of OCPP 1.6: Go to the Setup Webpage > ‘Network’ tab Public Address Manager establishes where the Charge Point must obtain the public IP address in order to send it later to the backend. Different values can be selected in the ‘Address Type’...
  • Page 46 Wallbox ePark Go to the Setup Webpage > ‘Integrations’ tab Charge Point supports different versions of OCPP but only one can be enabled at the same time. Go back to setup web page and click on the ‘Integrations’ tab, choose the option selected under ‘Available integrations’...

  • Page 47: License Activation

    If the Charge Point does not have the license applied, the following message pops up: To obtain the license file please contact CIRCUTOR Post Sales Department. More information in ‘Need help?’ chapter. The license can be applied by clicking on the ‘Select File’ button.
  • Page 48 Wallbox ePark A window will pop up in order to choose the file, then click on ‘upload’. Instruction manual...

  • Page 49: Configuration

    Wallbox ePark Configuration Go to the Setup Webpage > ‘Integrations’ tab Once OCPP 1.6 option is selected, a link appears allowing access to the OCPP configuration. Please, click on the link button as shown in the picture: New tabs are opened to show OCPP Settings. It can also be accessed directly typing: http://<IP>:8080/html/setup.html...
  • Page 50 Wallbox ePark On the OCPP webpage, go to ‘Charge Box’ tab Check Charge Box Identity and the incoming ports according to the backend policies, please contact to the Central System to get the configuration parameters: Instruction manual...
  • Page 51 Wallbox ePark Value Description Charge Point identifier Maximum size of the Authorization Cache, that autonomously main- tains a record of previously presented identifiers that have been suc- Cache max. size cessfully authorized by the Central System. It can be viewed accessing to the following URL: http://<IP>:8080/services/cmd/dump_cache.xml...
  • Page 52 Wallbox ePark Go to ‘Central system’ tab Allows the Charge Point to know where the central system is hosted to notify all the requests. Check Central System URL according to the backend policies, please contact to the Central System to get the configuration parameters:...
  • Page 53 Wallbox ePark Go to ‘OCPP Settings’ tab Check OCPP Settings according to the backend policies, please contact to the Central System to get the configuration parameters: Instruction manual...
  • Page 54 Wallbox ePark Value Description YES: maintain a local list of all presented identifiers that have been Authorization successfully authorized by the Central System. cache enabled NO: authorization for presented identifiers is requested directly to the Central System YES: the Charge Point asks for authorization when the Central Sys-...
  • Page 55 Wallbox ePark Value Description YES: Charge Transaction stops when the cable is disconnected from the EV Stop transaction when EV NO: Charge Transaction does not stop when the cable is disconnect- unplugged ed from the EV; furthermore, if it is reconnected energy transfer is allowed again.
  • Page 56 Wallbox ePark Value Description Number of seconds between MeterValue during an ongoing Charge Metervalue Transaction. sample interval NOTE: setting this value to 0 disables the MeterValue. Transaction Number of seconds between transaction message attempts. message retry interval NOTE: setting this value to 0 disables the attempts.

  • Page 57: Checkup

    Wallbox ePark Once done, please do not forget to save changes using ‘Save’ button in the upper right bar: Checkup After applying new settings, please go to next URL from Charge Point in order to check properly connection from the integration chosen: http://<IP>/services/cpi/log?app=ocpp1.6...
  • Page 58 The main way to connect is using the PowerStudio client software (Supplied by CIRCUTOR) or you can download it from CIRCUTOR Webpage. NOTE: Java software needs to be installed on your computer in order to run the client software, please, download last version from: www.java.com...

  • Page 59: Monitoring

    Wallbox ePark Monitoring Instruction manual...
  • Page 60 Wallbox ePark ELECTRICAL DATA ePark ePark ePark ePark MODEL ePark M T2S32 M-MIX-E T T2S32 T-MIX-E Power supply 1P+N+PE 1P+N+PE 1P+N+PE 3P+N+PE 3P+N+PE 230V~±10% 230V~±10% 230V~±10% 400V~±10% 400V~±10% Input voltage 50Hz / 60Hz Frequency Ouput Power 7.4 kW 7.4 kW / 3.6 kW 7.4 kW...

  • Page 61: Technical Data

    Wallbox ePark Technical Data CONNECTIVITY Ethernet 10/100BaseTX(TCP-IP) Cellular Modem 3G / GPRS / GSM Interface protocol OCPP 1.5, 1.6 Depending on the model, some components may vary For availability of models, please consult your local supplier Protections may not be included in the charge point, at this point, pro- tections with the same characteristics, shall be placed upstream.
  • Page 62 Wallbox ePark Instruction manual...

  • Page 63: Need Help

    Wallbox ePark Need help? In case of any query in relation to unit operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 (Spain) / +34 937 452 919 (outside of Spain) email: sat@circutor.com...
  • Page 64 CIRCUTOR, SA. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www. circutor.com central@circutor.com...
