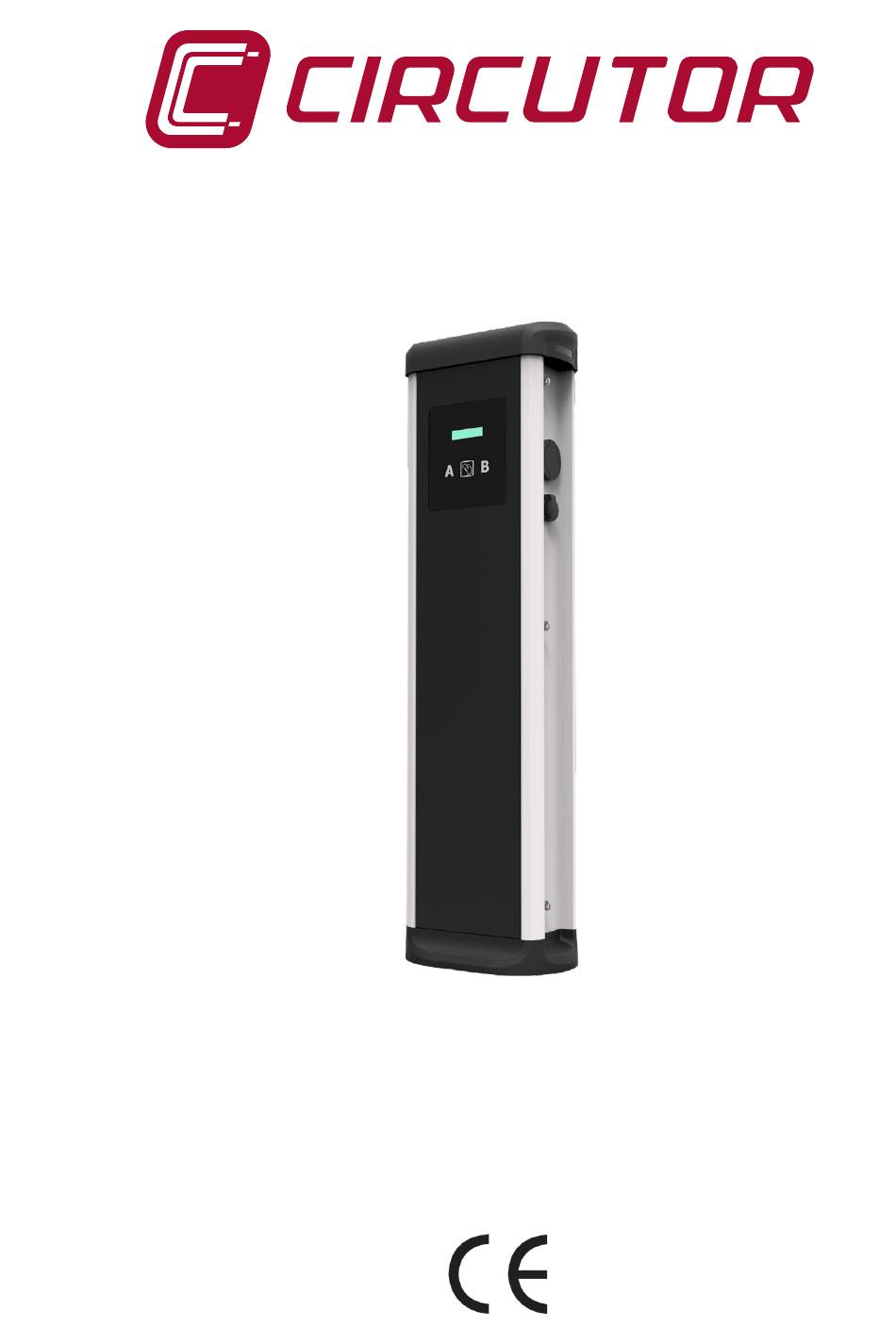

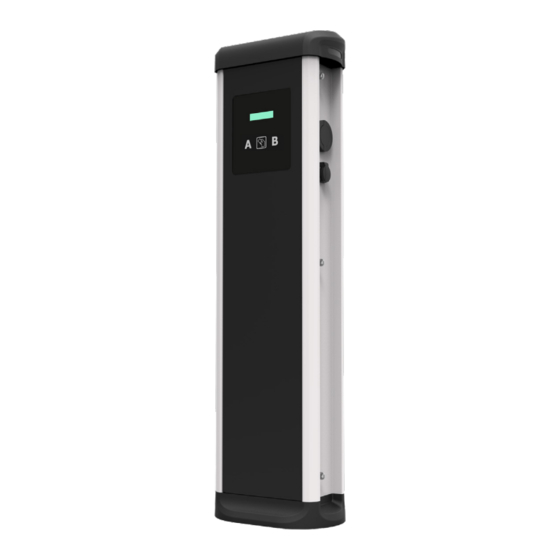

- Page 1 URBAN Series INSTALLATION GUIDE (M177A01-03-18A)
- Page 2 CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifica- tions set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifications and the most updated manuals.
-
Page 3: Table Of Contents
URBAN Here’s your guide to install URBAN. 1 — So, hello 2 — Before the installation 3 — Dimmensions and Overview 4 — Installation 5 — Technical Data 6 — Need help 7 — Guarantee Installation Guide... - Page 4 URBAN Installation Guide...
-
Page 5: So, Hello
URBAN So, hello! This manual provides commissioning information, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851. This document has different sections describing electrical components inside the charge station and a step-by-step installation procedure. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT SAFETY INFORMATION IN THIS DOCUMENTENT... - Page 6 IEC 61851. for users (broken plugs, caps that don’t close...). • Do modify this unit. supplied CIRCUTOR CIRCUTOR modified, will reject • Use only spare parts. all responsibility and the warranty will be void.
-
Page 7: Before The Installation
URBAN Before the installation E L E C T R I C A L W I R I N G C O N S I D E R AT I O N S Take into consideration this section before start wiring connections of the charge point. - Page 8 URBAN What’s included: Installation guide Charge Point Installation CirCarLife RFID Guide Mifare Card URBAN Post Key Foundation Kit Installation Guide...
- Page 9 URBAN Minimum Distances When installing the unit, respect the minimum distances space for maintenance and safety reasons. Please comply accordingly to your country specifications. The next picture shows how it should be installed. • Do not install near areas where water or fluids can penetrate into the unit. •...
- Page 10 URBAN Foundation Kit: Nuts DIN 934 M16 Washers DIN 9021 M16 Templates Foundation bolts Installation Guide...
- Page 11 URBAN Foundation • Place the foundation bolts into the template using provided nuts with the help of 24mm open-end wrench. • Once the kit is assembled, it must be placed in the ground taking into consideration the following measures. Front view Side view Measures in mm.
- Page 12 URBAN 1544 1351 Measures in mm Installation Guide...
-
Page 13: Dimmensions And Overview
URBAN Dimmensions and Overview 1 — Hat 4 — Socket 2 — LED Beacons 5 — Key lock access 3 — Display & RFID Reader 6 — Base Only URBAN M21, URBAN T21, URBAN M22, URBAN T22, URBAN T22 -C and URBAN T24-MIX Sockets may vary depending on the model. - Page 14 URBAN Opening • Use provided key in order to open the unit: Installation Guide...
-
Page 15: Installation
URBAN Installation Positioning Remove the template nuts before proceeding. Place the charge point through the four foundation bolts. Installation Guide... - Page 16 URBAN Fixation Firmly tighten the 4 nuts using a 24mm open-end wrench. Installation Guide...
- Page 17 URBAN Metal plate • It is recommended to install a cable glands (not supplied) in pre-holes position. • Assembly metal plate using the 4 supplied screws as shown below: Installation Guide...
- Page 18 URBAN Wiring SINGLE-PHASE CHARGE POINT THREE-PHASE CHARGE POINT • Connect to the 230V~. • Connect to the 400V~. • If the Power Supply is Single- Phase, connect L1 and N. Terminal block maximum cross-section: 35 mm Do not forget to connect the ground cable to the ground terminal Make sure all screws are securely tightened 4...5 Nm...
- Page 19 URBAN Verification 1 — P O W E R I N P U T Before proceeding, make sure voltage is present in the terminal blocks. For Three-Phase models pay special attention to Neutral Cable. 2 — M A I N T E N A N C E M O D E Pull outward the Tamper Switch located in the lower half of the Charge Point.
- Page 20 URBAN URBAN M11, URBAN T11, URBAN M12, URBAN T12, URBAN T12-MIX ELECTRICAL DATA T12-MIX 1P+N+PE 3P+N+PE 1P+N+PE 3P+N+PE Power supply 230V~± 10% 400V~± 10% 230V~±10% 400V~±10% Input voltage 35 A 67 A 51 A Input Current 50Hz / 60Hz Frequency Number of 2 : Socket A, Socket B sockets...
-
Page 21: Technical Data
URBAN Technical Data MECHANICAL DATA IP54 / IK10 Enclosure rating Aluminium & ABS Enclosure material Frontal key locked door Enclosure door 55Kg Net weight 450 x 1550 x 290 mm Dimensions (W x H x D) T12-MIX Min. cable section 10 mm 25 mm 16 mm... - Page 22 URBAN CONNECTIVITY 10/100BaseTX (TCP/IP) Ethernet Modem 3G / GPRS / GSM Cellular OCPP Interface protocol GENERAL DATA RGB Colour indicator Light beacon LCD Multi-language Display ISO / IEC 14443A/B, MIFARE Classic/Desfire EV1 RFID reader ISO 18092 / ECMA-340, NFC 13.56MHz ENVIRONMENTAL CONDITIONS -5ºC ...
-
Page 23: Need Help
URBAN Need help? In case of any query in relation to unit operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 (Spain) / +34 937 452 919 (outside of Spain) email: sat@circutor.com... - Page 24 CIRCUTOR, SA. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www. circutor.com central@circutor.com...
