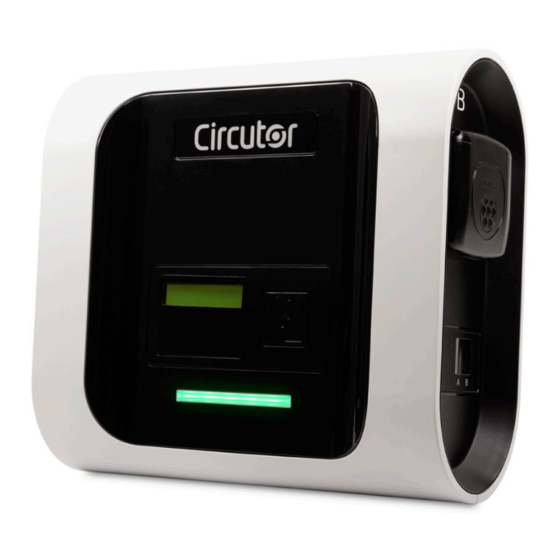

Summary of Contents for Circutor ePARK M-S2

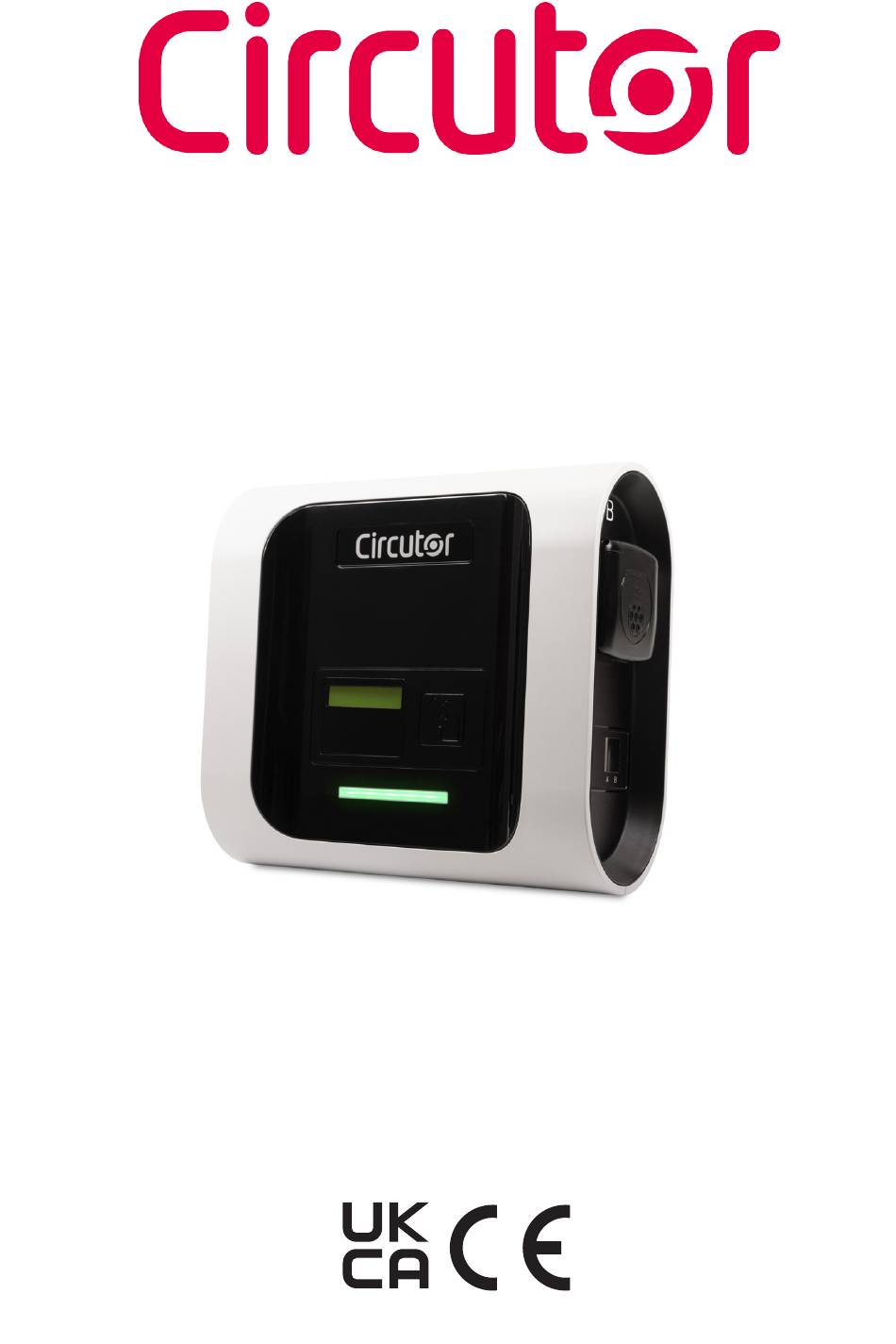

- Page 1 ePARK INSTALLATION GUIDE (M262A01-03-23A)
- Page 2 ePARK Installation guide...
-
Page 3: Disclaimer
CIRCUTOR S.A.U. reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR S.A.U. on its web site, supplies its customers with the latest versions of the device speci- fications and the most updated manuals. - Page 4 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2023 by CIRCUTOR S.A.U. All rights are reserved. CIRCUTOR S.A.U. reserves the right to make improvements to the products described in this manual at any time without notice.
-
Page 5: Table Of Contents
ePARK Contents Disclaimer ................................3 Revision log ............................... 3 Contents ................................5 1.- So, hello! ..................................6 2.- Before the installation .............................8 A.- Important Safety Instructions ......................8 B.- Electrical wiring considerations ......................9 3.- Overview ..................................10 4.- Dimensions ................................12 5.- Installation ................................ -
Page 6: So, Hello
ePARK So, hello! Installation guide... - Page 7 ePARK This manual provides commissioning information about ePark, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851 This document has different sections such as step-by-step installation procedure and technical data. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT SAFETY INFORMATION IN THIS DOCUMENT ELECTRIC RISK Necessary precautions shall be taken to prevent any electrical risk...
-
Page 8: Before The Installation
IEC 61851. (broken plugs, caps that don’t close...). • Do not modify this unit. If modified, CIRCUTOR will • Use only CIRCUTOR supplied spare parts. reject all responsibility and the warranty will be void. -
Page 9: B Electrical Wiring Considerations
ePARK B Electrical wiring considerations Take into consideration this section before start wiring connec- tions of the Charge Point. 1.- E L E C T R I C A L P R O T E C T I O N S It is possible that the Charge Point does not include electrical protection elements. -
Page 10: Overview
ePARK Overview What’s included: Installation Guide Installation Charge Point Guide Allen wrench 2.5 mm Installation guide... - Page 11 ePARK Description LED beacon Closing box holes Cable glands Plugs RFID reader Wall support holes Connectors may vary by model. Installation guide...
-
Page 12: Dimensions
ePARK Dimensions 179,70 Measures in mm Installation guide... - Page 13 ePARK 62.5 52.5 52.5 62.5 39.5 20.5 This measurement may vary. Measures in mm Installation guide...
-
Page 14: Installation
ePARK Installation Material: • Allen wrench of 2,5 mm is included in the installation kit. crews, sealing washers and plastic anchors are not included. • • The fastening system of the Charge Point has been designed to be installed on a wall. -
Page 15: A Requirements
• Please comply with your country regulations. • The Charge Point shall be installed on a wall or on CIRCUTOR accessories. • When installing the unit, some space shall be reserved for usability, maintenance and safety reasons. The picture below shows the recommended minimum distances:... -
Page 16: B Opening
ePARK B Opening Open the ePARK using allen wrench. 2,5 mm Allen wrench Screw DIN-7380-2 M4x14 INOX Sealing washer DIN 7712 4.8 14MM INOX Use the ratchet tool to open/close the change point wall fixed. Installation guide... -
Page 17: C Positioning
ePARK Remove PCB plastic support to connect the ethernet and put the screw into the wall. PCB plastic support methacrylate screws Wall Screw RJ45 C Positioning Drill the wall. Drill bit M 6/8 1100 Measures in mm. Installation guide... -
Page 18: D Fixing
ePARK D Fixing Place de unit on the previously leaky points and fix it by the screws. Installation guide... -
Page 19: E Wiring
ePARK E Wiring Use provided cable glands in order to maintain the IP protection. Cable glands • The current of the power supply can be limited. In order to perform this adjustment please refer to the Instruction Manual. • The IEC-61851-1 ed 3 standard indicates that each plug shall have protections. In case the Charge Point has no protections inside, they shall be upstreams. - Page 20 ePARK SINGLE-PHASE CHARGE POINT THREE-PHASE CHARGE POINT Connect to the 230V~. • • Connect to the 400V~. • If the Power Supply is Single-Phase, 1 CONNECTORS 2 CONNECTORS connect L1 and N. Protections Protections Protections Terminal block maximum cross-section: 16mm Do not forget to connect the ground cable to the ground terminal.
-
Page 21: F Closing
ePARK F Closing Close the Charge Point as per the following steps of verification and operation. 1.- POWER INPUT Before proceeding, make sure voltage is present in the terminal blocks. 2 . - CAREFUL WITH THE WIRES Before closing the unit, keep in mind that all cables should remain inside. For Three-Phase models pay special attention to Neutral Cable. - Page 22 ePARK 8.- SECURE CLOSURE • Tighten the screws crosswise in the sequence shown below. • As a guideline, the recommended assembly torque is 0.8-1Nm. 9.-PREVENTIVE MAINTENANCE It is recommended to perform one preventive maintenance per year. Installation guide...
- Page 23 ePARK Installation guide...
-
Page 24: Technical Data
Technical Data ELECTRICAL DATA MODEL ePARK M-S2 ePARK M-C1 ePARK M-C2 ePARK M-2S2 Power supply 1P+N+PE Input voltage 230V~±10% Frequency 50Hz / 60Hz Connectors No. Ouput Power 7.4 kW Ouput current 32 A Connectors type Type 2 Socket Type 1 Cable... - Page 25 ePARK GENERAL DATA Display LCD Multi-language Light beacon RGB Colour indicator RFID reader ISO 14443 A ISO/IEC 14443 A+B Legic RFID Reader ISO/IEC 18092 ECMA-340 (Optional) ISO/IEC 15693 Legic Prime ENVIRONMENTAL CONDITIONS Operating temperature -5ºC ... +45ºC Operating temperature with Low temperature kit -30ºC ...
- Page 26 ePARK Installation guide...
-
Page 27: Need Help
CIRCUTOR guarantees its products against any manufacturing defect for two years after the delivery of the devices. CIRCUTOR will repair or replace any defective factory product returned during the guar- antee period. • No returns will be accepted and no device will be repaired or replaced if it is not accompanied by a report indicating the defect detected or the reason for the return. - Page 28 CIRCUTOR S.A.U. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www. circutor.com central@circutor.com...
