Raption Series
INSTRUCTION MANUAL
(M186B01-03-21C)

Advertisement

Table of Contents
loading

Related Manuals for Circutor Raption Series

Summary of Contents for Circutor Raption Series

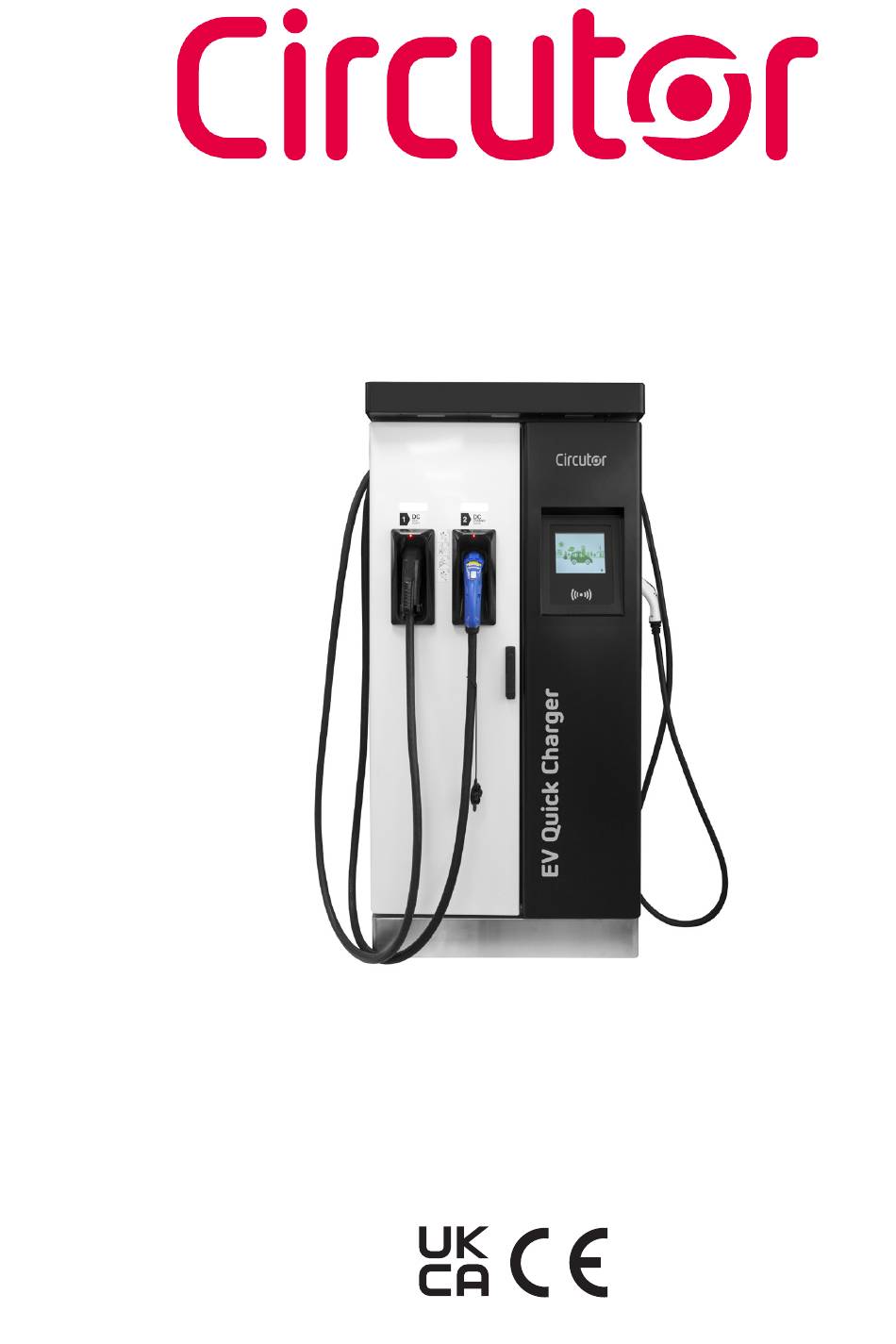

  • Page 1 Raption Series INSTRUCTION MANUAL (M186B01-03-21C)
  • Page 2 Raption Instruction Manual...

  • Page 3: Disclaimer

    CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifica- tions and the most updated manuals.
  • Page 4 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2021 by CIRCUTOR, S.A. All rights are reserved. CIRCUTOR, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.

  • Page 5: Table Of Contents

    Raption Here is your guide to use and configure a Raption Disclaimer ................................3 Revision Log .................................3 Here is your guide to use and configure Raption ..................5 1. So, hello! ................................8 2. Features ................................12 A. Main features ............................12 B. Overview ..............................13 C.
  • Page 6 Raption B. Modem configuration ..........................69 6. OCPP 1.5 ................................84 A. Introduction ..............................84 B. Before starting ............................85 C. Configuration...............................87 7. OCPP 1.6 ................................96 A. Introduction ..............................96 B. Before starting ............................97 C. Configuration ............................98 8. Monitoring ..............................108 9. Output power setup ............................110 A.
  • Page 7 Raption Instruction Manual...

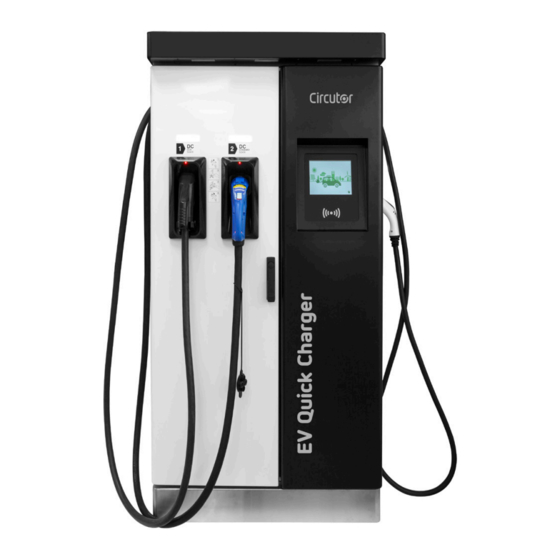

  • Page 8 The CIRCUTOR Charge Point provides the fastest way to charge electric vehicles nowadays. Its innovative and original design provides a quick and intuitive way for recharging the electric vehicles, according to the current regulations.

  • Page 9: So, Hello

    Raption So, hello! General: • Compliant with IEC 61851; Electric vehicle conductive charging system (IEC 61851-1, IEC 61851-22 and IEC 61851-23). • Compliant with IEC 62196; Plugs, sockets-outlets, vehicle connectors and vehicles inlets, Conductive charging of electric vehicles (IEC 62196-1, IEC 62196-2 and IEC 62196-3).
  • Page 10 (broken connectors, caps • Do not modify the Charge Point. If that don’t close...). modified, CIRCUTOR will reject all • Use only CIRCUTOR supplied spare responsibility and the warranty will be void. parts. • Comply strictly with electrical safety •...
  • Page 11 Raption Instruction Manual...

  • Page 12: Features

    Raption Main features • HMI: there is a TFT colour touch screen of 8 inches, is the interface between the Charge Point and the user. Provides detailed information for starting and stopping the charge, including information concerning the recharge that is in progress (charge state of the battery, charging time remaining, etc).

  • Page 13: Overview

    Raption Features Overview 1- Cover 2- Exit AC cable 3- AC light beacon 4- CHAdeMO connector 5- Unit air inlet 6- Power Modules air outlet 7- Decorative front panel 8- Decorative rear panel 9- Handle 10- CHAdeMO holder 11- CCS holder 12- AC holder or socket 32A 13- CCS light beacon 14- CHAdeMO light beacon...

  • Page 14: Dimensions

    Raption Dimensions • Units specified in millimeters: Instruction Manual...

  • Page 15: Status Beacon Lights

    Raption Status Beacon lights Over each connector there is a beacon light, it indicates the state of charge in which the socket/connector is located. CHA LED Beacon AC LED Beacon CCS LED Beacon Colour Status Description Green Available The connector or socket is available to start a charging ses- sion Blue Charging...

  • Page 16: Connectors

    Raption Connectors The Charge Point is equipped with three connectors of different load; these can recharge a large range of vehicles: • AC (Mode 3): Type 2 tethered cable (63A/44kW) or Type 2 socket (32A/22kW) • DC (Mode 4): CHAdeMO, Tethered cable, 3m. Until 125 A / 50 kW •...
  • Page 17 Raption Watch Out!! If your Charge Point is equipped with the ‘Mechanical connector locking’ accesory at DC holders, is not possible to pull back the connectors from holders without first unlocking it. There are one label placed between the CHAdeMO and the CCS holders explaining about this function.
  • Page 18 Raption The connectors will be delivered right in the moment than the user push over the ‘Connector touching button’ when choose the option in the HMI screen: At the AC side for every Charge Point (It is not an optional device) there is a manual lock for keeping the connector, follow the indications shown on the label in order to remove the AC connector.
  • Page 19 Raption Instruction Manual...

  • Page 20: General

    Raption General The first time the Charge Point is powered on, the system will take around 10 seconds for starting up, the screen will show next image: In the lower right corner, it shows the firmware version. After that 10 seconds have passed, the first screen that appears is the screensaver, Tap over this screen, and the HMI will skip to the next screen.

  • Page 21: How To Use It

    Raption How to use it ? At this new screen, the Charge Point is asking for showing the identification method the user is going to use in order to start a charge transaction, as you can see there are three options. - Showing the identification card or a code reader, are the options that will let to initiate a ‘Charging session’...
  • Page 22 Raption Also, at this screen and during all the process is possible to change language, pressing on the top of the screen over the ‘Flag’ touch symbol: Next screen will appear, press over your language’s flag: Instruction Manual...

  • Page 23: Starting A Charging Session

    Raption Starting a charging session - Once you have shown your identification card, the HMI will show next screen: Wait while Charge Point performs identification - If everything is correct and the user is authorized, the HMI will show next screen: Instruction Manual...
  • Page 24 Raption - Now, the user can choose the connector, always depending of the sort of vehicle that you have and if the connector status is available: At any time is possible to press over this button in order to go back to the “identification screen”.
  • Page 25 Raption 2- Checking vehicle connection… Please wait - In a few seconds, the charging session will start and the HMI will show the charging process. Pressing over this button, the screen will go back to the “identification screen”. Instruction Manual...

  • Page 26: Special Events Starting A Charge

    Raption Special events starting a charge A - “Not authorized”: some Charge Points could be working under the supervision of the main management system, called Back Office. It can generate a whitelist in order to register new users, manage charging sessions, etc. If the user is not authorized, the HMI will show the following message: B - “Authorization failed”: if there is some communication problem with the Back Office right at the connecting time:...
  • Page 27 Raption C - “Not authorized, Concurrent charge”: in this case, the identifier is already involved in another charge transaction: D - “Not authorized, Authorization expired”: is possible that the back office has put deadline to your identification card and this date is already expired: Instruction Manual...
  • Page 28 Raption E - “Not authorized, Authorization blocked”: is possible that the back office has blocked temporarily your identification card. F – After the user has been properly authorized and just at the moment that has to choose the connector, the screen will show the connectors status, it could appear some problem. It is possible to use the connector painted in dark grey but it will be impossible to use any connector with another symbol or light grey, like next: Instruction Manual...
  • Page 29 Raption G - Another issue that can occur is “Vehicle not detected”, unlock the connector, connect again and press over ‘Retry’ button. H – Almost all vehicles cannot charge if the shift lever is not in parking mode position. This situation can be detected for the Charge Point and it will be displayed by HMI as “Please, check vehicle shift position, put in parking mode”, after press over ‘Retry’...
  • Page 30 Raption I – Is possible that the problem than appears is not a concrete one, the HMI will show next screen, press over ‘Retry’ button. Instruction Manual...

  • Page 31: Stopping A Charging Session

    Raption Stopping a charging session - The HMI is showing the charging process and next message “Show your identification to stop”, the session can be stopped by the same user that has started it. - After showing your identification card, the Charge Point will allow you to stop the charging session, press over the ‘Stop’...
  • Page 32 Raption - Once you have stopped the charging session, the HMI will show the summary screen, press over the ‘Exit’ touch button and disconnect your vehicle: Instruction Manual...

  • Page 33: Charging Information

    Raption Charging information The following images show the basic charging process information. Depending of the kind of charging that it has been done either AC or DC, the HMI screen can show different process information. 1- Language button: pressing over this button it is possible to change the HMI language. 2- Charge point information: name, drawing and power available of socket chosen.

  • Page 34: Charging Summary

    Raption Charging summary The following image appears when EVs have finished charging or the session has been interrupted by the user. Depending on the kind of charging that it has been done either AC or DC, the HMI screen can show different process information.
  • Page 35 Raption 1- Language button: pressing over this button it is possible to change the HMI language. 2- Process instructions: different instructions can be displayed. 3- Energy charged: total energy charged at the end of the charging session. 4- Battery status: remaining battery at the end of the charging session. 5- Stop reason: It shows why the charging session has been stopped.

  • Page 36: Emergency Button

    Raption Emergency button If for any reason the Emergency button has been pressed, the beacon lights are in red and it will not be possible to do any charge. All the power modules will shut down in order to protect the user and the own Charge Point. The HMI screen will remain power up in order to show the instructions.

  • Page 37: Connectors Status

    Raption Connectors status The HMI screen shows a different symbols over the connector pictures, as you can see below: It means that there is not any problem in this connector and is ready for use. This connector is out of service for any technical reason. Press over ‘Information’...
  • Page 38 Raption The user cannot use this connector because another user is already using it. This connector has been reserved and only will be able to use per the user that has made the reserve. Note: if the user that has reserved the Charge Point is yourself the charging session will start normally, if not, the Charge Point will not be able to charge until the date and time displayed have expired.

  • Page 39: Consulting The Connectors Status

    Raption Consulting the connectors status It is possible to press over each connector picture to get more information about the status: 1 — C O N N E C T O R A B L E 2 — E R R O R C O N N E C T O R Instruction Manual...
  • Page 40 Raption 3 — C O N N E C T O R D I S A B L E 4 — C O N N E C T O R I N U S E Instruction Manual...
  • Page 41 Raption 5 — C O N N E C T O R R E S E R V E D 6 — C O N N E C T O R B L O C K E D P E R R E S E R V E D Instruction Manual...
  • Page 42 Raption 7 — C O N N E C T O R B L O C K E D P E R C H A R G I N G Instruction Manual...

  • Page 43: Errors

    Raption Errors The Charge Point can report about different sort of errors, it can be from different parts or devices from it. Instruction Manual...

  • Page 44: Introduction

    Raption Introduction The Charge Point can be configured and monitored to establish owner preferences or specific setup using integrated Ethernet communication port allocated in HMI screen device (see below). Once Service PC is configured as bellow procedure and connection established with the Charge Point, direct access to the main setup page will be showed.

  • Page 45: How To Configure It

    Point. Service PC running Microsoft Windows, at least Windows XP . UTP Cable (Crossover recommended) IPSetup.exe PowerStudio Scada Client http:/ /circutor.com/ In order to get the software needed, you can download it from downloads/ sat@circutor.com or contact with Instruction Manual...

  • Page 46: Network Topology

    Raption Network topology Connecting the Service PC with Charge Point needs to be done with static IP address and TCP/IP v4 protocol. Next section shows how to do this configuration. Below image shows Ethernet connection topology and the IP addresses used in this guide as example. For Service PC →...

  • Page 47: Lan Connection Procedure

    Raption LAN connection procedure This section provides a step-by-step guide to connect the Service PC to the Charge Point in order to see real-time status. 1- On the Service PC click over the ‘Network icon’ next to the clock of the taskbar, and click on ‘Open Network and Sharing Center’...
  • Page 48 Raption 3- Make right click on ‘Local Area Connection’ and then click on ‘Properties’ 4- Select ‘Internet Protocol Version 4 (TCP/IP)’ option and click on ’Properties’ Instruction Manual...
  • Page 49 Raption 5- Setup IP address and subnet mask like as shown here below and click ‘OK’ twice to complete the assigning IP address process to the computer. 6- Now execute IPSetup.exe software provided on the Service PC Instruction Manual...
  • Page 50 Raption 7- Enter the following parameters and click on ‘Configure’ • MAC of the Charge Point (see label on the cover’s screen) • IP address: i.e.(192.168.1.50) • Netmask: i.e. (255.255.255.0) • Gateway: leave default settings. 8- Wait 30 seconds approximately until the process is complete. Instruction Manual...
  • Page 51 Raption 9- The process will complete when the following message appears, click on ‘OK’ 10- If the message shown is the next one, check the following parameters and click on ‘OK’ • Check IP address entered. • Check the MAC of the device entered. •...

  • Page 52: Setup Webpage

    Raption Setup Webpage Setup webpage allows managing networking setup, upgrading devices and other options. Once the Service PC is already connected with Charge Point, it is possible to open Setup Webpage throug the IP entered. In the example shown in the previous section, it has been set 192.168.1.50 Open a web browser on the service PC and enter this IP, next image will appear.

  • Page 53: Dashboard

    Raption Dashboard COMMUNICATIONS As a relevant information, it shows: Value Description Short for Internet Protocol. Identifier that allows information to be sent between devices on a network. MAC Address Identifier of the network card of the Charge Point CHARGE POINT It is displayed if the Charge Point is available to be used or not.

  • Page 54: Monitor

    Raption Monitor In this section, it can be consulted the status of the Charge Point, the type of connectors it has and the availability of them. It is possible to start or stop a charging session, able or disable a connector or lock or unlock it remotely.

  • Page 55: Historic

    Raption Historic This section provides information of every charge transaction started in the Charge Point. It can be checked date and hour of begin and end of a charge transaction, energy charged, alias of the user and type of charge used. All of this elements have the chance to be organized depending on the user needs.

  • Page 56: Integrations

    Raption Integrations Clicking over the ‘Integrations’ tab, user will be able to activate OCPP integrations. Note: the integration of the Charge Point needs a separate chapter. In the next chapters number 6 and 7 it is explained how to integrate OCPP. Instruction Manual...

  • Page 57: Configuration

    Raption Configuration In this section, there can be adjusted many different settings related with the Charge Point, depending on the elements it has and level of security it is desirable to have. IDENTIFICATION METHOD It is possible to enable or disable the option to use the Charge Point with or without identification and also if the user is capable to stop charge transaction.
  • Page 58 Raption Enable ChargeBox Id option allows the system to differentiate every single charge point separately, in order to use this data by the back end system. As a Pre-authorisation amount, it can be configurated the amount of money that the bank blocks to the user once the charge transaction starts.
  • Page 59 Raption COMMUNICATIONS This section provides basic configuration of the network parameters. DHCP server (router) means to enable or disable the IP address assignment. To be enabled when working with the integrated modems. Instruction Manual...
  • Page 60 Raption Short for Human Machine Interface. In this section, there can be adjusted many settings related with the Display. In General tab it is possible to adjust screen brightness and enable or disable the email support and timeout. Also, in the Charge Point can be uploaded up to 20 languages between the wide variety able to choose.
  • Page 61 Raption In Screensaver tab it is possible to adjust timeout and brightness and enable or disable advertisements, what lets customise the Screensaver image by uploading a file. TARIFFS In this section, it can be adjusted the cost of a charge transaction in the Raption station. These settings are just displayed to inform the customer.
  • Page 62 Raption There are few parameters that can be adjusted: Value Description Currency Choose the proper currency according to the area the Charge Point is installed Price Limit Maximum cost of the charge transaction Fixed service fee Price of a new charge transaction Energy fee Amount of money to be payed based on the energy delivered to the EV...
  • Page 63 Raption SECURITY In this chapter could be introduced a user and password in order to enter in the web setup. It is possible this option to be changed whenever is desired. Note: Old password is 1234 by default. Instruction Manual...

  • Page 64: Maintenance

    In this section, it can be consulted the status of the devices which are communicating via RS-485. UPDATES Through this tab, the Charge Point firmware and the application can be upgraded remotely. To obtain the latest firmware version, please contact CIRCUTOR Post Sales Department. Instruction Manual...
  • Page 65 Raption DIAGNOSTICS Clicking over the ‘HW Testing’ tab, it appears to enable or disable Grid test option. That means HMI shows a test screen to check that touch function works properly. The logs shown in this section are automatically produced by the Charge Point. It is a detailed list of the charging sessions, system performance or user activities.
  • Page 66 Raption SYSTEM STATUS The information shown in this section is basically relative to the state of the PC of the Charge Point. It is necessary for the technical service staff but does not show any information regarding to the external connection of the Charge Point or to the charging session. ADVANCED This section allows setting the time and region time for the Charge Point.
  • Page 67 Raption Next, we will explain the different sections of the 'Date and time' and 'Reset' Value Description Time Zone Select the regional time for the Charge Point according to the location Time Current date and time of the Charge Point Primary NTP Server Synchronize the time through internet automatically Secondary NTP Server...

  • Page 68: Communications

    Introduction This section describes how to install the SIM card and setting up the modem. The modem that has been installed in Raption Series is Teltonika RUT 240. Modem location The modem is installed inside the unit and the antenna is fixed outside, right on the Charge Point’s roof.

  • Page 69: Modem Configuration

    Raption Communications Modem configuration 1 — M O D E M O V E R V I E W The 4G modem installed from factory in the Charge Point is: Teltonika RUT240. This device allows to the Charge Point connects over 4G networks to remotely view or manage the Charge Point status.
  • Page 70 Raption 2 — C O N N E C T I O N S TAT U S L E D Explanation of connection status LED indication: • Signal strength status LED’s turned on: router is turning on • 2G, 3G and 4G LED’s blinking every 1 sec: no SIM or bad PIN •...
  • Page 71 Raption 3 — S I M C A R D I N S TA L L AT I O N Explanation of SIM card installation: Insert SIM card which was given by your ISP (Internet Service Provider). Correct SIM card orientation is shown in the picture.
  • Page 72 Raption 4 — L O G G I N G I N After you’re complete with the setting up as described in the section above, you are ready to start logging into your router and start configuring it. This example shows how to connect through Wi-Fi: For cibersecurity reasons, modem’s WiFi connection is disabled by default.
  • Page 73 Raption 4.3.- Open a web browser and type http:/ /192.168.1.1 . Use the following parameters when prompted for authentication, and then either click Login with your mouse or press the Enter key. User name: admim Password: Admin01 You have now successfully logged into the RUT240!, from here on out you can configure almost any aspect of your router.
  • Page 74 1. If your SIM provider require any authentication ask them about what type, PAP or CHAP, select it on ‘Authentication method’ field and introduce a password and username. 2. if you need to do some custom over the modem configuration, ask the CIRCUTOR PS- Support staff in order to get the Teltonika modem manual.
  • Page 75 Raption 4.6.- In order to know if the connection has been done properly, check next steps: Go to Status →Network → Mobile and pay attention to Data connection state, it has to be Connected Go to Status → Network → WAN and pay attention to IP address, the modem must has found a public IP address Instruction Manual...
  • Page 76 Raption Go to Status → Network → LAN → DHCP Leases and pay attention to IP addresses At ‘DHCP Leases’ check that the modem has detected the automatic IP address and MAC number for both, your Service PC and the Charge Point. NOTES: 1.- If the modem has not detected the automatic IP address, switch off the Q10.1 circuit breaker for Raption 50 (Q14.3 in case of Raption 50 HV, Raption 50 EVO and Raption 100),...
  • Page 77 Raption 4.7.- Go to Network → LAN → Static Leases Complete the fields with next information: Hostname: It can be written the name that you want for your Charge Point. It is highly recommended to name it keeping this structure: ChargePoint_xxxxxxxxxxxx, to identify it easier.
  • Page 78 Raption 4.8.- Disconnect the MCB Q10.1 (Q14.3 in case of Raption 50 HV, Raption 50 EVO and Raption 100) inside the Charge Point in order to do a hard reset over the modem and the HMI screen, after 10 seconds switch ON again the MCB. Model for Raption 50 Model for Raption 50 HV, Raption 50 EVO and Raption 100 4.9.- Repeat again the points 4.2.
  • Page 79 Raption 4.10.- Now, go again to Status → Network → LAN → DHCP Leases and confirm that the information written at the point 4.7. has been successfully recorded: Hostname - the name given for Charge Point MAC address - the MAC of the Charge Point IP address - 192.168.1.50 Instruction Manual...
  • Page 80 Raption 4.11.- Go to Network → Firewall → Port Forwarding → New Port Forward Rule The ports that you can see in the table below are introduced in the modem by default, although only the named 50000 and 9191 are enabled: Name Protocol External port (S)
  • Page 81 Raption 4.12.- Go to Network → Firewall → Traffic Rules Roll down and look for ‘Enable_HTTP_WAN’ and ‘Enable_HTTPS_WAN’ fields and enable these. Roll down again and push over ‘Save’ button. Instruction Manual...
  • Page 82 Raption 4.13.- For ending with the modem logging is necessary to do a reboot: Go to System → Reboot and push over the ‘Reboot’ tab During the process, the system will show the progress, do not switch off the modem. 4.14.- Repeat again the point 4.2.
  • Page 83 Raption 4.15.- It is necessary to check that the Teltonika RUT240 LTE modem option is chosen at Charge Point’s setup webpage: Make sure that your Service PC is still connected with the Charge Point through Wi-fi, open a web browser and type 192.168.1.50. Go to Configuration →...

  • Page 84: Ocpp 1.5

    Charge Point and Central System. With this open protocol it is possible to connect any Central System with any Charge Point, regardless of the vendor. Follow next steps in order to configure the OCPP 1.5 in the CIRCUTOR Charge Points. Instruction Manual...

  • Page 85: Before Starting

    Raption OCPP 1.5 Before starting Check following steps in order to ensure the correct function of OCPP 1.5: Go to the Setup Webpage → ‘Configuration’ tab → ‘Communications’ tab Once in ‘General’ section, ‘Public IP source’ establishes where the Charge Point must obtain the public IP address in order to send it later to the backend.
  • Page 86 Raption Go to the Setup Webpage → ‘Integrations’ tab → ‘General’ tab Choose the option selected under ‘Available integrations’ according to your backend policies as shown in the picture: Charge Point supports different versions of OCPP but only one can be enabled at the same time.

  • Page 87: Configuration

    Raption Configuration Go to the Setup Webpage → ‘Integrations’ tab → ‘Network’ tab In this section it is possible to modify some parameters related with network. Parameter Description Incoming OCPP TCP Incoming listening port for remote request (internal) Port (Internal) Incoming OCPP TCP Incoming listening port for remote request (public) Port (External)
  • Page 88 Raption Go to the Setup Webpage → ‘Integrations’ tab → ‘Settings’ tab Check OCPP Settings according to the backend policies, please contact to the Central System to get the configuration parameters: Before making any changes read following table and set each option according to your backend provider.
  • Page 89 Raption Parameter Description Enabled: Synchronization of date and time. Use OCPP time Disabled: Synchronization of date and time. synchronization Note: Date and Time is sent from backend on each heartbeat response. Partial: Sends partial energy consumption while vehicle is charging. Energy for MeterValues Total: sends the actual count of the total accumulated en- ergy meter.
  • Page 90 Raption Parameter Description ID Tag Endianness Storage type for system data. Able to choose between (LIT- TLE>BIG) Enabled: Send power (Power.Active.Import) and energy (En- ergy.Active.Import.Register) consumed by the vehicle within Include Power Active Import in meter values requests. MeterValues Disabled: Only energy consumed is sent within meter values request.
  • Page 91 Raption Parameter Description Enabled: If StatusNotification, StartNotification or StopNo- tification are not received correctly by the backend, the Charge Point retries again to send those requests until it is received correctly. Retry after CS internal error Disabled: The Charge Point is not allowed to retry after an internal error.
  • Page 92 Raption Go to the Setup Webpage → ‘Integrations’ tab → ‘SSL Certificates’ tab When working with ‘secure’ connections, HTTPS, a certificate from the backoffice (normally a ‘bundle’ file) may be needed to assure proper communication with the charging station. Depending on the case, select the proper option and press Browse button in order to upload the certificate.
  • Page 93 Raption Go to the Setup Webpage → ‘Integrations’ tab → ‘Configuration keys’ tab Parameter Description Heartbeat interval Number of seconds between Heartbeats. Note: setting this value to 0 disables the Heartbeat. Metervalues sample Number of seconds between MeterValue during an ongoing Charge interval Transaction.
  • Page 94 Raption Go to the Setup Webpage → Integrations → ‘Backup’ tab It is possible to download a backup of the Charge Point pressing ‘Download setup’ button. On the other hand, it can also be uploaded a backup previously downloaded from another Charge Point.
  • Page 95 Raption Instruction Manual...

  • Page 96: Ocpp 1.6

    Charge Point and a Central System. With this open protocol it is possible to connect any Central System with any Charge Point, regardless of the vendor. Follow next steps in order to configure OCPP 1.6 in the CIRCUTOR Charge Points. Instruction Manual...

  • Page 97: Before Starting

    Raption OCPP 1.6 Before starting Check following steps in order to ensure the correct function of OCPP 1.6: Go to the Setup Webpage → ‘Integrations’ tab → ‘General’ tab Once in ‘General’ section, Public IP source establishes where the Charge Point must obtain the public IP address in order to send it later to the backend.

  • Page 98: Configuration

    Raption Configuration Go to the Setup Webpage → ‘Integrations’ tab → ‘General’ tab Charge Point supports different versions of OCPP but only one can be enabled at the same time. Go back to setup web page and click on the ‘Integrations’ tab, choose the option selected under ‘Available integrations’...
  • Page 99 Raption Parameter Description Charge Point ID Charge Point identifier Basic Set an authentication if required, being the options 'Enabled' and Authentication 'Disabled' Connection URL URL address of the central system CS-Password Introduce CS-Password if required Instruction Manual...
  • Page 100 Raption Go to the Setup Webpage→ Integrations → ‘Settings’ tab Once OCPP 1.6 option is selected, a link appears allowing access to the OCPP configuration. Please, click on the link button as shown in the picture: Instruction Manual...
  • Page 101 Raption Parameter Description Enabled: Synchronization of date and time Use OCPP time Disabled: Synchronization of date and time synchronization Note: Date and Time is sent from backend on each heartbeat response. Partial: Consumed value of energy by the vehicle sent between start Energy for Start/ and stop.
  • Page 102 Raption Go to the Setup Webpage → Integrations → ‘SSL certificates’ tab For WSS connections is needed a Central System certificate. Upload it in this section. To obtain the latest certificates, please contact Central System you are working with. Instruction Manual...
  • Page 103 Raption Go to the Setup Webpage → Integrations → ‘Configuration keys’ tab Instruction Manual...
  • Page 104 Raption Parameter Description Enabled: maintain a local list of all presented identifiers that have been successfully authorized by the Central System. Authorization cache Disabled: authorization for presented identifiers is requested directly to the Central System Enabled: the Charge Point asks for authorization when the Central Sys- Authorize remote Tx tem sends a remote start requests...
  • Page 105 Raption Parameter Description Enabled: during offline period locally-authorized identifiers are al- Local authorize lowed to start charging off-line Disabled: during offline period locally-authorized identifiers are NOT allowed to start charging Enabled: stop existing Charge Transaction after response from Central Stop transaction on System when user is blocked, expired or invalid.
  • Page 106 Raption Go to the Setup Webpage → Integrations→ ‘Backup’ tab It is possible to download a backup of the Charge Point pressing ‘Download setup’ button. On the other hand, it can also be uploaded a backup previously downloaded from another Charge Point.
  • Page 107 Raption Go to the Setup Webpage→ Integrations → ‘Security’ tab In this chapter could be introduced a user and password in order to enter in this section. It is possible this option to be changed whenever is desired. Note: Old password is 1234 by default. Instruction Manual...
  • Page 108 The IP address assigned in the chapter 5, will be useful to connect with the Charge Point in order to monitor the real-time status. The main way to connect is using the PowerStudio client software supplied by CIRCUTOR, and can also be downloaded in the download area of the CIRCUTOR website.

  • Page 109: Monitoring

    Raption Monitoring Instruction Manual...

  • Page 110: Output Power Setup

    Raption Introduction This section shows how to manage the output power delivered by the Charge Point for DC and AC. To do this action you have to keep connected through the program PowerStudio Client software. Limiting the output power will be useful if the input power supply for the Charging Point is not enough powerful to feed and keep a good level of charge for electric vehicles.

  • Page 111: Maximum Output Power For Dc

    Raption Output power setup Maximum output power for DC Steps: 1- Execute PowerStudio Client software 2- Push on ‘General’ tab and after on ‘Connect’ tab Instruction Manual...
  • Page 112 Raption 3- Enter the IP address given to the Charge Point and port number , after, press over ‘Ok’ 4- Press on the ‘Device’ tab icon at the TOOLBAR and after click on ‘DC-Mode 4’: Note: inside DC-mode 4 is necessary to modify the output power for both DC charges type, CHAdeMO and Combo (CCS) Instruction Manual...
  • Page 113 Raption 5- Once the ‘DC-Mode4’ device is already opened, press over the ‘CHAdeMO-General 1’ tab: 6- Once the ‘CHAdeMO-General 1’ is already opened, press over ‘Setup’ tab: Instruction Manual...
  • Page 114 Raption 7- The pop-up window below appears, at ‘Limit Power’ tab it is possible to set the maximum DC power output, it can be selected from 10000 W til 50000 W. Click ‘OK’ to confirm changes. Note: It is mandatory write the same variables for CHAdeMo as for Combo (CCS). Do not change any other variable.
  • Page 115 Raption 8- After changing the CHAdeMO output power, we are going to change the CSS output power, press over ‘Combo - General 1’ tab and then over ‘Setup’ tab: 9- Force the ‘Limit power’ variable between 10000 W til 50000 W as has been shown in the previous step 7 for CHAdeMO.

  • Page 116: Maximum Output Power For Ac

    Raption Maximum output power for AC For setting the maximum output power for AC is necessary to use the software ‘Charge Point Setup’, ask for it to the CIRCUTOR technical support staff. Steps: 1- Execute Charge Point Setup 2- Introduce the Charge Point’s IP and push over ‘Connect’ tab.
  • Page 117 Raption Instruction Manual...
  • Page 118 Raption Raption 50 GENERAL DATA Display HMI 8" colour antivandal touch screen Light beacon RGB Colour indicator ISO / IEC 14443-1/2/3 RFID reader MIFARE Classic Legic Advant / Legic Prime RFID Extension ISO 15693/ISO 18092. Sony FeliCa Rated diversity factor CONNECTIVITY Ethernet 10/100BaseTX (TCP-IP)

  • Page 119: Technical Data

    Raption Technical Data STANDARDS IEC 61851-1; IEC 61851-23; IEC 61851-21-2; CE / Combo-2; CHAdeMO compatible; CCS (DIN 70121; ISO 15118) 520 mm with the cables hanged. ELECTRICAL DATA Power supply 3P+N+PE Model for 480 V mains: 3P+N+PE Power supply III Voltage range 400 V~ ±...
  • Page 120 Raption OPTIONAL DEVICES Wireless Comunication LATAM/APAC/4G LTE/GPRS/GSM Surge protection Four pole transient surge protector IEC 61643-1 (class II) Cable Length 5.5m (all cables) Anti-vandal connector protection CHAdeMO, CCS (mechanical connector locking) Type 2 Charging Socket Shutter Switch TCP ethernet 8 ports Network hub Switch TCP ethernet 12 ports Legic Advant / Legic Prime...

  • Page 121: Raption 50

    Raption MODELS SPECIFICATIONS Raption 50 - 400V Models CCS1 CCS1 CHA CCS1 T1C32 CCS1 T2S32 MODELS CCS2 CCS2 CHA CCS2 T2C32 CCS2 T2S32 Maximum AC input 76 A 76 A 108 A 108 A current Required power supply 53 kVA 53 kVA 75 kVA 75 kVA...
  • Page 122 Raption MODELS SPECIFICATIONS (Continuation) Raption 50 - 400V Models CCS1-CHA T1C32 CCS1-CHA T2S32 MODELS CCS2-CHA T2C63 CCS2-CHA T2C32 CCS2-CHA T2S32 Maximum AC input 108 A 108 A 138 A current Required power supply 75 kVA 75 kVA 96 kVA capacity CCS1-CHA T1C32 DC: 50 kW(@400Vdc) AC: 7.4 kW...
  • Page 123 Raption MODELS SPECIFICATIONS Raption 50 - 480V Models MODELS CCS1 CCS1 CHA CCS1 T1C32 63 A (@480V 3F) Maximum AC input 63 A 63 A current 35 A (@208-240V F-N) Required power supply 53 kVA 53 kVA 75 kVA capacity DC: 50 kW(@400Vdc) Maximum output DC: 50 kW (@400Vdc)

  • Page 124: Raption 50 Hv / Raption 50 Evo / Raption 100

    Raption Raption 50 HV / Raption 50 EVO / Raption 100 GENERAL DATA Display HMI 8" colour antivandal touch screen Lights for status indication RGB Colour indicator ISO / IEC 14443-1/2/3 RFID system MIFARE Classic CONNECTIVITY Ethernet 10/100BaseTX Interface protocol OCPP 1.5 or OCPP1.6J Wireless Comunication EU 4G LTE / WiFi Hotspot / GPRS / GSM...
  • Page 125 Raption ELECTRICAL DATA Power supply 3P+N+PE Voltage range 400 V~ ± 10% Power factor > 0.98 Efficiency 95 % at nominal output power Frecuency 50/60 Hz Electrical protections Main breaker disconnection EN 50470-1 and EN 50470-3 (MID European standards) AC electrical meter or IEC 62052-11 Overcurrent protection Safety protection...
  • Page 126 Raption MODELS SPECIFICATIONS Raption 50 HV / Raption 50 EVO - 400V Models Raption 50 HV Power output DC of 50 kW (non upgradable) Raption 50 EVO Power output DC of 50 kW (upgradable up to 100 kW) CCS1 CCS1 CHA CCS1 T1C32 MODELS CCS2...
  • Page 127 Raption MODELS SPECIFICATIONS (Continuation) Raption 50 HV / Raption 50 EVO - 400V Models CCS1 T2S32 CCS1-CHA T1C32 CCS1-CHA T2S32 MODELS CCS2 T2S32 CCS2-CHA T2C32 CCS2-CHA T2S32 Maximum AC input 108 A 108 A 108 A current Required power supply 75 kVA 75 kVA 75 kVA...
  • Page 128 Raption MODELS SPECIFICATIONS Raption 50 HV / Raption 50 EVO - 480V Models Raption 50 HV Power output DC of 50 kW (non upgradable) Raption 50 EVO Power output DC of 50 kW (upgradable up to 100 kW) MODELS CCS1 CCS1 CHA CCS1 T1C32 63 A (@480V 3F)
  • Page 129 Raption MODELS SPECIFICATIONS Raption 100 - 400V Models CCS1 CCS1 CHA CCS1 T1C32 MODELS CCS2 CCS2 CHA CCS2 T2C32 Maximum AC input 160 A 160 A 192 A current Required power supply 110 kVA 110 kVA 132 kVA capacity CCS1 T1C32 DC: 100 kW(@400Vdc) AC: 7.4 kW Maximum output...
  • Page 130 Raption MODELS SPECIFICATIONS (Continuation) Raption 100 - 400V Models CCS1 T2S32 CCS1-CHA T1C32 CCS1-CHA T2S32 MODELS CCS2 T2S32 CCS2-CHA T2C32 CCS2-CHA T2S32 Maximum AC input 192 A 192 A 192 A current Required power supply 133 kVA 134 kVA 135 kVA capacity CCS1-CHA T1C32 DC: 100 kW(@400Vdc)
  • Page 131 Raption MODELS SPECIFICATIONS Raption 100 - 480V Models MODELS CCS1 CCS1 CHA CCS1 T1C32 132 A (@480V 3F) Maximum AC input 132 A 132 A current 35 A (@208-240V F-N) Required power supply 110 kVA 110 kVA 132 kVA capacity DC: 100 kW(@400Vdc) Maximum output DC: 100 kW (@400Vdc)
  • Page 132 Raption Instruction Manual...

  • Page 133: Need Help

    CIRCUTOR guarantees its products against any manufacturing defect for two years after the delivery of the devices. CIRCUTOR will repair or replace any defective factory product returned during the guar- antee period. • No returns will be accepted and no device will be repaired or replaced if it is not accompanied by a report indicating the defect detected or the reason for the return.
  • Page 134 CIRCUTOR, SA. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www. circutor.com central@circutor.com...

This manual is also suitable for:

Raption 100Raption 50 evoRaption 50 hv

Table of Contents
