- Page 1 URBAN M11, T11, M12, T12 INSTRUCTION MANUAL (M316B01-03-20A)
-
Page 2: Revision Log
CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifi- cations and the most updated manuals. -
Page 3: Table Of Contents
URBAN M11, T11, M12, T12 Here’s your manual to use and configure URBAN. Disclainer ........................2 Revision log ......................2 Here’s your manual to use and configure URBAN..........3 1.-So, hello! ......................4 2.-Main features .....................6 3.- How to use it? ....................8 4.- LED beacon sequence ..................10 5.- Technical data ....................12... - Page 4 URBAN M11, T11, M12, T12 This manual provides commissioning information, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851. This document has different sections describing electrical components inside the charge station and a step-by-step installation procedure.
-
Page 5: So, Hello

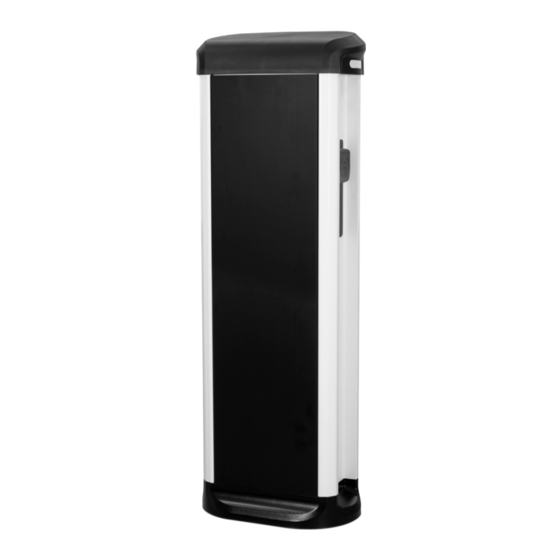

URBAN M11, T11, M12, T12 So, hello! I M P O R TA N T S A F E T Y I N S T R U C T I O N S Read carefully all the instructions before manipulat- ing the charge point. - Page 6 URBAN M11, T11, M12, T12 1 — Hat 2 — LED Beacons 3 — Key lock access 4 — Base Instruction Manual...
-
Page 7: Main Features
URBAN M11, T11, M12, T12 Main features Charge Point may not include elements of electrical protection. • Plug ‘n’ Charge: Basic operation, start charging when vehicle is detected, no need to authenticate. • LED beacon: Three colour led indicates the status of the connectors. - Page 8 URBAN M11, T11, M12, T12 Standby The unit has two LED beacons (one for each plug). When it is green, it means that the unit is available and ready to start a charge transaction (A status, according to IEC 61851).
-
Page 9: How To Use It
URBAN M11, T11, M12, T12 How to use it? Charged When the EV is fully charged, the LED beacon shows a fix green. Stop Simply unplug the cable from the EV. Once the cable is disconnected from the EV, the LED status bar turns back to green (A status, according to IEC 61851). - Page 10 URBAN M11, T11, M12, T12 Battery overheating If overheating of the battery is detected, the unit stops charging and the LED turns green. When the battery temperature becomes correct, the charger recharges the vehicle and the LED turns blue. Instruction Manual...
-
Page 11: Led Beacon Sequence
URBAN M11, T11, M12, T12 LED beacon sequence Errors When the unit has an error, the LED bar shows a fix red. Instruction Manual... - Page 12 URBAN M11, T11, M12, T12 ELECTRICAL DATA Power supply 1P+N+PE 3P+N+PE Input voltage 230V~±10% 400V~±10% Input Current (max) 35 A 67 A 35 A 67 A Frequency 50Hz / 60Hz 2: Socket A, 2: Socket A, Number of sockets Socket B...
-
Page 13: Technical Data
URBAN M11, T11, M12, T12 Technical Data MECHANICAL DATA Enclosure door Frontal key locked door Net weight 55Kg Dimensions (W x H x D) 438 x 1264 x 288 mm Min. cable section 25 mm STANDARDS IEC 61851-1: 2010, IEC 61851-22: 2001, IEC 62196-1: 2014, IEC 62196-2: 2011, 2014/35/UE, LVD;2014/30/ Optional. - Page 14 URBAN M11, T11, M12, T12 Instruction Manual...
-
Page 15: Need Help
URBAN M11, T11, M12, T12 Need help? In case of any query in relation to unit operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 (Spain) / +34 937 452 919 (outside of Spain) email: sat@circutor.com... - Page 16 CIRCUTOR, SA. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www. circutor.com central@circutor.com...
