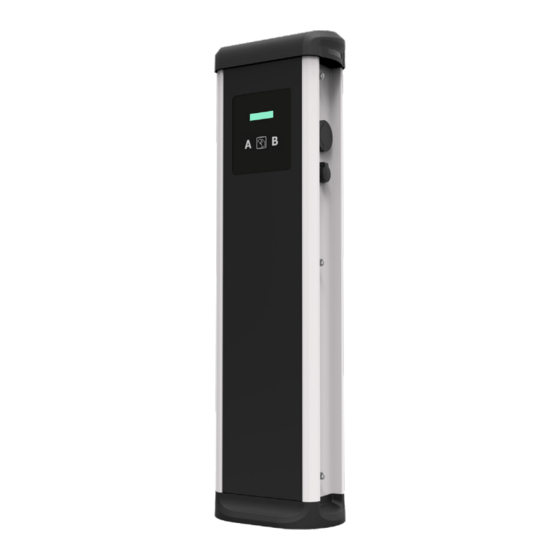

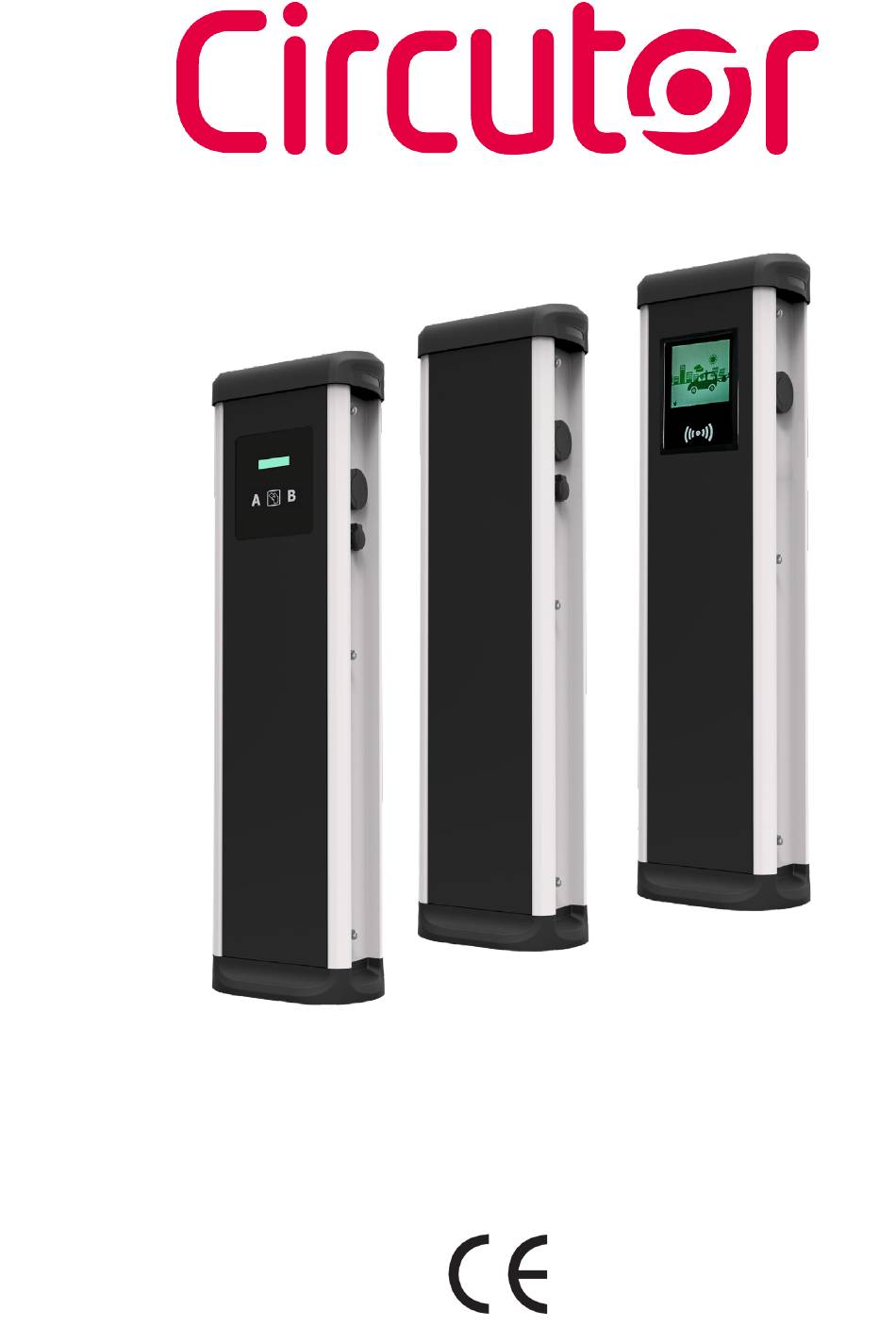

- Page 1 URBAN Series INSTALLATION GUIDE (M177A01-03-19A)
-
Page 2: Disclaimer
CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifications and the most updated manuals. -
Page 3: Table Of Contents
URBAN Here’s your guide to install URBAN. Disclaimer ..............................2 Revision log..............................2 Here’s your guide to install URBAN.....................3 1.-So,hello!..............................4 2.-Before the installation...........................6 A. Minimum distances........................9 B. Foundation.............................11 3.- Dimmensions and Overview......................12 4.-Installation............................14 A. Opening............................14 B. Positioning............................15 C. Fixation.............................16 D. Metal plate............................17 E. - Page 4 URBAN Installation Guide...
-
Page 5: So,Hello
URBAN So, hello! This manual provides commissioning information, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851. This document has different sections describing electrical components inside the charge station and a step-by-step installation procedure. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT SAFETY INFORMATION IN THIS DOCUMENT ELECTRIC RISK... - Page 6 (broken plugs, caps that don’t close...). • Do modify this unit. only CIRCUTOR supplied modified, CIRCUTOR will reject • Use spare parts. all responsibility and the warranty will be void. • Do not use this product if the • Comply strictly with electrical...
-
Page 7: Before The Installation
URBAN Before the installation E L E C T R I C A L W I R I N G C O N S I D E R AT I O N S Take into consideration this section before start wiring connections of the charge point. - Page 8 URBAN What’s included: Installation guide Charge Point Installation Guide CirCarLife RFID Mifare Card URBAN Post Key Foundation Kit Installation Guide...
-
Page 9: Minimum Distances
URBAN Minimum Distances When installing the unit, respect the minimum distances space for maintenance and safety reasons. Please comply accordingly to your country specifications. The next picture shows how it should be installed. • Do not install near areas where water or fluids can penetrate into the unit. •... - Page 10 URBAN Foundation Kit: Nuts DIN 934 M16 Washers DIN 9021 M16 Templates Foundation bolts Installation Guide...
-
Page 11: Foundation
URBAN Foundation • Place the foundation bolts into the template using provided nuts with the help of a 24mm open-end wrench. • Once the kit is assembled, it must be placed in the ground taking into consideration the following measures. Measures in mm Front view Side view... - Page 12 URBAN 1544 1351 Measures in mm Installation Guide...
-
Page 13: Dimmensions And Overview
URBAN Dimmensions and Overview URBAN M21 - T21 - M22 URBAN MASTER URBAN SLAVE - T22 - T22-C - T24-MIX 1.- Hat 4.- Key lock access 7.- Touch screen 2.- LED Beacons 5.- Base 8.- RDIF Reader 3.- Socket 6.- Display & RDIF Reader Sockets may vary depending on the model. - Page 14 URBAN Opening • Use provided key in order to open the unit (Key : type saw (EMKA EK333)): Installation Guide...
-
Page 15: Installation
URBAN Installation Positioning Remove the template nuts before proceeding. Place the charge point through the four foundation bolts. Installation Guide... -
Page 16: Fixation
URBAN Fixation Firmly tighten the 4 nuts using a 24mm open-end wrench. Installation Guide... -
Page 17: Metal Plate
URBAN Metal plate • It is recommended to install a cable glands (not supplied) in pre-holes position. • Assembly metal plate using the 4 supplied screws as shown below: Installation Guide... -
Page 18: Wiring
URBAN Wiring SINGLE-PHASE CHARGE POINT THREE-PHASE CHARGE POINT • Connect to the 230V~. • Connect to the 400V~. • If the Power Supply is Single- Phase, connect L1 and N. Terminal block maximum cross-section: 35 mm Do not forget to connect the ground cable to the ground terminal Make sure all screws are securely tightened at 4...5 Nm... -
Page 19: Verification
URBAN Verification 1 — P O W E R I N P U T Before proceeding, make sure voltage is present in the terminal blocks. For Three-Phase models pay special attention to Neutral Cable. 2 — M A I N T E N A N C E M O D E Pull outward the Tamper Switch located in the lower half of the Charge Point. - Page 20 URBAN ELECTRICAL DATA URBAN MASTER - URBAN SLAVE M2-C1 T2-C2 1P+N+PE 3P+N+PE 1P+N+PE 3P+N+PE Power supply Input voltage 230V~±10% 400V~±10% 230V~±10% 400V~±10% Input current 32 A Frequency 50Hz / 60Hz Number of sockets 7.4 kW 22 kW 7.4 kW 22 kW Maximum socket Power Maximum Socket current 32 A...
-
Page 21: Technical Data
URBAN Technical Data T22-C T24-MIX Charging Mode 3 Mode 3 Mode 1. 2 & 3 Mode Min. cable 10 mm 25 mm cross-sec- tion MCB 40A / 16 A Overcurrent MCB 40A (Curve C) MCB 40A (Curve C) (Curve C) (socket A &... - Page 22 URBAN MECHANICAL DATA IP54 / IK10 Enclosure rating Aluminium & ABS Enclosure material Frontal key locked door Enclosure door Net weight 55Kg Dimensions (W x H x D) 450 x 1550 x 290 mm STANDARDS IEC 61851-1: 2010, IEC 61851-22: 2001, IEC 62196-1: 2014, IEC 62196-2: 2011, 2014/35/UE, LVD;2014/30/ UE, ISO 14443A/B This is the minimum cable section recommended for the maximum AC input current, the final section must be calculated by a qualified technician taking into account the specific conditions of installation.
-
Page 23: Need Help
URBAN Need help? In case of any query in relation to unit operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 (Spain) / +34 937 452 919 (outside of Spain) email: sat@circutor.com... - Page 24 CIRCUTOR, SA. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www. circutor.com central@circutor.com...
