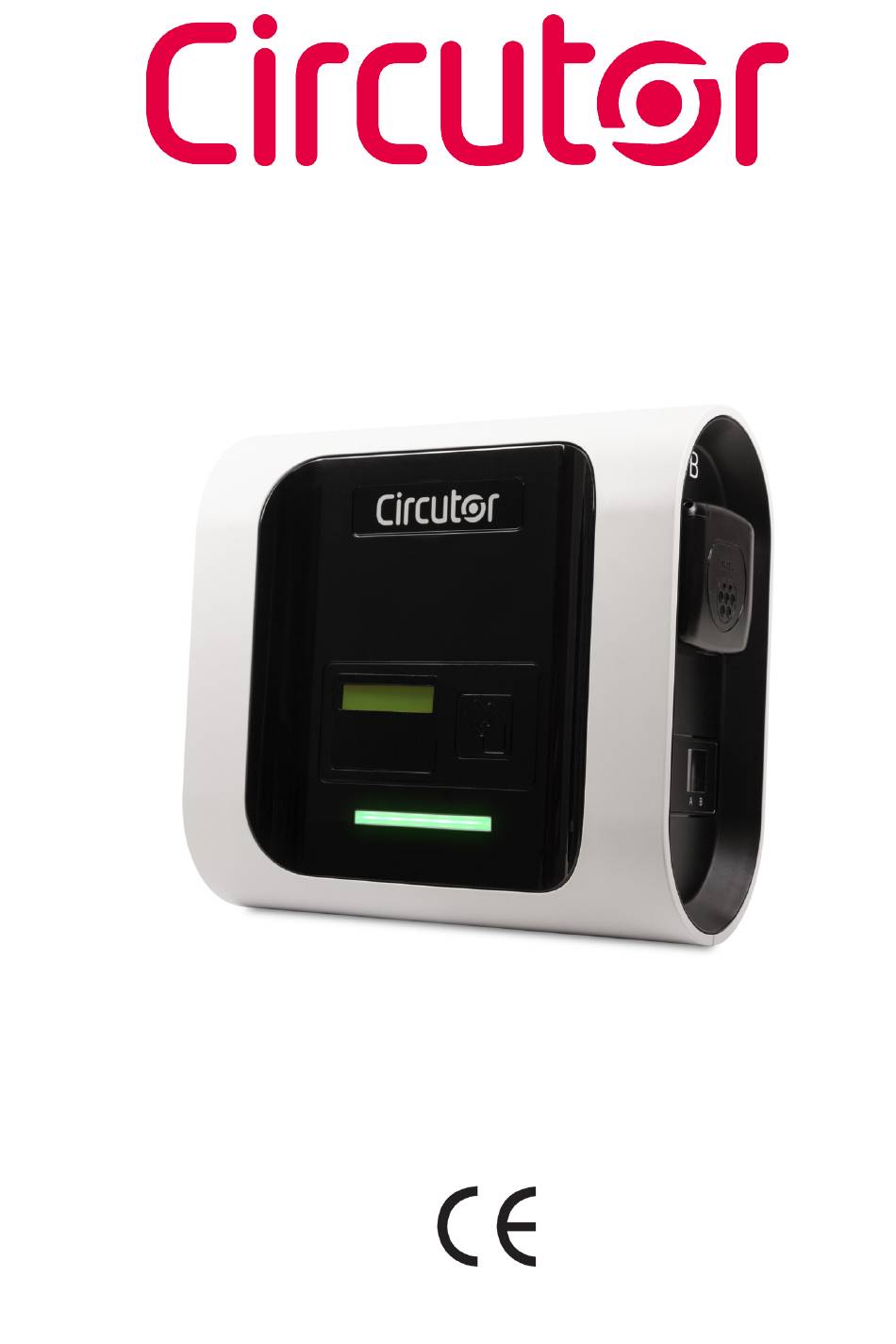

- Page 1 Wallbox ePark INSTALLATION GUIDE (M262A01-03-19B)
-
Page 2: Disclaimer
CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifi- cations set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the de- vice specifications and the most updated manuals. -
Page 3: Installation Guide
C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2019 by Circutor, S.A. All rights are reserved. Circutor, S.A. reserves the right to make improvements to the products described in this manual at any time without notice. -
Page 4: Table Of Contents
Wallbox ePark Here’s your guide to install ePark. Disclaimer ..............................2 Revision log..............................2 Here’s your guide to install ePark......................4 1.-So,hello!..............................5 2.-Before the installation...........................6 3.- Overview..............................8 4.- Dimensions............................10 5.- Installation............................12 A. Requirements.............................13 B. Opening..............................14 C. Positioning............................15 D. Fixing..............................16 E. Wiring..............................17 F. Closing..............................19 6.- Technical Data............................22 Need help?......................... -
Page 5: So,Hello
Wallbox ePark So, hello! This manual provides commissioning information about Wallbox ePark, which has been designed and tested to allow electric vehicle charging, specified in IEC 61851. This document has different sections such as step-by-step installation procedure and technical data. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT SAFETY INFORMATION IN THIS DOCUMENT ELECTRIC RISK... - Page 6 (broken plugs, caps that don’t close...). • Do modify this unit. modified, CIRCUTOR will reject all • Use only CIRCUTOR supplied spare responsibility and the warranty will parts. be void. • Do not use this product if the • Comply strictly...
-
Page 7: Before The Installation
Wallbox ePark Before the installation E L E C T R I C A L W I R I N G C O N S I D E R AT I O N S Take into consideration this section before start wiring connections of the charge point. - Page 8 Wallbox ePark What’ s included: Installation Guide Charge Point Installation Guide Allen wrench 2.5 mm Installation guide...
-
Page 9: Overview
Wallbox ePark Overview 1 — LED beacon 4 — Wall support holes 7 — RFID reader 2 — Cable glands 5 — Closing box holes 3 — Plugs 6 — LCD Installation guide... - Page 10 Wallbox ePark Measures in mm Installation guide...
-
Page 11: Dimensions
Wallbox ePark Dimensions 62.5 52.5 52.5 62.5 39.5 20.5 This measurement may vary. Installation guide... - Page 12 Wallbox ePark Material: • Allen wrench of 2,5 mm is included in the installation kit. Screws, sealing washers and plastic anchors are not included. • • The fastening system of the Charge Point has been designed to be installed on a wall. »...
-
Page 13: Installation
Installation Requirements • Please comply with your country regulations. The Charge Point shall be installed on a wall or on CIRCUTOR accessories. • • When installing the unit, some space shall be reserved for usability, maintenance and safety reasons. The picture below shows the recommended minimum... -
Page 14: Opening
Wallbox ePark Opening Open the Wallbox using allen wrench. 2.5mm Allen wrench Use the ratchet tool to open/close the change point wall fixed Installation guide... -
Page 15: Positioning
Wallbox ePark Remove PCB plastic support to connect the ethernet and put the screw into the wall. PCB plastic support methacrylate screws Wall RJ45 Screw Positioning Drill the wall. Drill bit M 6/8 1100 Measures in mm Installation guide... -
Page 16: Fixing
Wallbox ePark Fixing Place de unit on the previously leaky points and fix it by the screws Installation guide... -
Page 17: Wiring
Wallbox ePark Wiring Use provided cable glands in order to mantain the IP protection Cable glands M32 • The current of the power supply can be limited. In order to perform this adjustment please refer to the Instruction Manual. • The IEC-61851-1 ed 3 standard indicates that each plug shall have protections. - Page 18 Wallbox ePark SINGLE-PHASE CHARGE POINT THREE-PHASE CHARGE POINT Connect to the 230V~. • Connect to the 400V~. • • If the Power Supply is Single-Phase, connect L1 and N. CONNECTORS CONNECTORS Protections Protections Protections Terminal block maximum cross-section: 10 mm Do not forget to connect the ground cable to the ground terminal Type of cable allowed by the terminal block: Copper Make sure all screws are securely tightened at 4...5 Nm...
-
Page 19: Closing
Wallbox ePark Closing C l o s e t h e C h a r g e P o i n t a s p e r t h e f o l l o w i n g s t e p s o f v e r i f i c a t i o n a n d o p e r a t i o n . 1 —... - Page 20 Wallbox ePark 8 — S E C U R E C L O S U R E • Tighten the screws crosswise in the sequence shown below. • As a guideline, the recommended assembly torque is 0.8-1Nm. 9 — O P E R AT I O N Check that no abnormal noise appears while the unit is charging.
- Page 21 Wallbox ePark Installation guide...
- Page 22 Wallbox ePark ELECTRICAL DATA ePark ePark ePark ePark MODEL ePark M T2S32 M-MIX-E T T2S32 T-MIX-E 1P+N+PE 1P+N+PE 1P+N+PE 3P+N+PE 3P+N+PE Power supply 230V~±10% 230V~±10% 230V~±10% 400V~±10% 400V~±10% Input voltage 50Hz / 60Hz Frequency Ouput Power 7.4 kW 7.4 kW / 3.6 kW 7.4 kW 22 kW 22 kW / 3.6 kW...
-
Page 23: Technical Data
Wallbox ePark Technical Data CONNECTIVITY Ethernet 10/100BaseTX(TCP-IP) Modem 3G / GPRS / GSM Cellular Interface protocol OCPP 1.5, 1.6 Depending on the model, some components may vary For availability of models, please consult your local supplier This is the minimum cable cross section recommended for the maximum AC input current. The final cross section must be calculated by a qualified technician taking into account the specific conditions of installation Some models cannot include intern protections, at this point, them... - Page 24 Wallbox ePark Installation guide...
-
Page 25: Need Help
Wallbox ePark Need help? In case of any query in relation to unit operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 (Spain) / +34 937 452 919 (outside of Spain) email: sat@circutor.com... - Page 26 CIRCUTOR, SA. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www. circutor.com central@circutor.com...
