CyberData SIP Paging Adapter Connecting page 5

Bogen PCM2000 Zone Paging System with New PCMTIM to SIP Paging Adapter
The IP Endpoint Company
Bogen PCM2000 Application Configuration
PCM
TIM
Notes
Before connecting your CyberData product, power off PCM2000 system. Set the dip switch settings
per the above diagram (CC switch down, P/P switch middle)
When using contact closure, enable Activate Relay on Local Audio on the Device tab of the Paging
Adapter's web interface. Click Save and Reboot for the change to take effect.
When using a Bogen ZPM Module for single analog Page ALL scenario, enable Send pre‐configured
DTMF for Analog Zone on the Paging Adapter's Device tab then use the Zone field to place the
analog zone number. Click Save and Reboot for the change to take effect. End result ‐> dial Paging
Adapter's extension then the device will automatically choose your single Page ALL zone.
When using a Bogen ZPM Module for analog multi‐zone scenario, enable Manual DTMF Entry for
Analog Zone on the Paging Adapter's Device tab. Click Save and Reboot for the change to take
effect. End result ‐> dial Paging Adapter's extension, a menu will prompt for the analog zone number
followed by #.
T PBX
PAGING
PORT
R
CONTACT
CLOSURE
TRUNK/PAGE PORT
6 - Not used
5 - Contact Closure
4 - Dry audio (T)
3 - Dry audio (R)
2 - Contact Closure
1 - Not used
930671D

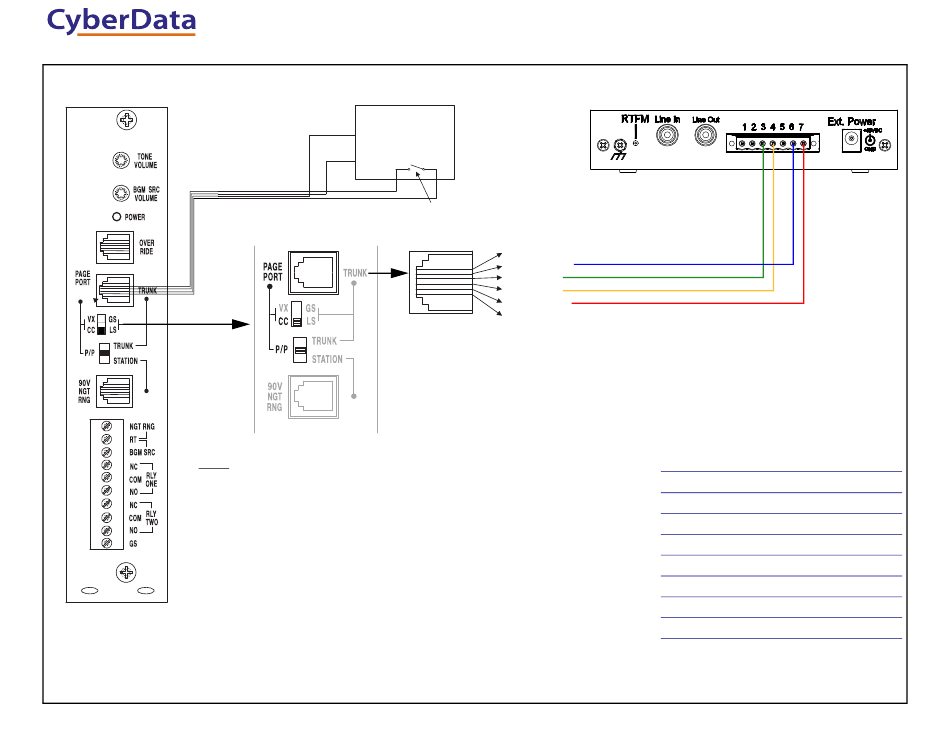

Connections—Contact Closure Configuration
SIP Paging Adapter Connections
+ -
s
Page Port Output Connections
Pin Description
1 Fault Sense Input (Common).
2 Fault Sense Input (Sense).
3 Positive 600-Ohm Audio Output
4 Negative 600-Ohm Audio Output
5 Audio Ground Reference.
6 Relay Contact - Common
7 Relay Contact - Normally Open
a.The 600-Ohm audio output of the page port is
also suited for interfaces with lower input
impedances.
b.1 Amp at 30 VDC for continuous loads.
- +
a
a
b
b
