CyberData SIP Paging Server Connecting page 6

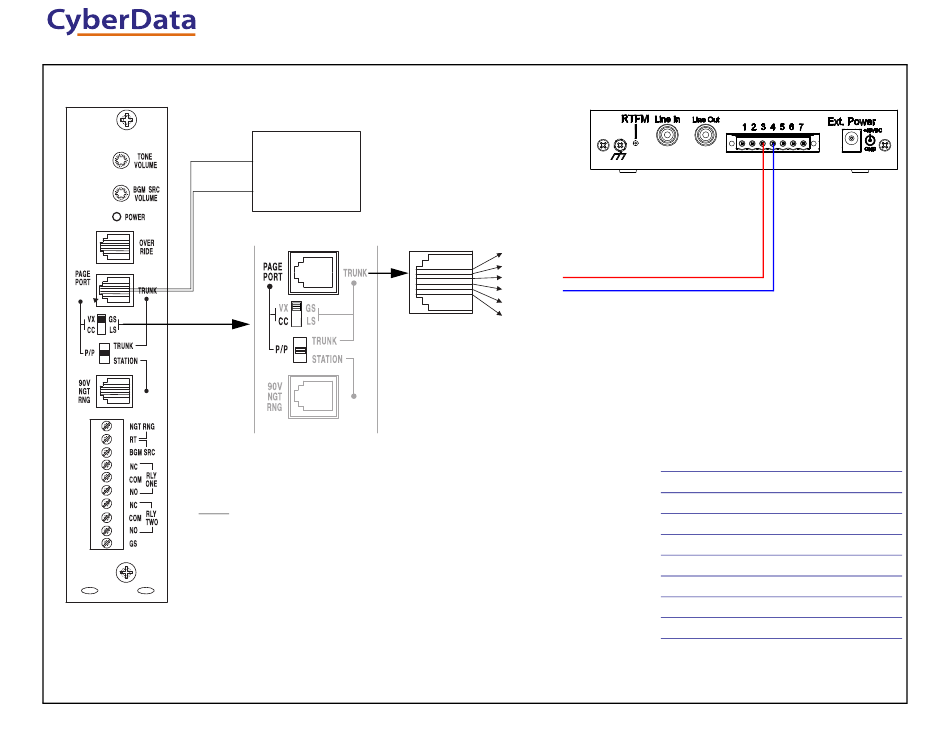

Bogen PCM2000 Zone Paging System with New PCMTIM to SIP Paging Server Connections
The IP Endpoint Company
Bogen PCM2000 Application Configuration
PCM
TIM
Notes
Before connecting your CyberData product, power off PCM2000 system. Set the dip switch settings
per the above diagram. (VX switch, P/P switch middle)
When using a Bogen ZPM Module for a single analog Page ALL scenario or multi‐zone scenario, the
CyberData Paging Server must have Bypass DTMF disabled (Web Interface>Device tab>Misc
Settings).
The CyberData Paging Server can pass DTMF tones through the connected terminals however when
dialing the extension, a menu prompt will be heard for our internal multicast page groups then
silence. It is required to enter your analog zone number followed by # during this silence. End result
‐> dial Paging Server, enter 00 during audible menu prompt, a page tone will be heard through the
handset then enter analog zone number followed by #. (e.g. x123, 00, 01#)
T PBX
PAGING
PORT
R
TRUNK/PAGE PORT
SIP Paging Server Connections
6 - Not used
5 - Contact Closure
4 - Dry audio (T)
3 - Dry audio (R)
2 - Contact Closure
1 - Not used
931023B
—VOX Configuration
+ - - +
s
Page Port Output Connections
Pin Description
1 Fault Sense Input (Common).
2 Fault Sense Input (Sense).
3 Positive 600-Ohm Audio Output
4 Negative 600-Ohm Audio Output
5 Audio Ground Reference.
b
6 Relay Contact - Common
7 Relay Contact - Normally Open
a.The 600-Ohm audio output of the page port is
also suited for interfaces with lower input
impedances.
b.1 Amp at 30 VDC for continuous loads.
a
a
b
