CyberData SIP Paging Server Connecting page 3

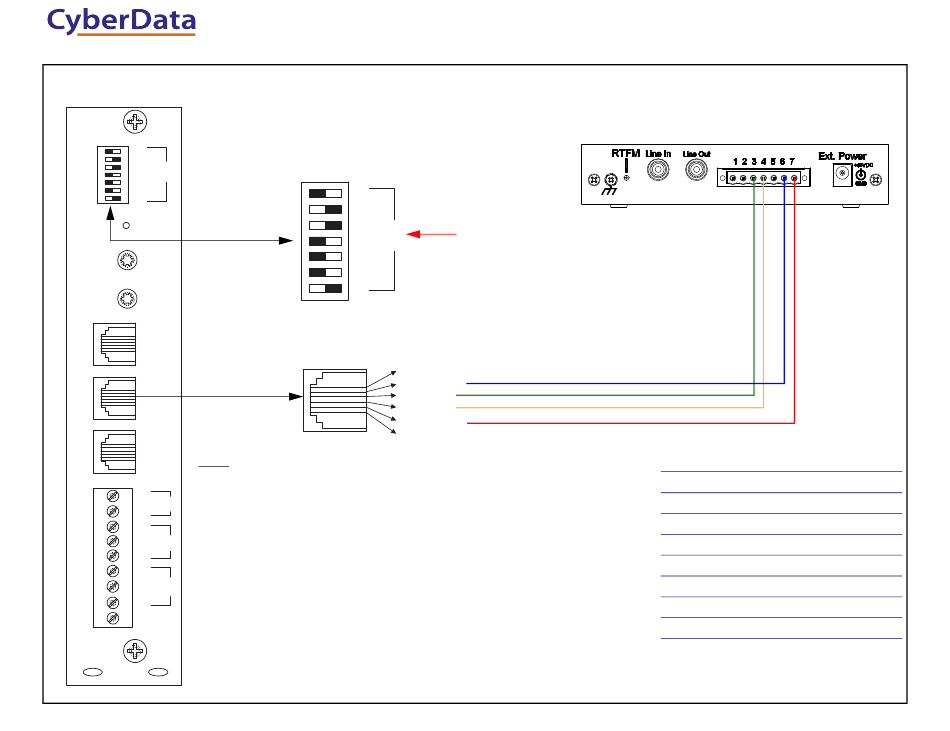

Bogen PCM2000 Zone Paging System with Old PCMTIM to SIP Paging Server
The IP Endpoint Company
Bogen PCM2000 Application Configuration
PCM
TIM
S1
S2
TEL
S3
INT
S4
SEL
S5
S6
S7
0 1
POWER
TONE
VOLUME
BGM SRC
VOLUME
NIGHT
RING
TEL
LINE
OVER
RIDE
Notes
Before connecting your CyberData product, power off PCM2000 system.
Set the dip switch settings per the above diagram. (S2, S3 and S7 to the right)
IN
BGM
SRC
RT
Enable Activate Relay on Local Audio on the Device tab of the Paging Server's web interface. Click
NC
RLY on Save and Reboot for the change to take effect.
COM
ONE
NO
NC
When using a Bogen ZPM Module for a single analog Page ALL scenario or multi‐zone scenario, the
RLY
COM
CyberData Paging Server must have Bypass DTMF disabled (Web Interface>Device tab>Misc
TWO
Settings).
NO
GND ST
The CyberData Paging Server can pass DTMF tones through the connected terminals however when
dialing the extension, a menu prompt will be heard for our internal multicast page groups then
silence. It is required to enter your analog zone number followed by # during this silence. End result
‐> dial Paging Server, enter 00 during audible menu prompt, a page tone will be heard through the
handset then enter analog zone number followed by #. (e.g. x123, 00, 01#)
S1
S2
Power off PCM system to set dip switches S2, S3
S3 TEL
INT
and S7 to the right and S1, S4, S5 and S6 to the left
S4
SEL
S5
S6
S7
0 1
TEL LINE
6 - Not used
5 - Contact Closure
4 - Dry audio (T)
3 - Dry audio (R)
2 - Contact Closure
1 - Not used
931023B
Connections—Contact Closure Configuration
SIP Paging Server Connections
+ -
s
Page Port Output Connections
Pin Description
1 Fault Sense Input (Common).
2 Fault Sense Input (Sense).
3 Positive 600-Ohm Audio Output
4 Negative 600-Ohm Audio Output
5 Audio Ground Reference.
6 Relay Contact - Common
7 Relay Contact - Normally Open
a.The 600-Ohm audio output of the page port is
also suited for interfaces with lower input
impedances.
b.1 Amp at 30 VDC for continuous loads.
+
-
