Ack-V2 - NTI ENVIROMUX Series Wiring Instruction Manual

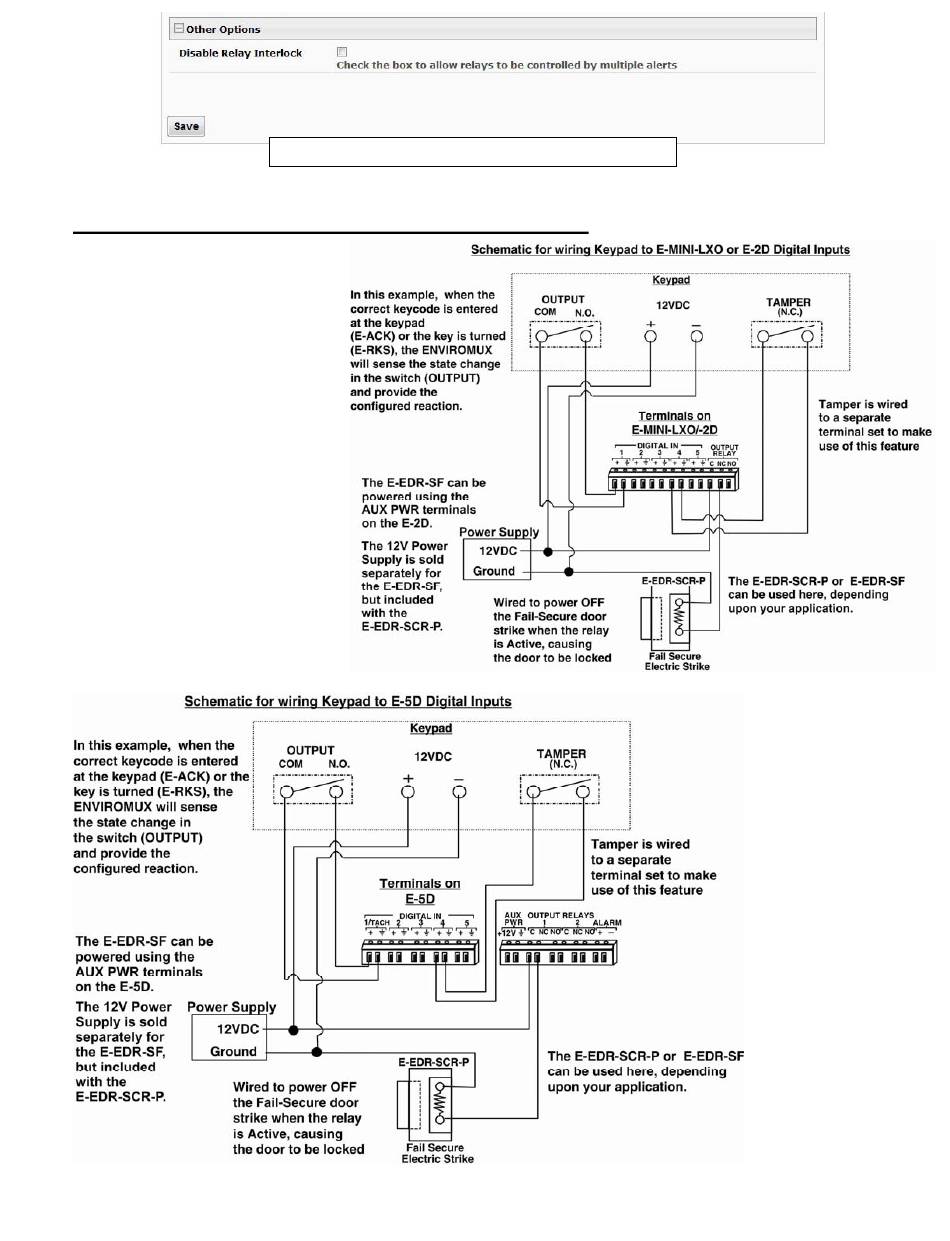

Uncheck the Disable Relay Interlock under System menu
Wiring Connections for E-MINI-LXO/ E-2D / E-5D
The E-MINI-LXO, E-2D and E-5D will
also provide sensing and switching
functions for the E-RKS,E-ACK(-V2),
E-EDR-SF, or E-EDR-SCR-P.
An example of how these components
can be connected can be seen here.
When sold for use with the E-MINI-LXO,
E-2D or E-5D, the model numbers
include a "P" and are shipped with a
12V power supply.
5
