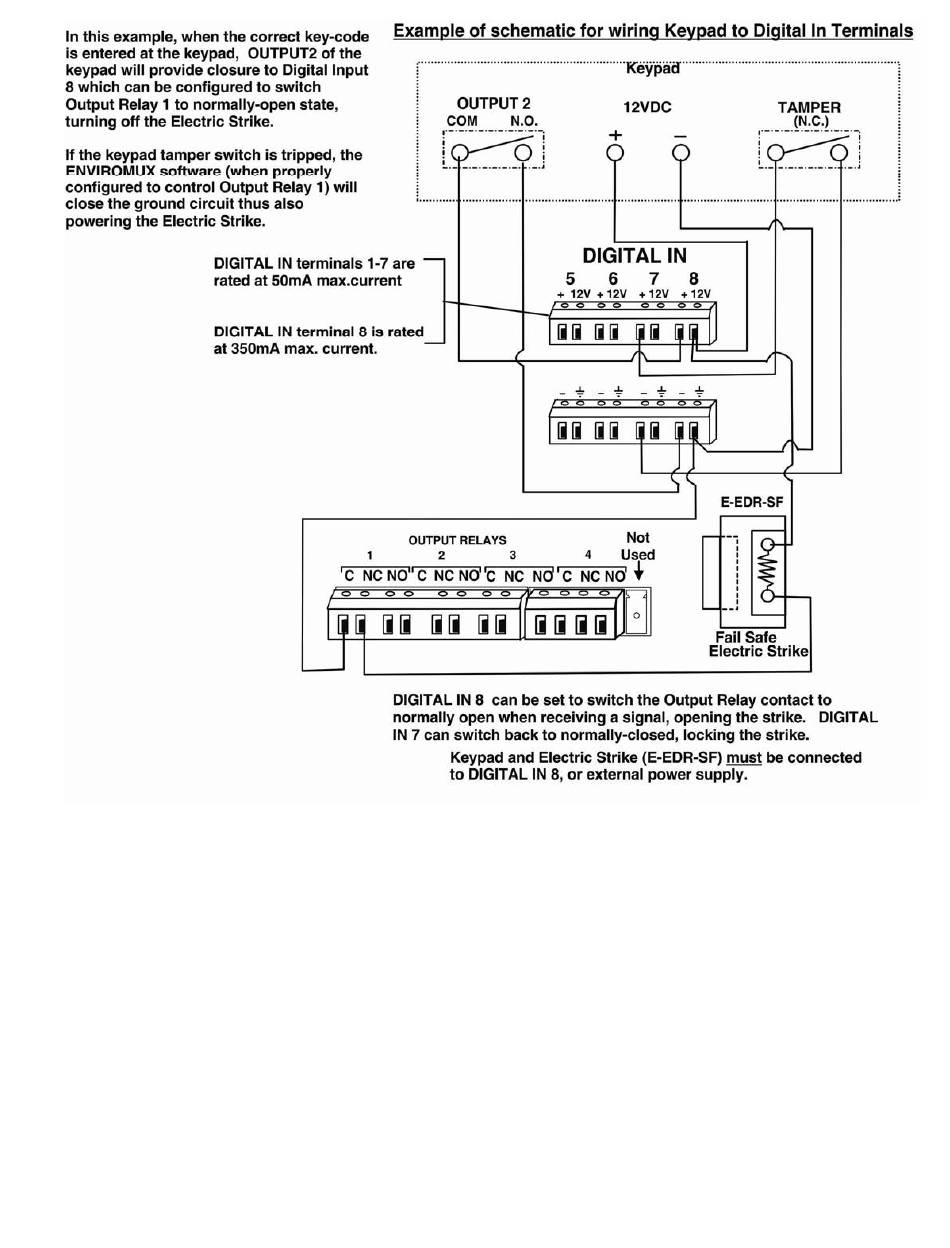

In the wiring example above, using an Output Relay and with the ENVIROMUX properly configured, tampering with the keypad would

automatically lock the Strike and only the administrator would be able to unlock it by either acknowledging the alert or by manually

changing the Output Relay state in the web interface.

The only other way to power OFF the strike would be to power OFF the

ENVIROMUX and wait for the backup battery to fully discharge.
