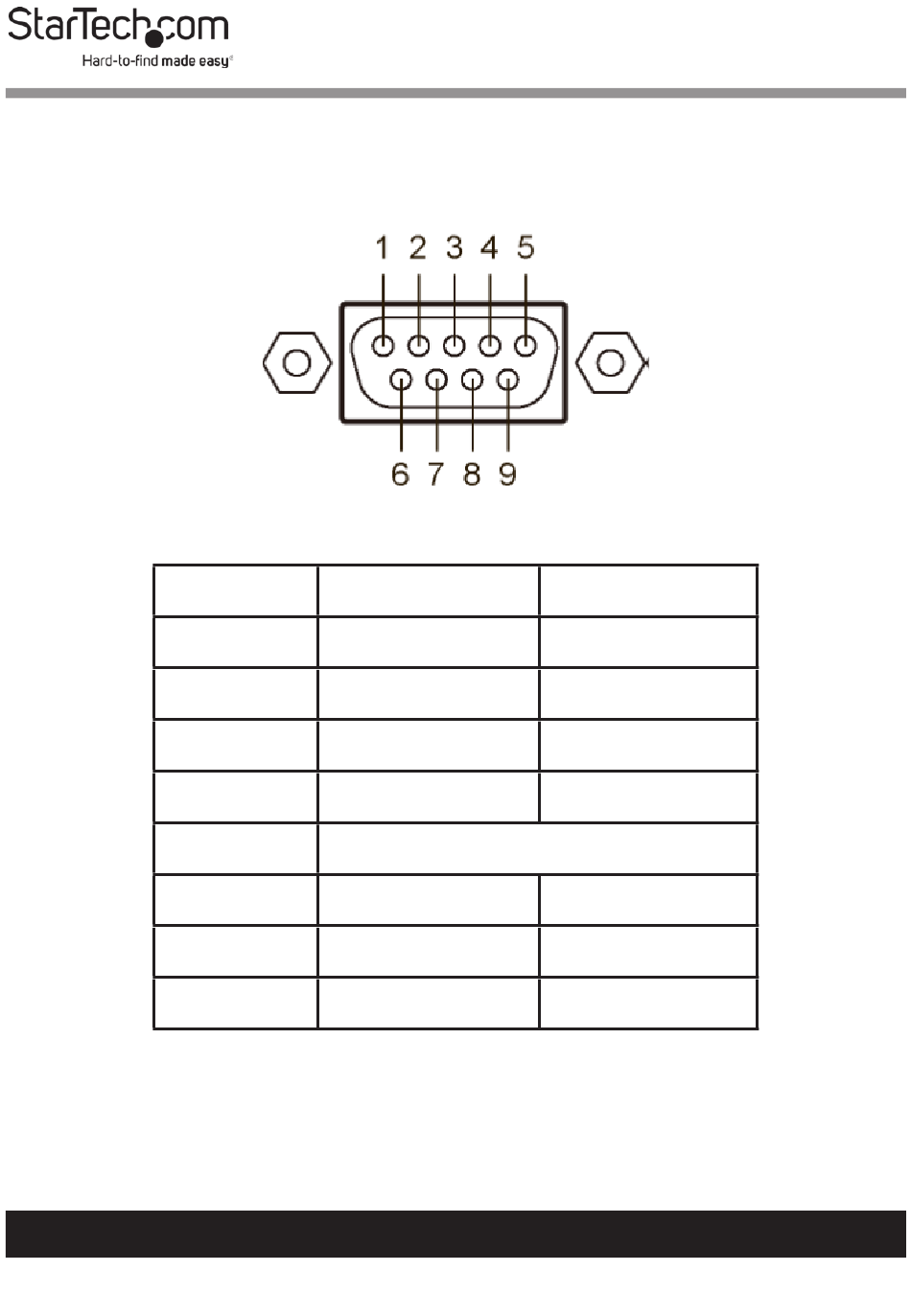

RS-232 DB9 Pin Assignment

NOTE: This serial device server performs as a DTE device.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Pin
1
2
3
4
5
6
7
8
Name
DCD
RD
TD
DTR
GND
DSR
RTS
CTS
8
IO
Input
Input
Output
Output
Input
Output
Input
