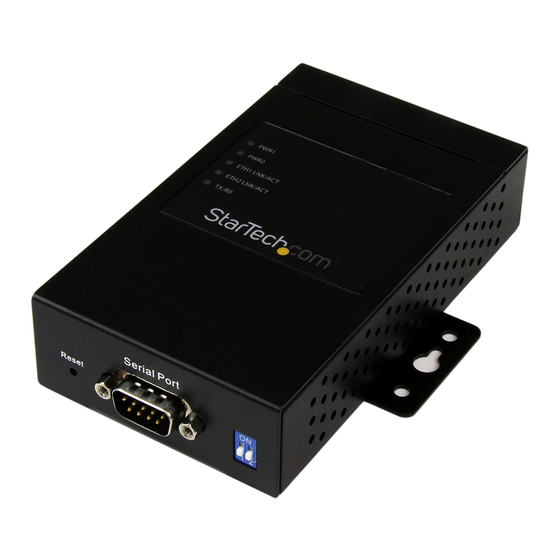

Industrial 1 Port RS232/422/485 to Dual
Ethernet Serial Device Server
NETRS232485
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/07/2015
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com NETRS232485
Summary of Contents for StarTech.com NETRS232485
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/07/2015...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Side 1 ................................1 Side 2 ................................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 DB-9 Connector Pinout .................3 DIP Switch Configuration ..............3 Installation ....................4 Hardware Installation ..........................4 Software Installation .......................... -
Page 4: Product Diagram
Product Diagram Front View 1. LED for PWR1 2. LED for PWR2 3. LED for Ethernet Port 1 4. LED for Ethernet Port 2 5. LED for Serial Port Side 1 1. Terminal Block PWR1 (12~48V DC) 2. Power Jack PWR2 (12~48V DC) 3. -
Page 5: Introduction
Introduction Packaging Contents • 1x Serial over IP Device Server • 1x DIN-Rail Kit • 1x Wall-Mount Kit • 1x Software CD • 1x Installation Guide System Requirements • Windows® 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000, Windows® Server 2012, 2008 R2, 2003(32/64). Instruction Manual... -
Page 6: Db-9 Connector Pinout
DB-9 Connector Pinout DIP Switch Configuration DIP 1 DIP 2 Termination Configuration Termination for long distance 4-wire RS485/422 Reserved Termination for long distance 2-wire RS485 No termination for RS485/ 422 (short distance) Instruction Manual... -
Page 7: Installation
Installation Hardware Installation The server can be installed on a DIN rail or it can be wall-mounted. Installation on a DIN-Rail: 1. Tilt the unit, making sure that the metal spring located at the back is positioned on top of the DIN rail. 2. -
Page 8: Operation
Operation Using the DS-Tool 1. Start the DS-Tool, and click Install this driver software anyway. 2. Allow access to the DS-Tool on the Windows Firewall. 3. Once the utility opens, click the Broadcast button to detect the device server. The default IP address of the device is 192.168.10.2. -
Page 9: Using The Logging Feature
To add a virtual COM port, please use the VCOM Wizard and follow the steps. Using the Logging Feature To use the device server’s Logging Feature within the DS-Tool, follow the steps below: 1. In the navigation menu on the left side of the window, under Device List, click the IP address for the applicable connected device. - Page 10 4. The log data is displayed in the DS-Tool, under Log Message. Instruction Manual...
-
Page 11: Specifications
Specifications Interface Serial Ports IICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, Supported Protocols DNS, SNMP MIB II, HTTPS, SSH 1x DB-9 male, 2x RJ-45 Connectors 1x DC Power 1x 3pin Terminal Block LED Indicator(s) 2x Ethernet Link, PWR1,PWR2, Serial Supported Serial Protocols RS232/422/485 Ethernet Link Speed 10/100 Mbps... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
