6U 19in Wall Mount Server Rack Cabinet
Product ID
RK619WALL

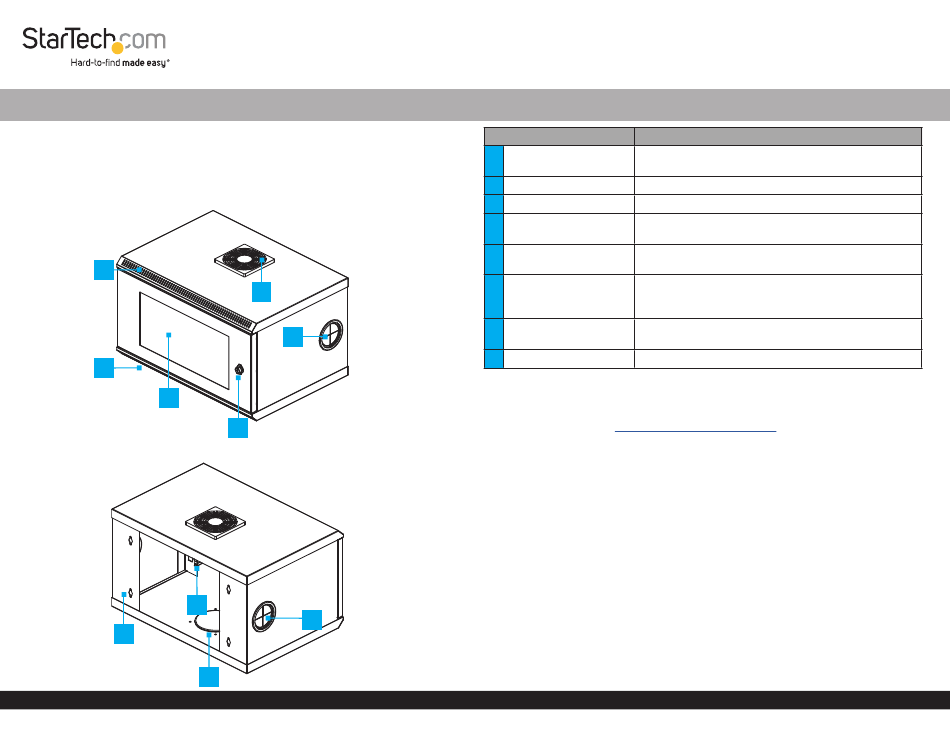

Product Diagram
Front - Angled View
3
3
1
Rear - Angled View
8
6
7
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
4
5
2
5
*Product may vary from image
Component
• Enables monitoring of the Mounted Equipment at
1
Window Area
a glance
2
Door Lock
• Locks the Door using the included Keys
3
Top and Bottom Vents
• Vented panel to promote airflow
• Top-mounted 120mm Fan helps to regulate the
4
Cooling Fan
temperature of the Mounted Equipment
• Removable pre-installed cover. Enables convenient
5
Cable Routing Holes
passage for cables
• Used to fasten the Wall-Mounted Rack onto a wall
6
Wall-Mounting Holes
• Horizontal distance between the Wall-Mounting
Holes is 16 in (40.6 cm)
• Removable pre-installed cover. Enables installation
7
Secondary Fan Hole
of 120mm Fan (not included)
8
• For mounting 19in Rack Equipment
Mounting Posts
Product Information
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
www.StarTech.com/RK619WALL
Requirements
• Phillips Head Screwdriver
• Mounting Hardware (not included)
• Spirit/Bubble Level
• (Optional) Wrench
• (Optional) Cage Nut Tool
How to Identify the LOT Code Revision Number
The Revision Number (Rev #) appears as the fifth and sixth digits of the LOT code,
located on the sticker affixed to the product and its packaging. If the LOT code sticker
is missing, the product is Rev 01.
Quick-Start Guide
Function
Manual Revision: August 29, 2023 9:24 AM
