- Page 1 1 Port RS232 Serial over IP Device Server Actual product may vary from photos User Manual SKU#: NETRS232 For the latest information and specifications visit www.startech.com/NETRS232 Manual Revision: 05/16/2019...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Safety Statements
• Montering av kabelavslutningar får inte göras när produkten och/eller elledningarna är strömförda. • Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 4: Table Of Contents
System Requirements ..........................7 Hardware Installation ................8 DIN-Rail Bracket ............................8 DIN-Rail Mounting ............................ 8 Connecting to Terminal Block Power ....................9 Software Installation ................9 Operation ..............................10 Specifications ..................14 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 5: Product Diagram

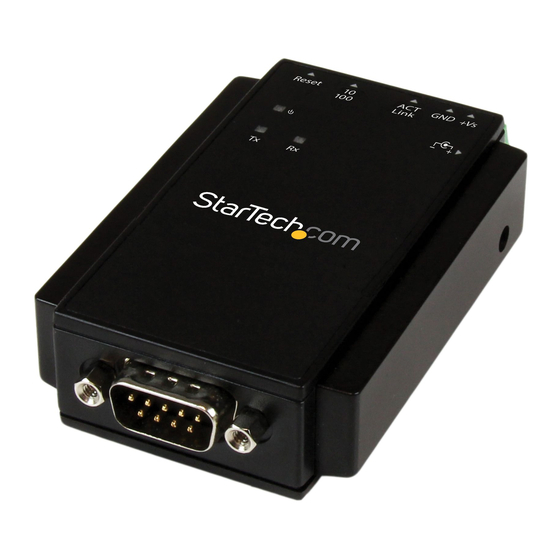

Product Diagram Front View DB-9 Serial Port Transmit LED Power LED Receive LED Power Jack (10-30V DC) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 6: Rear View
Rear View Terminal Block (10-30V DC) RJ45 Port To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 7: Db-9 Serial Port Pinout
Pin 1 Pin 6 Pin 2 Pin 7 Pin 3 Pin 8 Pin 4 Pin 9 Pin 5 RJ45 Port Pinout Pin 1 Pin 3 Pin 2 Pin 6 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Product Information
Windows® 8, 8.1, 7, Vista, XP, 2000, Windows® Server 2012, • 2008 R2, 2003 or Linux (The included software does not support Linux. To emulate a local COM port Linux users would need to use Telnet.). To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Hardware Installation
Tilt the Device Server, making sure that the Metal Spring located at the back is positioned on top of the DIN-Rail. Push the Device Server towards the DIN-Rail, until it clicks. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Connecting To Terminal Block Power
Note: Alternatively, you can also use a Crossover Cable to connect the Device Server directly to your system for the initial configuration. Insert the provided CD into your DVD/CD-ROM drive. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Operation
VCOM and WinPcap software. Operation Start the software by launching the VCOM shortcut. Click the Search button in the VCOM screen to locate the device. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 12 Click the Search Button Note: If required, allow access to the software through the Windows Firewall by clicking the Allow access button. Windows Firewall screen To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 13 In the Input Attributes screen, enter the following: Account Name: admin • Password: 00000 • Input Attributes screen When the device is connected, the Configure Dialog screen will open to set your desired IP settings. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 14 Configure Dialog screen When your settings have been customized, click the OK button at the bottom of the screen. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 15: Specifications
None, Even, Odd, Space, Mark Remote Management Ability Serial Protocols RS-232 Stop Bits 1, 2, 1.5 Telnet, VCOM, TCP Server, Supported Protocols TCP Client, UDP, HTTP,DHCP, ICMP(PING), Static IP, ARP To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 16: Power Input
Humidity 0~90% RH Product Weight 2.29 oz (65 g) Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista(32/64), Compatible XP(32/64), 2000, Windows® Operating Systems Server 2012, 2008 R2, 2003(32/64) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 17: Warranty Information
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 18 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
