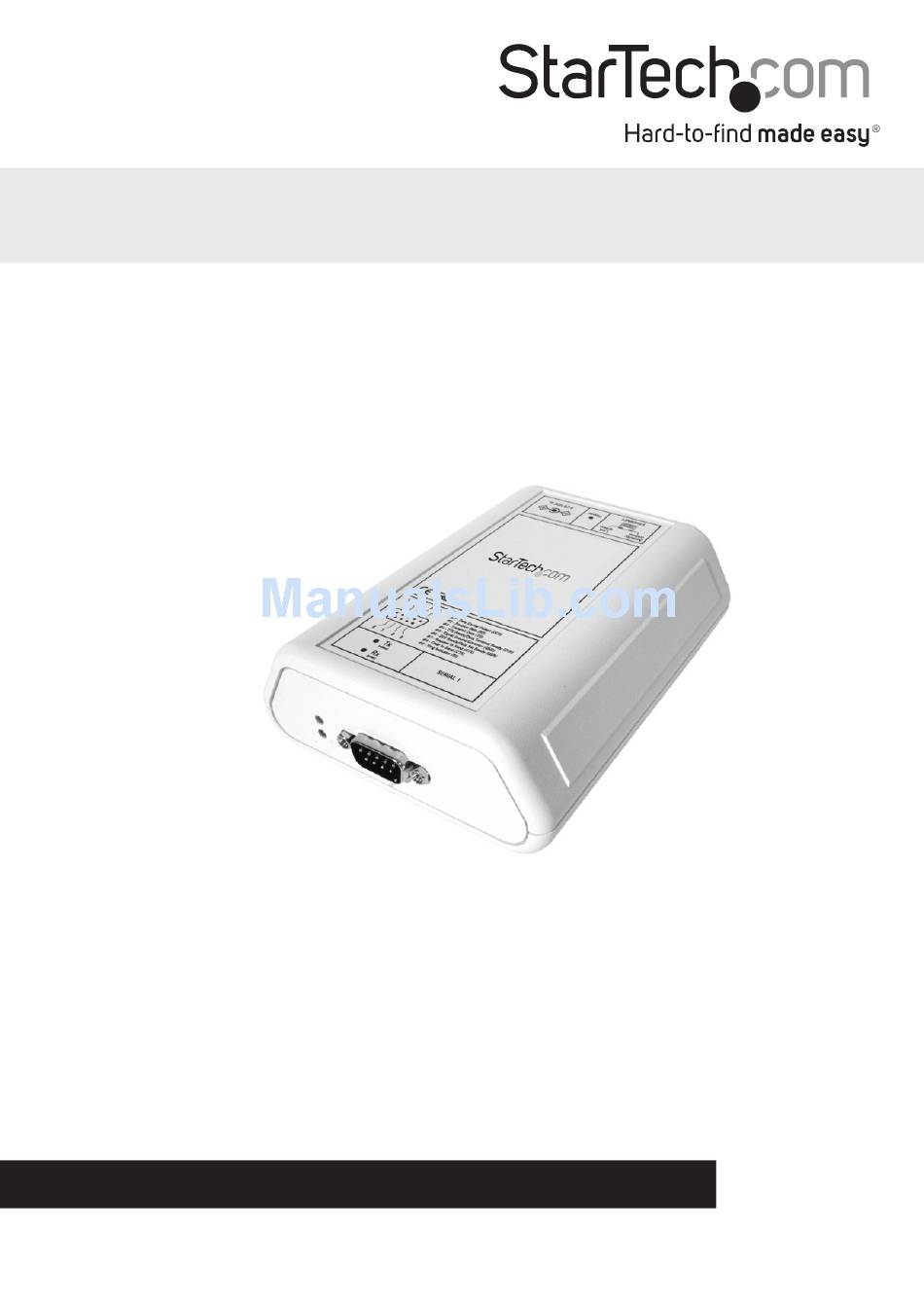

1/2/4/8 Port RS232 Serial over IP
Ethernet Device Server
NETRS232_1
NETRS232_1GB
NETRS232_2
NETRS232_2GB
NETRS232_4
NETRS232_1EU
NETRS232_4GB
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/17/2014
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com NETRS232_1
Summary of Contents for StarTech.com NETRS232_1
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 09/17/2014...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Hardware Guide ..................2 Hardware Installation ................3 Software Installation ................3 Configuring the Network Settings ............4 Configuring Network Settings Using IP Extender Manager ............4 Configuring Network Settings Using a Web Browser ..............5 Activating and Deactivating NETRS232 Ports................. -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com Ethernet Remote Serial interface converter. With this one, two, or four port converter, your RS-232 serial devices can be placed anywhere on your Ethernet WAN/LAN and still perform as if they were right beside you. -
Page 5: Hardware Guide
Hardware Guide Serial Port Serial Rx LED Serial Tx LED Power LED DC Power Port Network LEDs RJ-45 Port Instruction Manual... -
Page 6: Hardware Installation
Hardware Installation 1. Plug the power adapter into the Power port on the converter and plug the other end into an available power source. The red Power LED onthe converter should now be illuminated. 2. Connect the converter to your network by doing one of the following: •... -
Page 7: Configuring The Network Settings
Configuring the Network Settings The IP Extender Manager software displays information in a format similar to Windows Explorer. Any NETRS232 devices on your network are displayed in the “IP Extenders Near Me” branch of the “My IP Extender Network” tree. Each NETRS232 device on your network will need a unique IP address. -
Page 8: Configuring Network Settings Using A Web Browser
Configuring Network Settings Using a Web Browser The NETRS232 converter contains an embedded web server that allows you to configure your device’s network settings through your web browser. To configure an NETRS232’s network settings using a web browser, open your web browser and enter the device’s IP address in the browser’s address bar. - Page 9 6. Configure the device. The following network and port settings for the device can be configured in a Telnet session: Device settings (for the interface converter device): • IP address • Net mask • Gateway • NetBios name (Device Name) •...
-
Page 10: Activating And Deactivating Netrs232 Ports
Activating and Deactivating NETRS232 Ports NETRS232 ports that have been detected as existing on the network are not initially activated for your PC. To access a serial port, you must first activate it. You can activate a port on one computer, some computers, all computers, or none of the computers on your network. - Page 11 There are two icons that depict the state of the NETRS232_x ports and devices: Icon with green square: Icon: Under “My Computer, ” this icon Device available on the network. means the port is available. Icon with red X: Under “My IP Extender Device not available on the network.
-
Page 12: Advanced Settings
Advanced Settings Ports that have been activated on your PC can generally be used without any further configuration. There are, however, additional configuration options available through the IP Extender Manager. Port Modes The interface converter converts serial port data to and from TCP/IP packets over Ethernet. -
Page 13: Virtual Port (Driver) Settings
Virtual port (driver) settings The virtual port allows a serial port on an NETRS232 device to be used in same manner as a local serial port when the port is configured in Windows Mode (described above). In this state, the driver for the virtual port converts local serial port accesses into TCP/ IP packets to be exchanged with NETRS232 port. - Page 14 To prevent this difficulty, NETRS232 Links have a “discovery” mode that allows the correct NETRS232 Link port to be found even when the IP address of the associated box has changed. To use this discovery mode, a “port binding” must be created for that virtual port.
-
Page 15: Virtual Port Com Number Assignment
Binding to IP Address The IP address of a network device is assigned by either the system administrator or through a DHCP server. Binding a virtual port to an IP address will force that virtual port to attempt a connection to any device with that particular IP address only. -
Page 16: Wan Activation
WAN Activation Activating and accessing the virtual serial port on a NETRS232 device across a WAN can be done in two different ways, depending on how the NETRS232 device is accessible. • NETRS232 device is accessible externally – is directly accessible on the Internet. •... - Page 17 4. Ensure that the port(s) to use WAN activation on are configured for “Driver Mode”. 5. Record the TCP port number of the port(s) to be accessible. 6. With the IP address and TCP port number(s) of the NETRS232 device in mind, enable port forwarding on your gateway/router for each port to be made remotely accessible.
-
Page 18: Specifications
Storage Temperature -20°C to 90°C (-4°F to 194°F) Humidity 0~90% RH NETRS232_1: 130.0mm x 95.0mm x 44.0mm Dimensions NETRS232_2: 130.0mm x 95.0mm x 44.0mm NETRS232_4: 130.0mm x 95.0mm x 44.0mm Windows® 8 / 8.1 (32/64bit), 7 (32/64), XP (32), 2000 (32)<br />... -
Page 19: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 20 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
