NOTE: If trim or cylinder are
Step #4
not being used, skip this step.

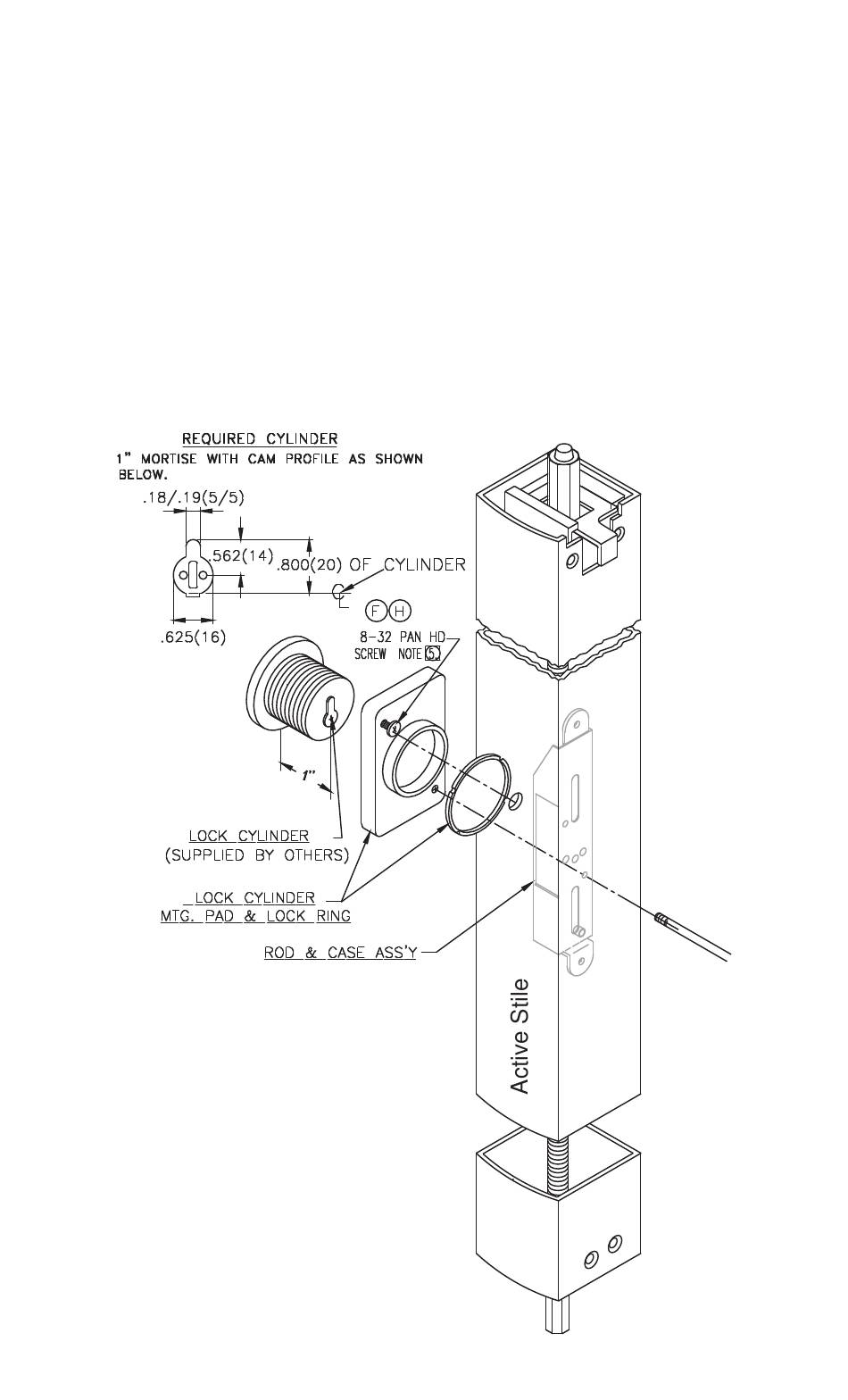

Install Trim and Cylinder.
Install one 8-32 pan head screw partially to suit nominal wall thickness of 1/8" or 3/16"
Install pad assembly and rotate clockwise until it locks into position. Install single
8-32 x 1-15/16" screw and tighten.
NOTE:
Use 8-32x5/16 pan head on 1/8" wall thickness
Use 8-32x5/3/8 pan head on 3/16" wall thickness
