- Remove front and rear end base covers by releasing 6-32x3/16(5) & 12-24x1-1/4(32) fillister head
screw through chassis and one 8-32x1-1/4 head machine screw, secure inactive end with single
1/4-20x1/2(13) round head machine screw (phil.) with semsthrough inactive base plate.
- Using the wire access hole as a guide, drill a 3/8" hole into the inactive stile to allow for wire
access.
- Proceed by re-installing base cover on each end of panic base.

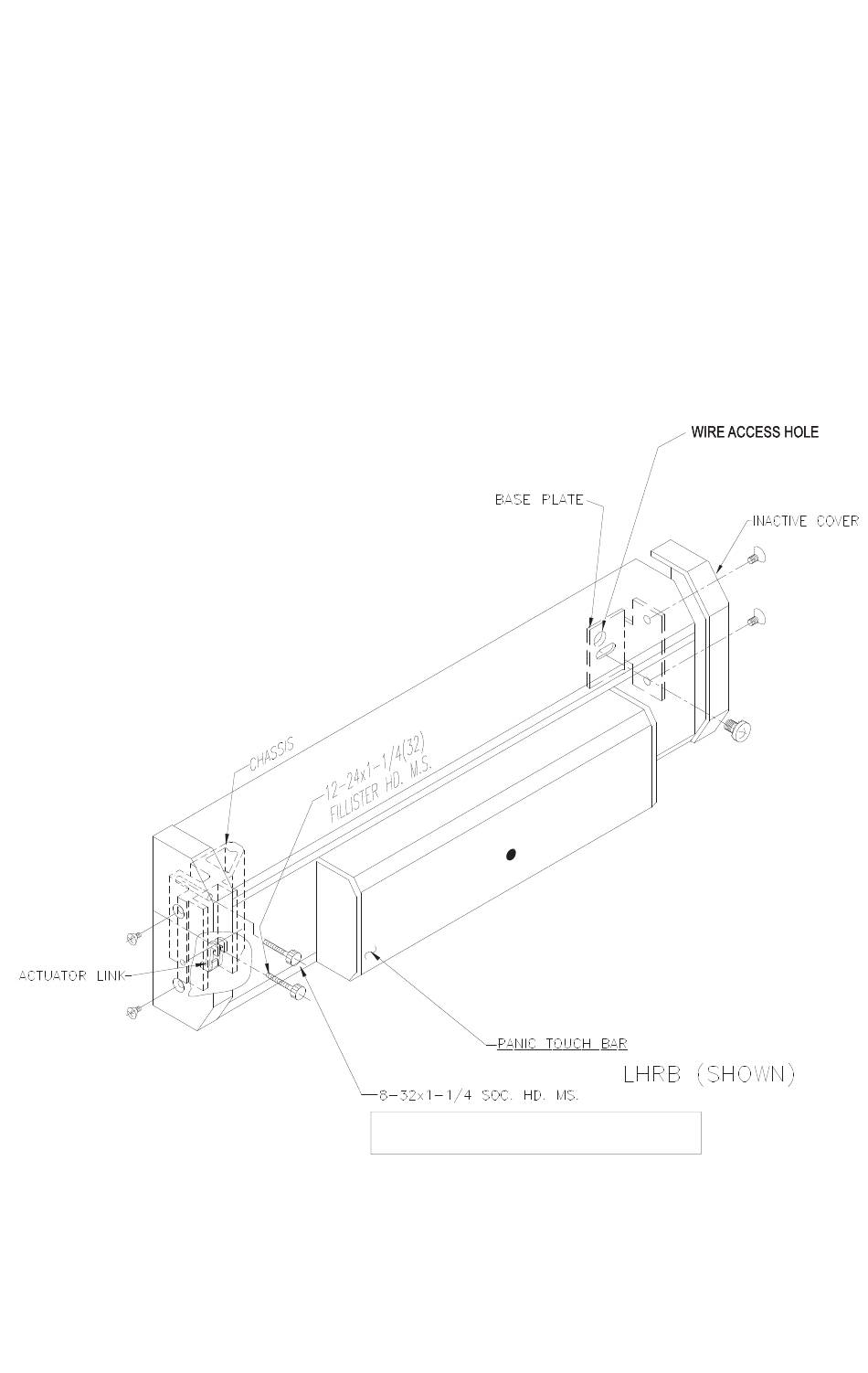

Step #5
Panic Attachment.
NOTE: or for heaver wall extrusion
use 8-32 x 1 3/8 SOC HD MS
