4.6.2 Trigger source

Manual: An immediate trigger is created by pressing (Shift)+ Trigger on the front
( )
panel.
External(TTL signal): An external trigger is a TTL low signal applied to the trigger
connection on the rear panel.This TTl signal must last for more than 10us.
Bus: The instrument will be triggered if command 5AH is sent via the communication
interface.
Hold: The instrument will be triggered if command 9DH is sent via the communication
interface.

4.7 Transient function

The transient test allows switching between two different load values.A common
application is to test the dynamic characteristics of DC source.
There are three different types of transient operation: continuous, pulse, toggled.

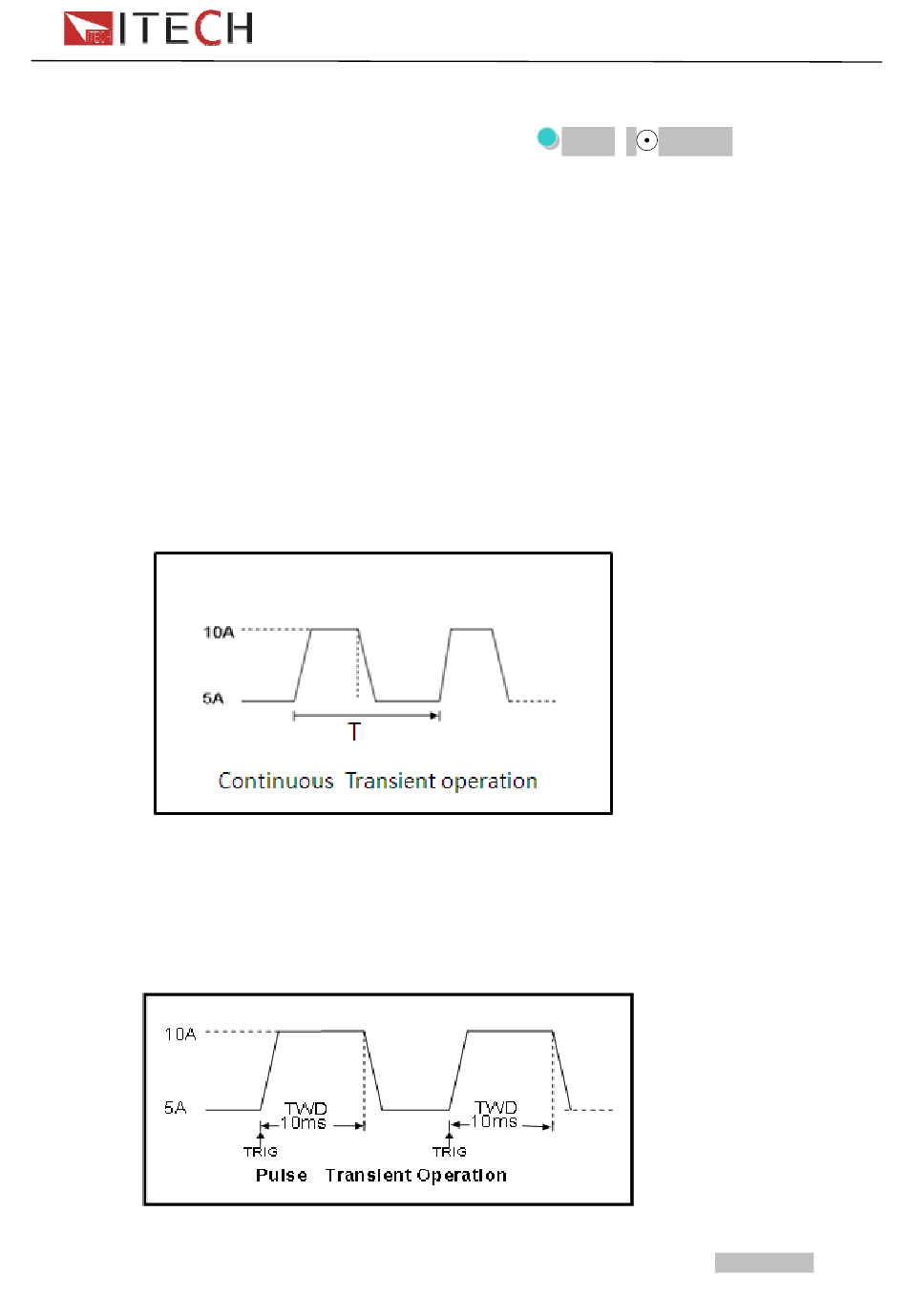

4.7.1 Continuous mode

In continuous transient operation, the load iscontinuously switched between two load
values.An example is shown in the following figure:

4.7.2 Pulse mode

In pulse operatrion,the load operates at the A value that has been entered until a trigger
is received.At the trigger,the load switches to the B value and stays at that level for the B
timing value.Then the load switches back to the A value and stays there until another
trigger is received.
