User's Manual of netMod Network Termination Unit

Short Passive Bus 2

netMod can be connected to the S-bus as shown in the figure below:

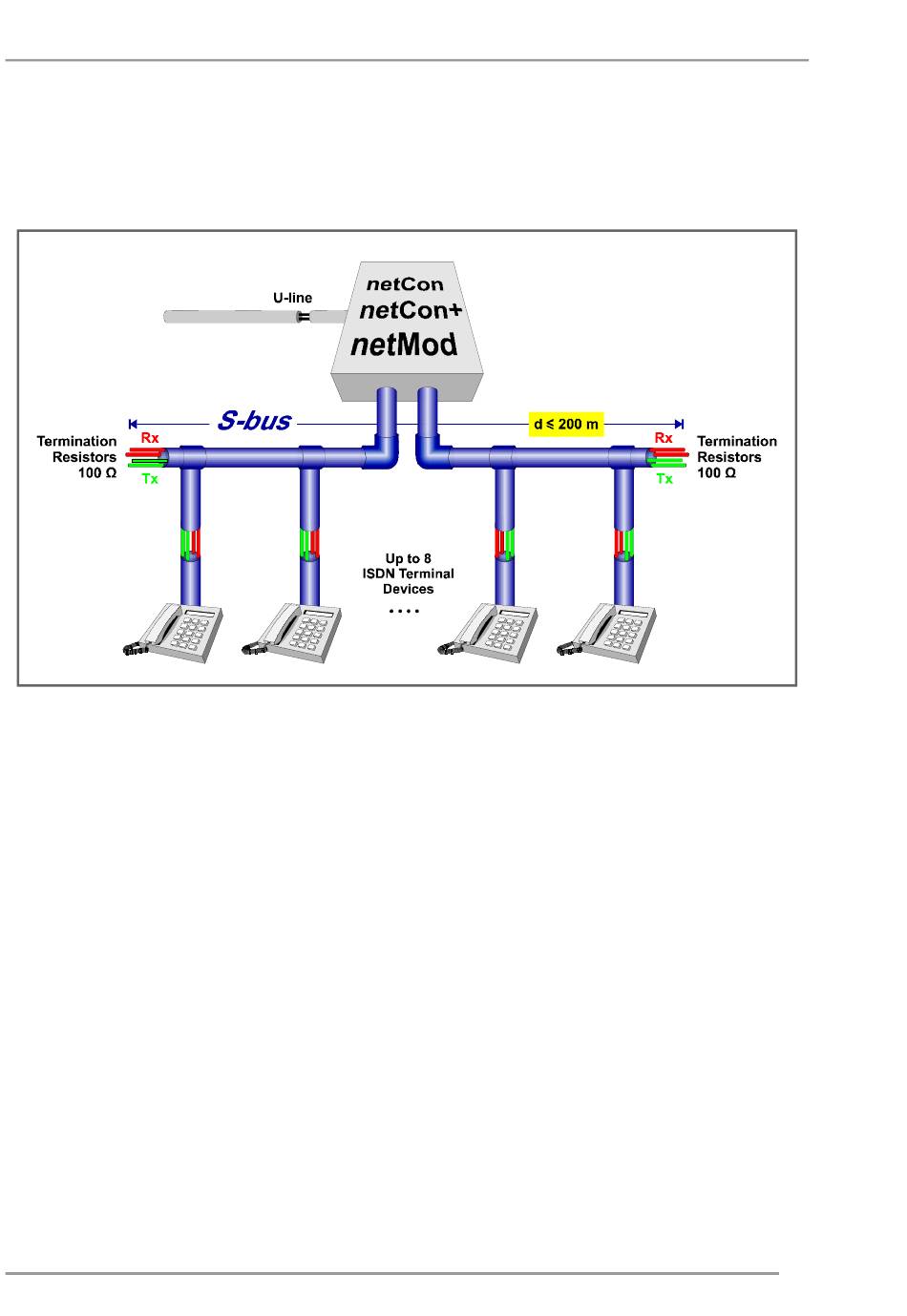

Figure 12: Short passive bus 2 connection

The switches SW1 and SW3 (see Figure 5) must be in position "OFF". The distance of
200m is achieved for a cable of 0.6mm diameter.
Both RJ-45 jacks are used to connect to the S-bus. Each S-bus should be terminated with
two 100 ohm resistors (see Figure 15). Up to 8 terminal devices can be connected
randomly along the S-bus.
