Switch Settings

netMod is equipped with 3 on-board switches, located just behind the front accessible
connectors (see Figure 5). By using these switches, the subscriber can define the desired
settings.
These settings are:
• S-bus configuration
• S-bus termination
• System restart
and are explained in the following table.
Function
S-bus
Termination
System Restart
(Reset)
S-bus
Configuration
(*) default settings

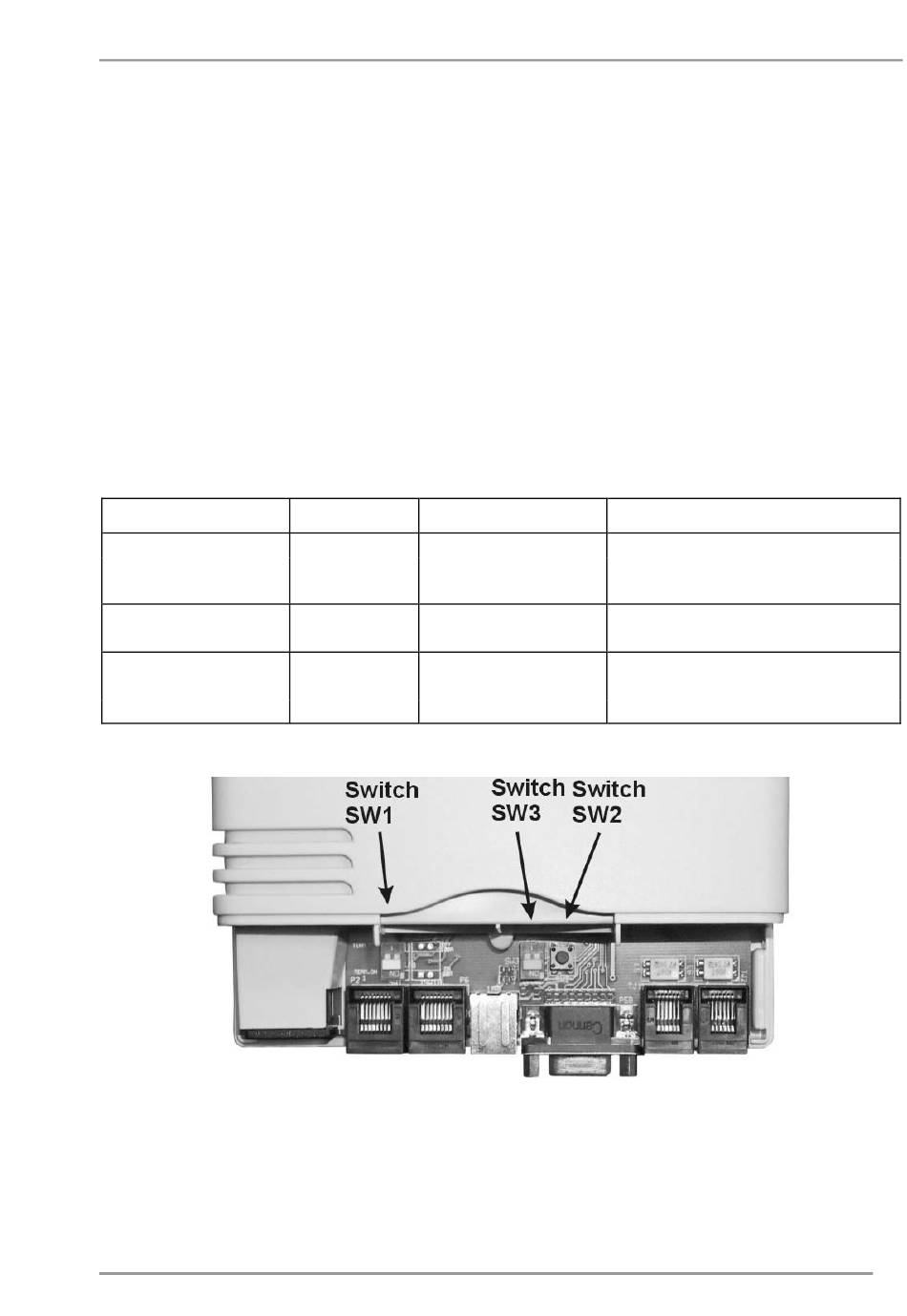

Figure 5: netMod's switch settings on the motherboard card

Switch Position
ON(*)
SW1
OFF
SW2 Push-button
ON(*)
SW3
OFF
13
User's Manual of netMod Network Termination Unit
100 ohm termination
Without termination
Restarts the system
extended bus configuration
short bus configuration
Operation
