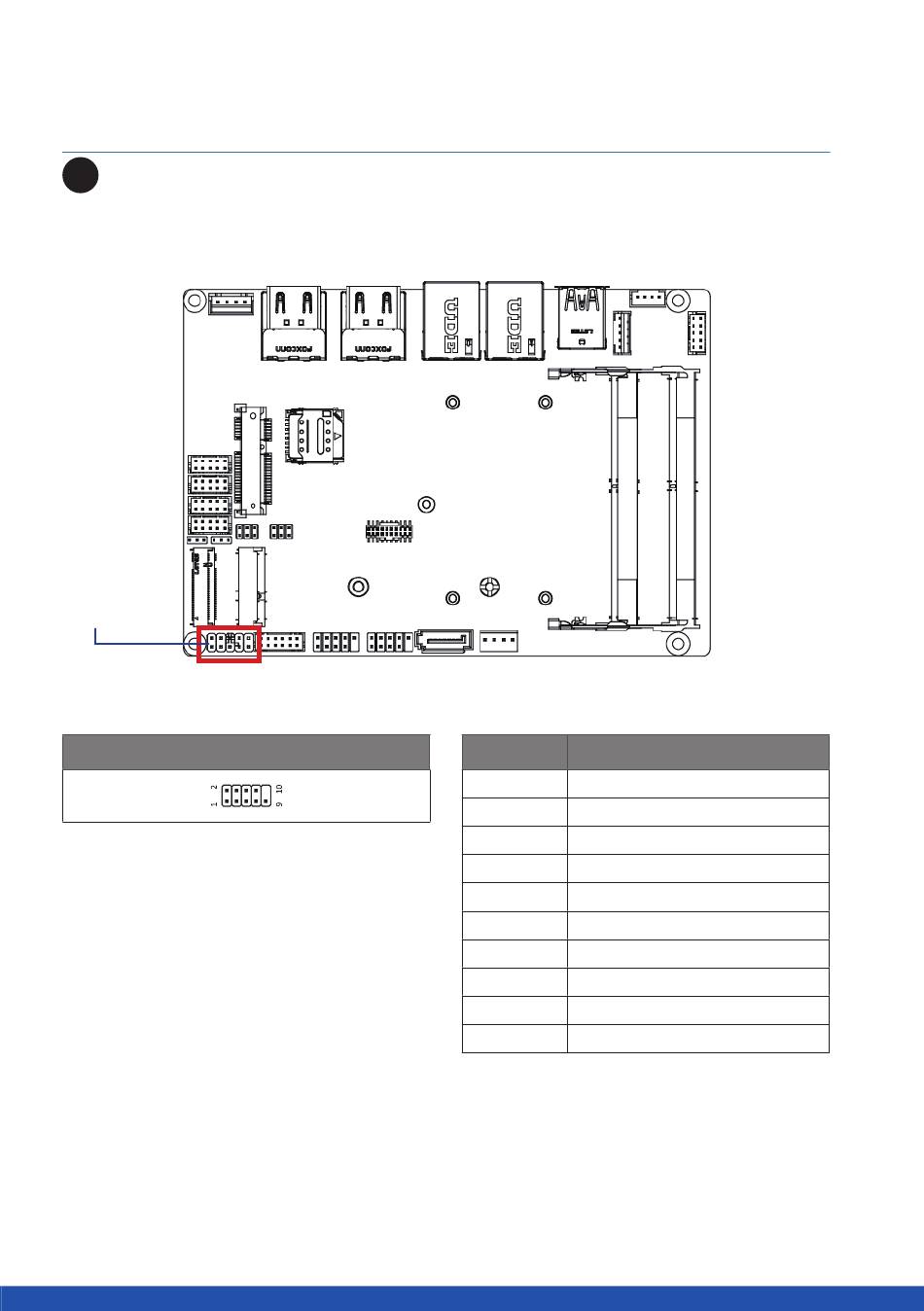

2.2.10 SYS_PANEL (Front panel header)
10
Pin 1
System Panel Header
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Pin No.
Definition
1
HDD LED+
2
Power LED+
3
HDD LED-
4
Power LED-
5
6
Power Button+
7
Reset Button
8
Power Button-
9
No Connect
10
www.gigaipc.com
GND
No Pin
